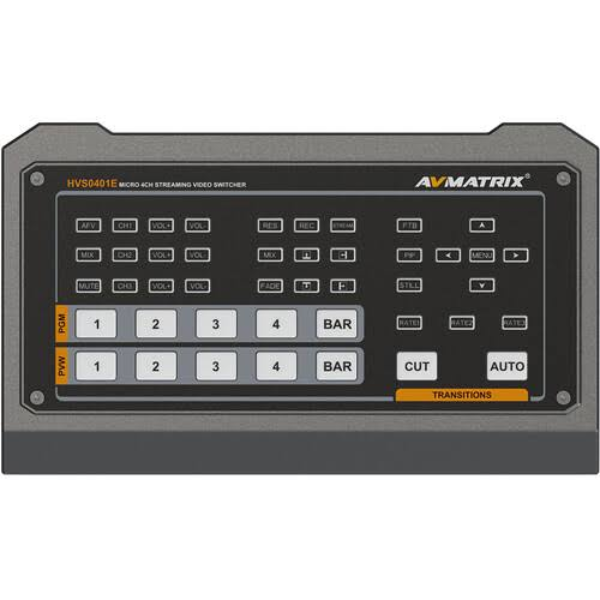

AV MATRIX HVS0401E Multiformat Switcher

The AV MATRIX HVS0401E Micro represents cutting-edge innovation in compact video production equipment. This professional 4-channel multiformat switcher combines broadcast-quality performance with exceptional portability. Content creators, educational institutions, and corporate production teams gain studio-level capabilities in a remarkably compact design that fits any workspace or mobile production kit.

Modern video production demands equipment that adapts to diverse technical requirements. This switcher eliminates workflow bottlenecks while maintaining the highest quality standards. Its intelligent design philosophy prioritizes both functionality and user accessibility across all experience levels.

Comprehensive Input Flexibility

Multiple Format Support and Connectivity

The switcher processes HDMI, SDI, and analog composite signals simultaneously. Connect professional broadcast cameras, consumer devices, legacy equipment, and computer sources without limitation. This universal compatibility protects existing equipment investments while enabling future expansion.

Professional productions require reliable signal handling across varied source types. The device automatically scales inputs to match output resolution. This intelligent processing ensures consistent image quality regardless of source specifications.

According to technical standards established by the International Electrotechnical Commission, multiformat video processing requires precise signal conversion protocols. The HVS0401E implements these standards flawlessly for professional results.

AV MATRIX HVS0401E Broadcast Integration

Native SDI connectivity provides direct integration with professional camera systems. Transmit uncompressed video over extended cable runs without signal degradation. This capability proves essential for large venue installations and outdoor productions.

The embedded audio processing handles up to 8 channels per input. Mix commentary, ambient sound, music beds, and program audio with precision control. Independent level adjustment and monitoring ensure optimal audio balance throughout broadcasts.

Production professionals at Novatech Technologies recognize this switcher as essential infrastructure for multi-camera workflows. The intuitive interface enables rapid content creation without extensive technical training.

Professional Production Features

Advanced Switching and Effects Capabilities

Execute sophisticated transitions including fade, wipe, and cut effects instantly. The T-bar provides tactile control for smooth manual transitions. Automated transition timing ensures consistent pacing across extended productions.

Picture-in-picture functionality supports multiple layout configurations. Position secondary sources anywhere within the frame with independent sizing controls. Create dynamic split-screen presentations for panel discussions and interview formats.

AV MATRIX HVS0401E Graphics Integration

The downstream keyer overlays logos, lower thirds, and graphic elements seamlessly. Maintain brand consistency across all content with stored graphic presets. This professional graphics capability eliminates post-production overlay requirements.

Chromakey processing enables virtual set applications with adjustable tolerance controls. Replace green screen backgrounds with video sources or static images. This feature unlocks creative possibilities for educational content and corporate presentations.

Educational facilities integrate these capabilities with existing monitors to create complete production environments. The switcher serves as the central hub for campus broadcast systems.

Technical Specifications

Video Inputs: 4 x HDMI (1080p60), 3 x 3G-SDI (1080p60), 1 x Composite

Video Outputs: 2 x HDMI (Program/Multiview), 4 x 3G-SDI (Program/Preview/Clean Feed)

Audio Inputs: Embedded HDMI/SDI (8 channels), 2 x Balanced XLR, 2 x Unbalanced RCA

Audio Output: Embedded HDMI/SDI, 1 x Balanced XLR, 1 x 6.35mm Headphone

Resolution Support: 480i through 1080p60, Auto-scaling on all inputs

Control Interface: Front panel buttons, RS-422, RJ45 Ethernet

Power Supply: DC 12V/3A

Dimensions: 220mm x 190mm x 55mm

Weight: 1.2kg

Operating Temperature: 0°C to 40°C

Versatile Application Scenarios

Broadcast television stations utilize this switcher for news production and live event coverage. The SDI infrastructure integrates with existing camera chains and routing systems. Redundant outputs ensure uninterrupted signal distribution to transmission equipment.

Corporate video departments produce internal communications and training content professionally. Combine executive presentations, demonstration cameras, and screen recordings in real-time. The multiview output enables directors to monitor all sources simultaneously.

Live event production companies manage conferences, concerts, and sporting events efficiently. Rugged construction withstands the demands of touring production schedules. Fast setup times minimize venue preparation requirements.

Houses of worship enhance service broadcasts with multiple camera angles and presentation integration. Switch between worship team coverage, sermon delivery, and hymn lyrics seamlessly. The intuitive operation allows volunteer technical teams to achieve professional results.

Research by the Society of Broadcast Engineers demonstrates that production quality directly impacts message retention. This switcher ensures technical excellence that maximizes communication effectiveness.

Why Trust Novatech Technologies

Novatech Technologies delivers comprehensive broadcast solutions throughout East Africa. Our experienced technical staff provide integration planning, installation support, and operator training. We understand the unique challenges facing regional broadcasters and content creators.

Every switcher includes a robust 12-month manufacturer warranty covering components and workmanship. Our authorized service center provides rapid response to technical issues. Genuine replacement parts ensure longevity and consistent performance.

Ongoing technical support includes firmware updates, control software upgrades, and workflow consultation. Our team assists with system design for installations of any scale. From single-room studios to multi-venue broadcast facilities, we provide expertise throughout project lifecycles.

Complementary equipment including desktops and control systems integrate seamlessly with this switcher. Build complete production environments with consistent quality across all components.

Advanced Control and Automation

Remote operation via Ethernet enables centralized control in complex installations. Program switching sequences for recurring productions with automated timing. This capability streamlines technical operations for venues hosting regular events.

The RS-422 protocol provides compatibility with professional broadcast automation systems. Integrate with master control environments and playout servers. This connectivity positions the switcher within enterprise broadcast infrastructure.

Industry standards documented by SMPTE govern professional video signal routing and control protocols. The HVS0401E implements these specifications for maximum compatibility with existing broadcast ecosystems.

System Expansion and Scalability

Connect with existing laptops running graphics software for dynamic title generation. The multiple output options support simultaneous program distribution and technical monitoring. This flexibility accommodates productions of increasing complexity.

The clean feed output provides isolated video without graphics overlays. Record pristine footage while streaming finished productions simultaneously. This professional workflow maximizes content value for post-production editing.
