AV Matrix PVS0615U Switcher: Portable 6-Channel Streaming Solution

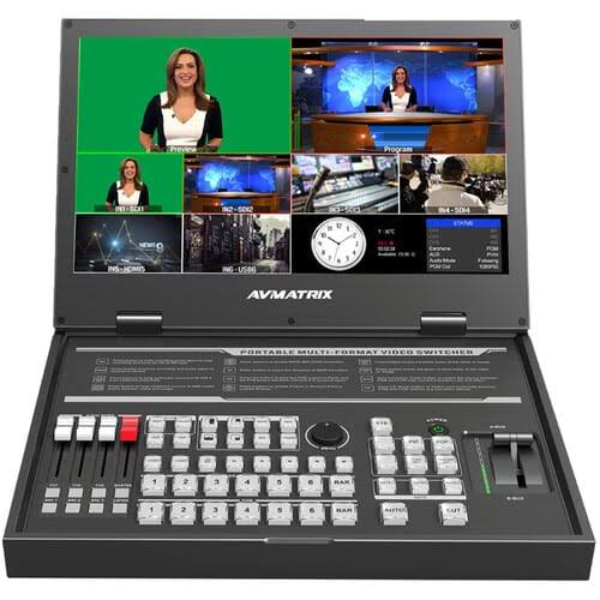

Discover the AV Matrix PVS0615U Switcher, a compact all-in-one video production tool with a 15.6-inch FHD display. This portable unit handles multi-camera switching for live events and streaming. Professionals appreciate its seamless integration of SDI and HDMI sources.

Detailed Use Cases and Compatibility

Live Event Production

The AV Matrix PVS0615U Switcher excels in concerts and parties with six input channels. Event organizers switch between cameras for dynamic coverage. It supports real-time chroma keying for virtual backgrounds during performances.

Broadcasters connect PTZ cameras via SDI for remote control. The multiview display shows all feeds on one screen. This setup reduces setup time at venues.

Educational and Corporate Streaming

Educators use the AV Matrix PVS0615U Switcher for virtual classrooms. It mixes lectures from multiple angles with embedded audio. USB Type-C output streams directly to platforms like Zoom.

Corporate teams deploy it for webinars with HDMI laptops. Compatibility includes consumer cameras and professional mixers. Audio mixing handles microphones and line inputs smoothly.

Sports and Competition Broadcasting

Sports producers equip the AV Matrix PVS0615U Switcher for live games. It captures action from four SDI cameras and two HDMI sources. T-bar transitions create smooth replays.

Compatibility extends to Blackmagic and Sony cameras. The unit records 1080p60 footage to SD cards. GPIO tally lights integrate with team headsets.

Virtual Studio and Content Creation

Content creators build green screen setups with luma key features. The AV Matrix PVS0615U Switcher composites graphics over live feeds. It works with Adobe Premiere for post-editing workflows.

Pair it with USB sources for webcams in hybrid productions. Explore projectors at Novatech for large venue displays. For deeper insights on video standards, refer to SMPTE’s technical guidelines.

AV Matrix PVS0615U Switcher Technical Specifications

Input and Output Capabilities

• Inputs: 4x 3G-SDI (up to 1080p60), 2x HDMI (up to 4K60), 2x DVI-I/VGA/USB Type-A.
• Outputs: 3x SDI PGM/AUX (1080p/i60 scaled), 2x HDMI PGM, 1x HDMI multiview, 1x USB Type-C (UVC/UAC streaming).
• Audio I/O: 2x RCA L/R, embedded SDI/HDMI/USB audio, headphone jack.

This configuration auto-detects formats for mixed-resolution sources. PGM output scales all inputs to 1080p60.

Display and Control Features

• Monitor: 15.6-inch FHD LCD with multiview for six channels plus PVW/PGM.
• Transitions: T-bar, auto, cut; effects include mix, fade, wipe.
• Keying: Luma and chroma key with adjustable parameters.

The built-in recorder supports H.264 up to 1080p60 via SD card. Controls mimic broadcast consoles for intuitive operation.

Processing and Power

• Processing: Frame synchronization for seamless switching, no black frames.
• Power: 12V DC adapter, consumption under 30W.
• Dimensions/Weight: 370 x 250 x 50mm, 3.2kg metal chassis.

Durability suits portable use with rack-mount options. Firmware updates via USB enhance compatibility.

Compatibility Matrix

Supports SD/HD/3G-SDI signals from 270Mbps to 3Gbps. HDMI inputs handle UHD 4K60 from cameras like Canon EOS. USB Type-A ingests media from flash drives.

Integrates with encoders for RTMP streaming. For monitor pairing, see HP’s display solutions. Novatech offers networking gear for IP distribution.
