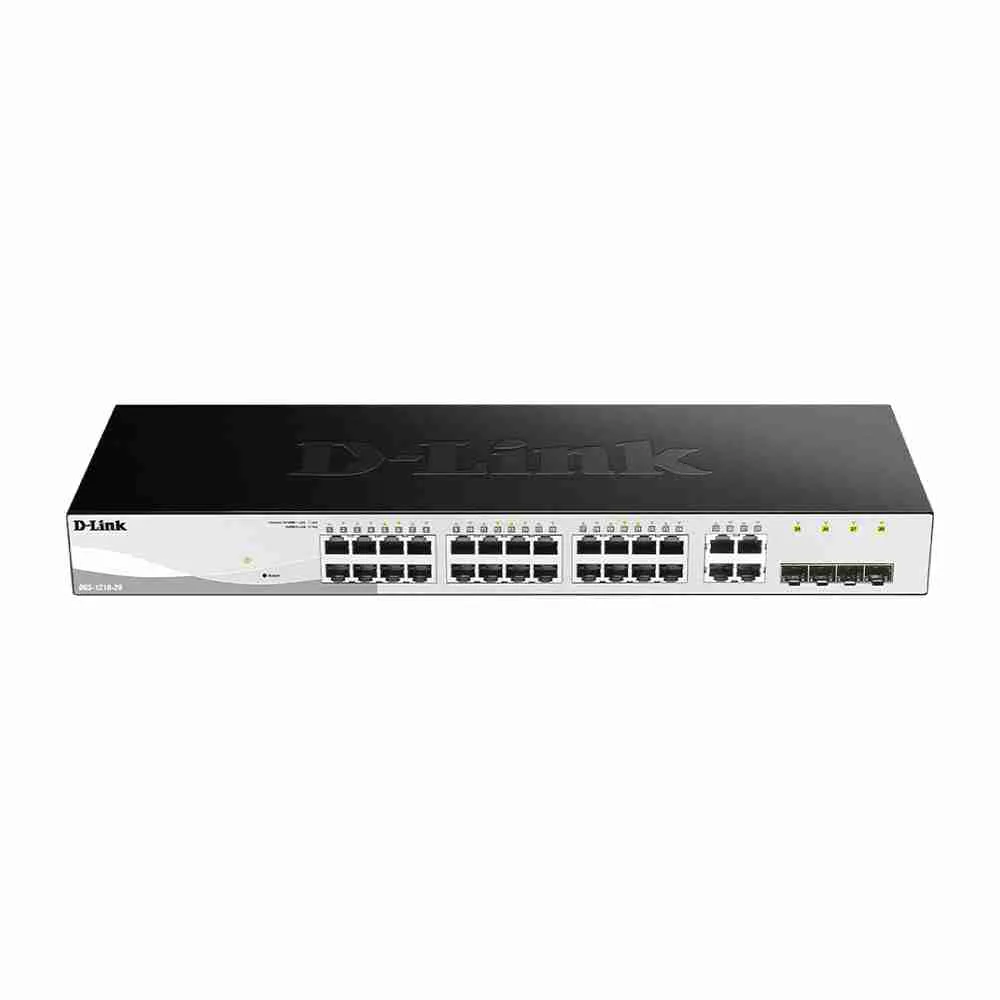

D-link DGS-1210-28P 28-Port Gigabit PoE Switch

The D-Link DGS-1210-28P PoE Switch is a managed, high-capacity solution for medium to large networks. Featuring 24 Gigabit PoE+ ports and 4 SFP slots, it delivers robust power and connectivity with a 370W budget. Available at Novatech Technologies, this switch supports advanced features like VLANs, QoS, and SNMP for secure, efficient deployments in enterprises and surveillance.

Why Choose D-Link DGS-1210-28P PoE Switch?

Enterprise-Grade PoE+ Delivery

The D-Link DGS-1210-28P PoE Switch provides 24 Gigabit Ethernet ports, all PoE+ capable (802.3af/at), offering up to 30W per port with a total budget of 370W. Its 4 SFP slots support fiber uplinks for extended reach. The web-based management interface enables PoE scheduling, VLANs, and QoS, while SNMP and CLI allow advanced monitoring and configuration.

• Extensive PoE Budget: 370W for powering numerous devices.
• Gigabit and Fiber Ports: 24 RJ45 PoE+ and 4 SFP for versatility.
• Managed Capabilities: Web UI for VLANs, QoS, and PoE management.

A limitation is the higher power consumption under full PoE load, requiring stable electrical infrastructure.

Versatile Use Cases for D-Link DGS-1210-28P PoE Switch

Large Surveillance Systems

The DGS-1210-28P excels in surveillance, powering up to 24 PoE+ IP cameras with Gigabit speeds for HD video. Surveillance VLAN isolates traffic, and PD-Alive reboots unresponsive devices. SFP slots connect to core networks. Pair with HP’s Series 5 monitors for centralized monitoring in control rooms.

Enterprise Office Networks

In offices, the switch powers VoIP phones, access points, and thin clients, ensuring reliable Gigabit connectivity. QoS prioritizes voice and video, while VLANs segment networks for security. Its rack-mountable design fits IT closets. Integrate with Ubiquiti’s UniFi solutions for hybrid deployments, optimizing bandwidth.

Campus and Data Center Connectivity

For campuses, the DGS-1210-28P supports PoE+ for wireless APs over long distances, with IGMP Snooping for multicast video. SFP uplinks enable fiber backbones. However, for ultra-high speeds, additional 10G equipment may be needed. Combine with HP’s networking equipment for scalable infrastructure.

Compatibility with Network Devices

The DGS-1210-28P supports IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3az, and 802.3af/at standards, compatible with Gigabit PoE and SFP devices like cameras, phones, and APs. It uses Cat5e/Cat6 cables and auto-negotiates speeds. SFP slots accept standard modules, but verify power requirements to stay within 370W.

Technical Specifications of D-Link DGS-1210-28P PoE Switch

Hardware Overview

• Ports: 24 x 10/100/1000 Mbps RJ45 (PoE+), 4 x 1000 Mbps SFP
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3az, 802.3af/at
• Switching Capacity: 56 Gbps
• MAC Address Table: 16K entries
• Forwarding Rate: 41.7 Mpps
• PoE Budget: 370W total (30W per port)
• PoE Standard: IEEE 802.3af/at
• LED Indicators: Power, Link/Activity, PoE, Speed
• Power Input: 100-240V AC, 50/60 Hz
• Max Power Consumption: 400W
• Dimensions: 17.32 x 8.07 x 1.73 inches (440 x 205 x 44 mm)
• Weight: 9.92 lbs (4.5 kg)
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Operating Humidity: 10% to 90% non-condensing
• Certifications: FCC, CE, RoHS

Package Contents

• DGS-1210-28P PoE Switch
• Power Cord
• Rackmount Kit
• Quick Installation Guide

The 1U rack-mountable metal housing supports standard racks, but ensure ventilation for PoE loads.

Benefits of D-Link DGS-1210-28P PoE Switch

Advanced Network Management

The web interface supports up to 4094 VLANs, 8 QoS queues, and IGMP Snooping for multicast optimization. PoE features include scheduling, power limits, and PD-Alive for monitoring. SNMP v1/v2c/v3 and CLI provide enterprise-level control, with port mirroring for diagnostics.

• VLAN Segmentation: Up to 4094 groups for security.
• QoS Optimization: 8 queues for traffic prioritization.
• Remote Access: SNMP for comprehensive monitoring.

A drawback is the lack of full Layer 3 routing, best for Layer 2 managed networks.

Scalable and Secure Design

The 56 Gbps capacity handles high traffic, with SFP for fiber expansion. Fan operation is low-noise, and the metal case ensures durability. Surge protection safeguards PoE ports, though full budget use requires cooling.

Trust and Support from Novatech Technologies

Purchasing the D-Link DGS-1210-28P PoE Switch from Novatech Technologies ensures a quality product with a limited lifetime warranty against defects. Novatech Technologies offers expert support for setup and management, providing reliable PoE networking for Kenyan customers.
