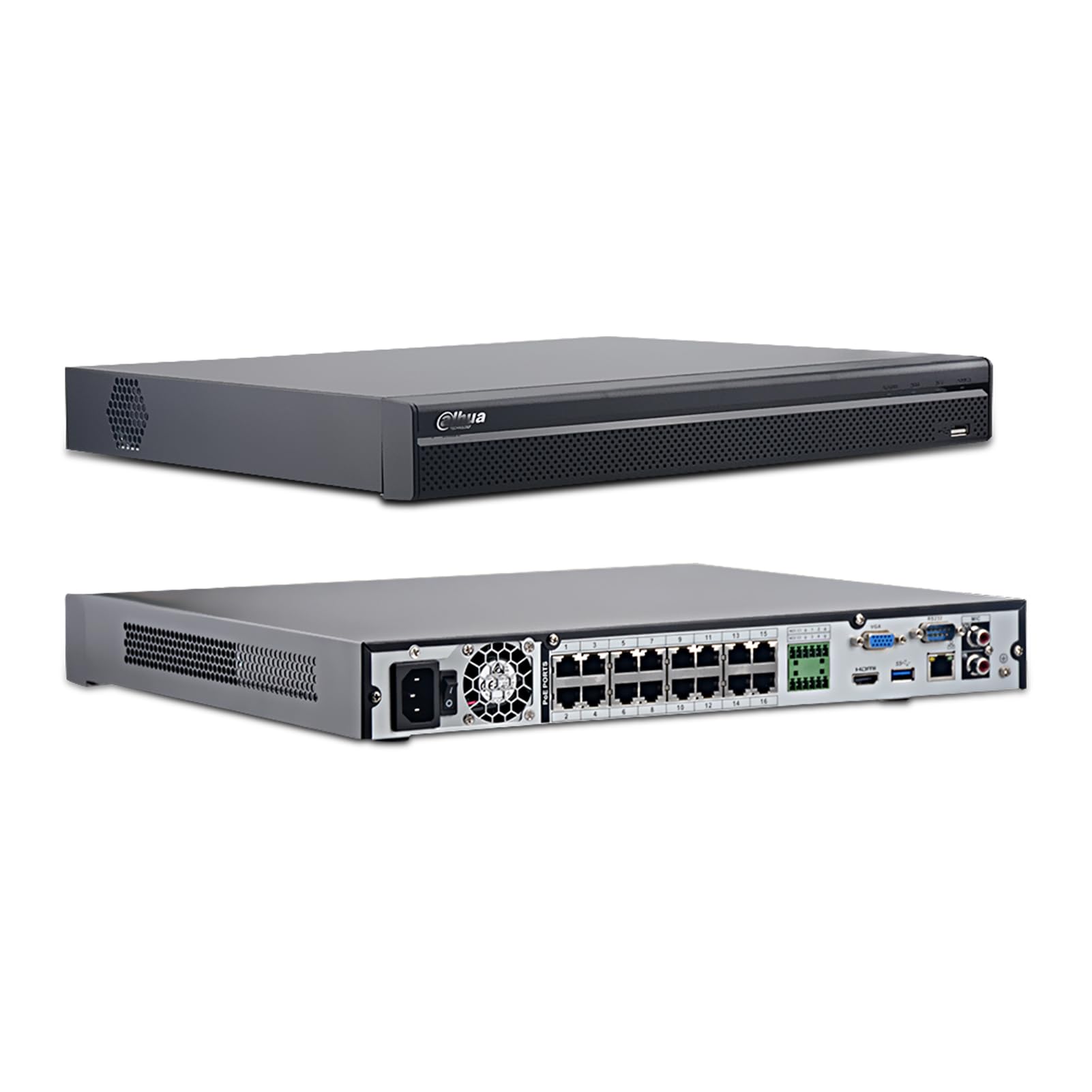

DAHUA NVR4216-16P-4KS3 16-Channel 16PoE NVR

The DAHUA NVR4216-16P-4KS3 16-channel 16PoE NVR delivers true plug-and-play 12MP recording with 320 Mbps bandwidth. This 1U Lite Series recorder powers 16 cameras directly via built-in PoE ports and supports up to 40 TB storage. Ideal for retail chains, schools, offices, and large estates in Kenya. Novatech Technologies supplies only genuine units with fast nationwide delivery.

Discover the DAHUA NVR4216-16P-4KS3 16-Channel 16PoE NVR

This powerful recorder handles 16 channels of ultra-high-resolution video without compromise. Sixteen PoE ports eliminate separate power supplies and switches. Smart H.265+ compression cuts storage costs by up to 90%. Remote access works instantly on phones, tablets, or PCs.

Ideal for Retail and Supermarkets

Store owners connect cameras across sales floors, warehouses, and parking lots from one box. 12MP resolution captures every face and license plate clearly. Motion alerts reach managers instantly via DMSS app. Staff export footage quickly using front USB ports.

Perfect for Schools and Large Compounds

Institutions monitor gates, corridors, and playgrounds simultaneously. Two 20 TB drives store months of continuous recording. Rack or desktop mounting fits any control room. Dual HDMI/VGA outputs support large monitoring walls.

Detailed Use Cases and Compatibility

The DAHUA NVR4216-16P-4KS3 16-channel 16PoE NVR excels in medium to large surveillance deployments. It supports Dahua, ONVIF, and most major IP camera brands up to 12MP.

Use Cases in Commercial and Industrial Settings

Warehouses cover loading bays and storage aisles in full detail. 320 Mbps incoming bandwidth handles 16 × 8MP@30fps streams smoothly. Smart search locates events across all channels in seconds. For enterprise NVR deployment tips, see IPVM’s 16-channel guide.

This NVR powers cameras directly through cables from Novatech Technologies’ networking category.

Use Cases for Hotels and Office Blocks

Hotels secure lobbies, corridors, and parking areas with one unit. Automatic camera discovery speeds up installation. 130 W total PoE budget supports long cable runs. ANPR and people-counting cameras integrate seamlessly.

Factories monitor production lines and perimeters 24/7. RAID-capable bays protect against drive failure. P2P connection removes complex router setup.

Compatibility with Cameras and Software

It accepts Dahua WizSense, WizMind, and third-party ONVIF Profile S/T/G cameras. Maximum decoding reaches 16 × 1080p@30fps or 4 × 12MP live view. Smart PSS Lite, DSS Express, and DMSS apps provide full management. Operating temperature ranges from -10 °C to +55 °C.

Learn about the latest H.265+ standard at ITU’s official H.265 page.

Add surveillance-grade hard drives from Novatech Technologies’ computer accessories category.

Technical Specifications

Recording and Processing

• Operating System: Embedded Linux
• IP Camera Inputs: 16 channels
• Max. Resolution: 12 MP per channel
• Incoming Bandwidth: 320 Mbps
• Outgoing Bandwidth: 320 Mbps
• Decoding Capability: 16 × 1080p@30 fps, 4 × 4K@30 fps
• Compression: Smart H.265+ / H.265 / Smart H.264+ / H.264 / MJPEG

Network and PoE

• Ethernet: 1 × RJ-45 10/100/1000 Mbps
• PoE Ports: 16 × 10/100 Mbps (802.3af/at)
• Total PoE Power: 130 W (max 25.5 W per port)
• Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, P2P

Storage and Interface

• Internal HDD: 2 SATA ports, up to 20 TB each (40 TB total)
• Video Output: 1 HDMI (4K), 1 VGA (1080p)
• USB Ports: 2 × USB 2.0 (front × 1, rear × 1)
• Audio I/O: 1/1 (RCA)

General

• Power Supply: 100–240 VAC, 50/60 Hz
• Power Consumption: < 15 W (without HDD)
• Dimensions: 375 mm × 327 mm × 53 mm (1U)
• Weight: 2.6 kg (without HDD)
• Installation: Rack mount or desktop

Explore the full Lite Series lineup at Dahua Network Recorders page.
