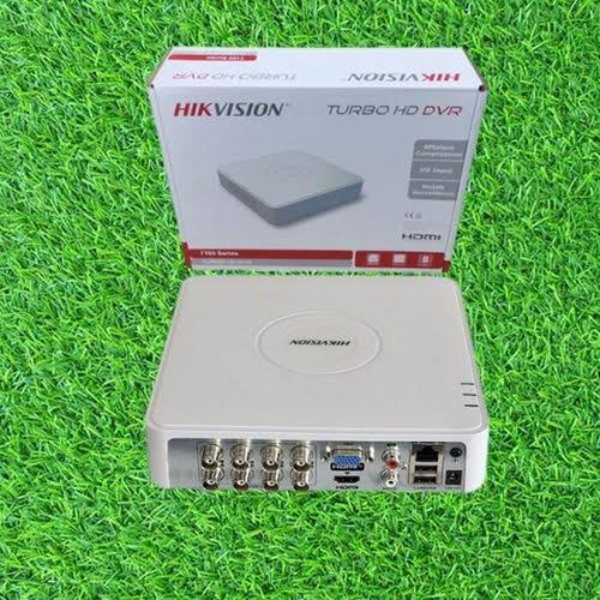

Hikvision DS-7108HGHI-M1/T DVR

Hikvision DS-7108HGHI-M1/T 8-ch 1080p Lite Mini 1U H.265 DVR offers advanced recording and smart features. This compact unit supports hybrid video inputs. Hikvision DS-7108HGHI-M1/T delivers efficient compression and reliable surveillance. It suits various security applications well.

Detailed Use Cases and Compatibility

Homeowners use this DVR to monitor entrances and backyards. Retail shops install it for cashier and aisle coverage. Offices track reception and parking areas. Warehouses secure loading docks and storage zones.

Hikvision DS-7108HGHI-M1/T supports flexible camera connections. It handles 8 analog channels via BNC inputs. Compatible formats include HDTVI, AHD, HDCVI, and CVBS. Upgrade old analog systems without cable changes. Add up to 10 IP channels. IP cameras support up to 5MP resolution. Hybrid setups mix analog and IP sources easily.

Audio travels over coaxial cables. This reduces wiring needs. Two-way audio allows communication through mics and speakers. Motion Detection 2.0 applies deep learning. It classifies humans and vehicles. False alarms decrease from wind or lights. Search footage by event type quickly.

Remote access works via Hik-Connect app. View live feeds on phones or computers. Playback retrieves clips fast.

Pair with quality displays. Browse our monitors category for matching options. Manage remotely using devices from our laptops category.

Technical Specifications

• Video and Audio Inputs Analog Video Input: 8-ch BNC (1.0 Vp-p, 75 Ω), coaxitron support HDTVI Input: 1080p25/30, 720p25/30 AHD Input: 1080p25/30, 720p25/30 HDCVI Input: 1080p25/30, 720p25/30 CVBS Input: Supported IP Video Input: 2-ch (up to 10-ch), up to 5MP, H.265+/H.265/H.264+/H.264 Audio Input: 1-ch RCA (2.0 Vp-p, 1 KΩ), 8-ch via coaxial Audio Output: 1-ch RCA (Linear, 1 KΩ) Two-Way Audio: Supported (reuse first input)
• Recording and Compression Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Encoding Resolution: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF (main stream) Frame Rate: Main stream up to 15 fps (1080p Lite), sub-stream CIF/QVGA@15 fps Video Bitrate: 32 Kbps to 4 Mbps Audio Compression: G.711u Audio Bitrate: 64 Kbps Stream Type: Video, Video & Audio
• Display HDMI Output: 1-ch, 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz VGA Output: 1-ch, same resolutions Video Output Mode: HDMI/VGA simultaneous
• Storage and Playback SATA: 1 interface, up to 4 TB Synchronous Playback: 8-ch Smart Search: Supported
• Network Total Bandwidth: 72 Mbps Network Interface: 1, RJ45 10/100 Mbps self-adaptive Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP, HTTPS Remote Connection: Up to 64
• Auxiliary Interfaces USB: 2 × USB 2.0 (rear) Alarm In/Out: N/A
• General Power Supply: 12 VDC, 1.5 A Consumption: ≤17 W (without HDD) Working Temperature: -10°C to 55°C Working Humidity: 10% to 90% Dimension (W × D × H): 200 × 200 × 45 mm Weight: ≤1 kg (without HDD)

This model ensures clear video with low storage use. It handles long-distance signals up to 1200 m for 720p HDTVI.

Explore more on Hikvision innovations at the official Hikvision website. Read about video compression standards on Wikipedia H.265. For related display tech, see HP official site.
