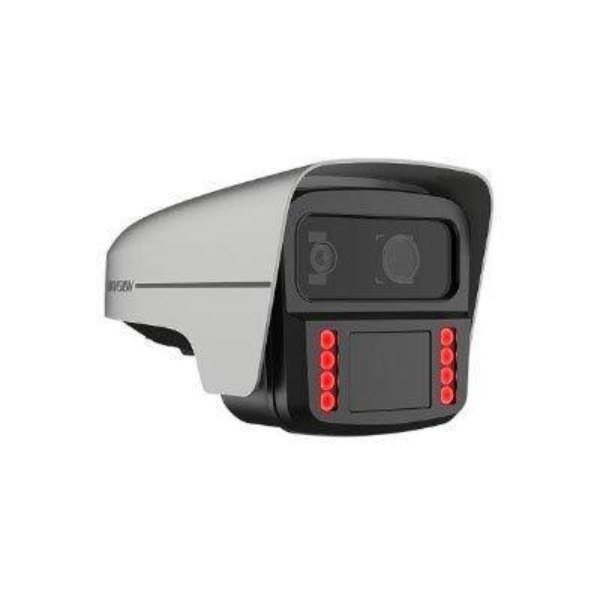

Hikvision IDS-TCM403-GIR 4 MP Radar-Assisted ANPR Smart Monitoring Camera

IDS-TCM403-GIR 4 MP Radar-Assisted ANPR Smart Monitoring Camera combines high-resolution 4-megapixel imaging with integrated radar for precise vehicle detection and real-time license plate recognition in challenging conditions. This advanced smart camera from Hikvision uses radar-assisted triggering to achieve accurate ANPR even at high speeds, low light, or adverse weather. Novatech Technologies supplies this powerful Hikvision IDS-TCM403-GIR 4 MP Radar-Assisted ANPR Smart Monitoring Camera to deliver reliable vehicle identification, speed measurement, and event linkage for professional traffic enforcement, parking management, and perimeter security applications.

Technicians choose the IDS-TCM403-GIR for its radar + ANPR fusion that reduces missed detections and false triggers. The camera excels in high-speed lanes and poor-visibility environments.

Use Cases and Compatibility for IDS-TCM403-GIR Radar-Assisted ANPR Camera

This radar-assisted ANPR camera suits demanding traffic and access control scenarios including highways, toll booths, border crossings, industrial estates, parking entrances/exits, gated communities, and logistics yards. Installers deploy it for speed detection, red-light enforcement, vehicle tracking, black/white list management, and automatic barrier control.

The integrated radar detects approaching vehicles, triggers image capture, and enables accurate ANPR at speeds up to 120 km/h with low false alarm rates. Radar assistance improves recognition reliability in rain, fog, glare, or darkness compared to video-only ANPR systems.

The fixed lens (typically 8–32 mm motorized varifocal variants available) optimizes plate capture distance and angle. It integrates seamlessly with Hikvision ANPR NVRs, traffic management servers, barrier controllers, and third-party VMS via ONVIF or SDK. Standard Cat5e/Cat6 cabling supports PoE+ power and data transmission.

IP67 weatherproof rating and wide temperature range support reliable outdoor pole or gantry mounting. The camera withstands heavy rain, dust, and extreme conditions.

Explore compatible monitors for traffic viewing in our monitors category. Browse PoE networking gear here: networking category.

Technical Specifications of the IDS-TCM403-GIR Radar-Assisted ANPR Camera

This Hikvision radar-assisted ANPR camera meets high standards for smart traffic and access monitoring.

• Model: IDS-TCM403-GIR
• Image Sensor: 1/1.8″ Progressive Scan CMOS
• Maximum Resolution: 2688 × 1520 (4 MP)
• Lens: Motorized varifocal (typical 8–32 mm range)
• Field of View: Adjustable depending on lens focal length
• Minimum Illumination: Color 0.002 Lux @ F1.0 (AGC ON), B/W 0 Lux with IR
• IR Range: Up to 80 meters (supplemental illumination)
• Radar Detection: Millimeter-wave radar for vehicle triggering
• Recognition Distance: 10–40 m (optimal for plates)
• Recognition Rate: ≥98% (optimal conditions)
• Speed Detection Range: 0–120 km/h
• Wide Dynamic Range: 120 dB true WDR
• Video Compression: H.265+/H.265/H.264+/H.264
• Smart Features: ANPR, vehicle attribute detection, speed measurement, radar-assisted triggering
• Power Supply: 12 VDC ±25% or PoE+ (802.3at)
• Maximum Power Consumption: Approx. 18 W
• Protection Rating: IP67 water and dust resistant
• Operating Temperature: -40 °C to +70 °C
• Dimensions: Approx. 390 × 120 × 105 mm
• Primary Applications: Traffic enforcement, parking access, perimeter vehicle monitoring

H.265+ compression optimizes bandwidth and storage for high-resolution streams. Radar assistance ensures reliable triggering and plate capture in difficult conditions. Motorized lens enables remote zoom/focus for optimal positioning.

View recording workstations and NVR hosts in our desktops category. Shop the full range at Novatech Technologies.

Why Trust Novatech for Hikvision Security Cameras

Novatech Technologies sources genuine Hikvision products through authorized channels. Each camera undergoes quality verification before shipment.

Each Hikvision IDS-TCM403-GIR 4 MP Radar-Assisted ANPR Smart Monitoring Camera purchase includes protection against manufacturing defects. Technical support assists with installation, lens adjustment, ANPR/radar configuration, and system integration. Nationwide delivery reaches customers via trusted logistics partners.

Secure payment methods ensure a smooth transaction. A clear return policy covers any rare concerns about product condition upon receipt.

Choose the Hikvision IDS-TCM403-GIR from Novatech for sharp 4 MP imaging, radar-assisted high-accuracy ANPR, motorized varifocal lens, extended IR range, dual 12 VDC/PoE power, weatherproof durability, and seamless integration into traffic and access systems. This camera provides fast plate recognition, reliable vehicle detection in adverse conditions, efficient storage usage, robust protection, and professional reliability for effective entrance and perimeter monitoring.
