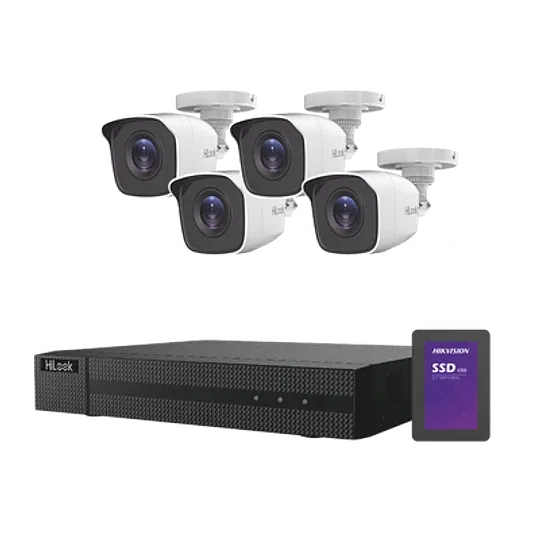

HiLook DS-J142I(STD)/TK-4142MH-MH 4-ch 2MP Bullet & Turret Kit

The HiLook DS-J142I(STD)/TK-4142MH-MH 4-ch H.265 2MP Bullet & Turret Kit provides complete plug-and-play surveillance. The kit includes a 4-channel NVR and four 2 MP bullet/turret cameras. H.265+ compression reduces storage and bandwidth requirements. This solution suits homes, small shops, offices, and perimeter monitoring with reliable 1080p video quality.

Explore HiLook DS-J142I(STD)/TK-4142MH-MH 4-ch 2MP Bullet & Turret Kit Features

4-channel NVR records 2 MP video at 25/30 fps per channel. Supports H.265+/H.265/H.264+/H.264 compression formats.

Four 2 MP bullet/turret cameras deliver 1920 × 1080 resolution. Fixed lens provides wide field of view coverage.

Built-in IR LEDs enable night vision up to 30 meters. Smart motion detection triggers accurate alerts.

PoE ports on NVR supply power and data through one cable. Pre-configured plug-and-play setup simplifies installation.

VGA and HDMI outputs connect to monitors easily. Mobile app access allows remote live view and playback.

Practical Applications of HiLook DS-J142I(STD)/TK-4142MH-MH 4-ch 2MP Bullet & Turret Kit

Home security covers entrances, driveways, and backyards effectively. Family members receive motion alerts promptly.

Small retail shops monitor sales floors and stock rooms. Clear footage helps prevent theft and disputes.

Offices watch reception areas, corridors, and parking zones. Staff maintain security awareness during operations.

Warehouses secure loading bays and storage aisles. Night vision ensures visibility in low-light conditions.

Perimeter monitoring protects residential compounds and small facilities. Wide coverage reduces blind spots.

This kit pairs seamlessly with monitors for live viewing.

Compatibility Details for HiLook DS-J142I(STD)/TK-4142MH-MH 4-ch 2MP Bullet & Turret Kit

NVR supports HiLook and ONVIF-compliant IP cameras. Cameras connect via PoE ports automatically.

H.265+ compatibility works with standard Cat5e/Cat6 cabling. Supports up to 4 TB internal HDD storage.

VGA and HDMI ports connect to various displays. Mobile app runs on iOS and Android devices.

Web browser access allows configuration and live view. Compatible with HiLookVision cloud service.

Pre-installed cameras and NVR require minimal setup. Kit supports basic motion and tampering detection.

For complete compatibility information, refer to the official resource at HiLook.

Technical Specifications

• Product Model: DS-J142I(STD)/TK-4142MH-MH
• NVR Channels: 4 IP channels
• NVR Resolution: Up to 2 MP per channel
• NVR Compression: H.265+/H.265/H.264+/H.264
• NVR Video Output: HDMI & VGA
• NVR PoE Ports: 4 × 10/100 Mbps PoE ports
• NVR Storage: 1 SATA interface, up to 4 TB HDD
• NVR Network: 1 RJ45 10M/100M Ethernet port
• Camera Image Sensor: 1/2.8″ Progressive Scan CMOS
• Camera Resolution: 1920 × 1080
• Camera Frame Rate: 25 fps (PAL) / 30 fps (NTSC)
• Camera Lens: Fixed lens (2.8 mm or 4 mm variants)
• Camera Field of View: Approx. 105° horizontal
• Camera Min. Illumination: Color: 0.01 Lux, 0 Lux with IR
• Camera IR Range: Up to 30 m
• Camera Protection: IP67 weatherproof
• Camera Power: PoE (802.3af) or 12 VDC
• Operating Temperature: -30 °C to 60 °C
• Operating Humidity: ≤ 95% (non-condensing)
• Certifications: CE, RoHS

Key Benefits of HiLook DS-J142I(STD)/TK-4142MH-MH 4-ch 2MP Bullet & Turret Kit

Plug-and-play kit reduces setup time significantly. H.265+ compression saves storage space.

4 MP-level 2 MP cameras provide clear detailed footage. IR night vision ensures 24/7 monitoring.

PoE simplifies power and data delivery. Motion detection triggers accurate event recording.

Wide-angle lens covers large areas efficiently. Affordable complete solution for small-scale security.

It enhances computer accessories and NVR systems. Reliable surveillance for various environments.
