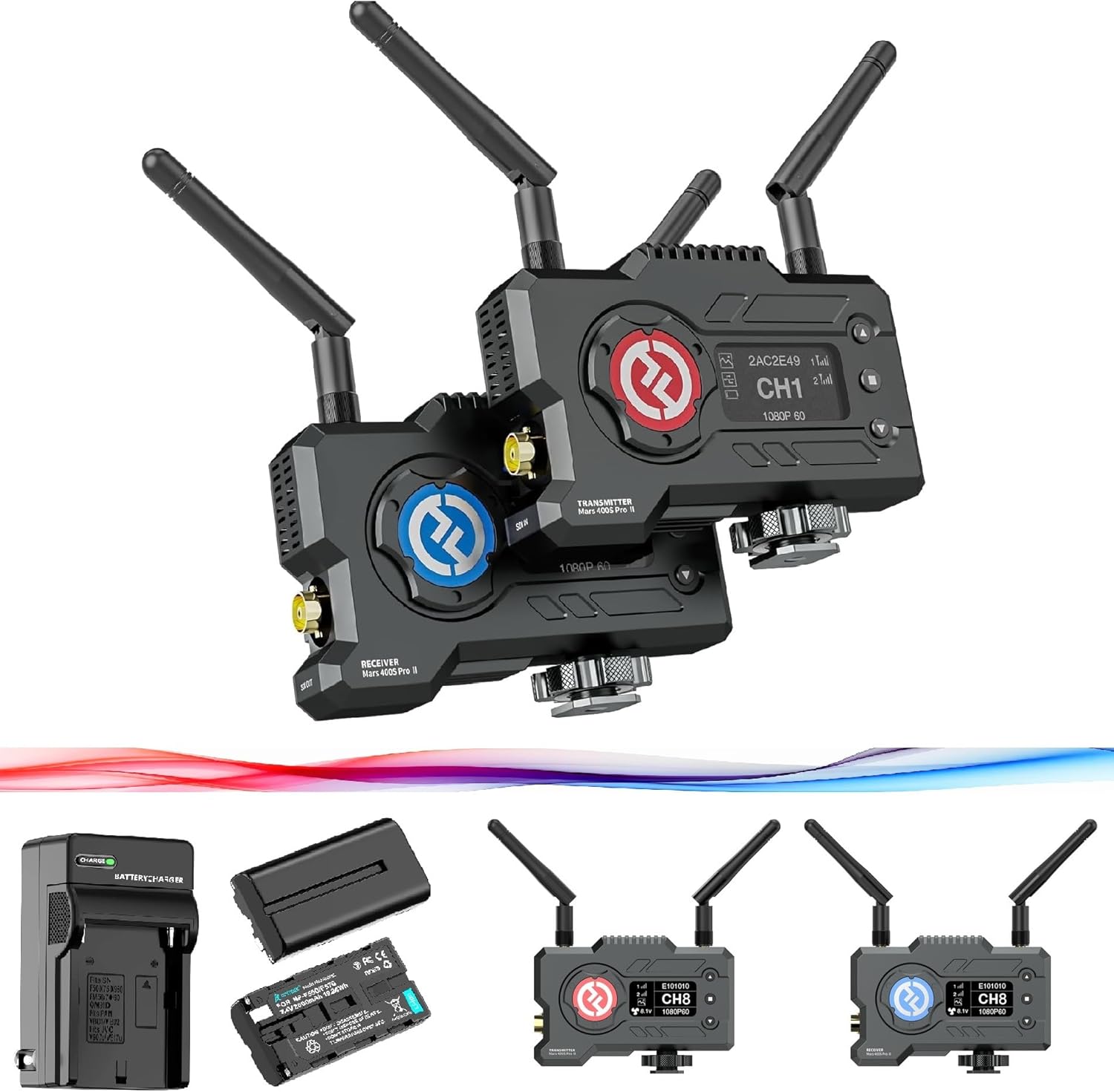

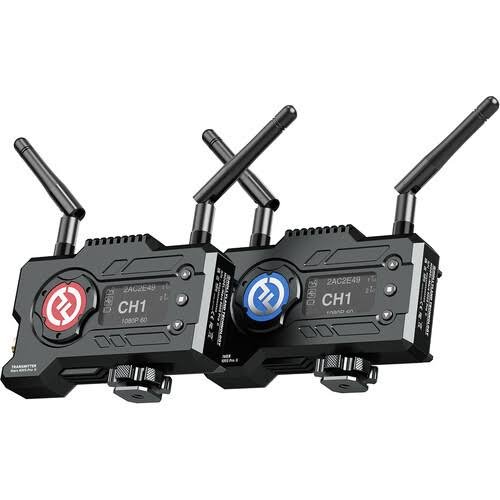

Hollyland Mars 400S Pro II Wireless Video System

Discover the Hollyland Mars 400S Pro II Wireless Video System, a professional-grade transmitter-receiver set for low-latency HD video transmission. This compact system supports SDI and HDMI interfaces for seamless integration in demanding production workflows.

Versatile Use Cases for Hollyland Mars 400S Pro II Wireless Video System

Professional Film and Documentary Shoots

Filmmakers require reliable feeds during dynamic scenes. Attach the transmitter to cinema cameras for real-time monitoring up to 450 feet away. Directors review compositions on receivers without cables hindering movement. This setup captures authentic moments in remote locations. Teams collaborate on multi-angle coverage effortlessly. The low 70ms latency ensures precise timing for action sequences.

Live Event and Broadcast Production

Event videographers handle crowds with ease. Transmit signals from stages to control booths for instant switches. Operators monitor audio sync on multiple screens via app or receivers. Broadcasters cover conferences with stable 1080p60 feeds. The system supports up to four monitoring devices for crew coordination. It excels in high-interference environments through smart channel selection.

Commercial and Corporate Video Creation

Content creators produce ads in controlled studios. Connect DSLRs to the transmitter for client previews on tablets. Producers adjust lighting based on live receiver outputs. This flexibility speeds up revisions during shoots. Wedding videographers use it for unobtrusive groom-bride tracking. The fan-off mode keeps operations silent for narrative focus.

For wireless transmission protocols, explore SMPTE standards.

Compatibility and Integration Options

Camera and Output Device Synergy

The transmitter accepts HDMI and SDI from mirrorless cameras like Sony A7 series or Blackmagic rigs. Receivers output to monitors via 3G-SDI or HDMI for switchers. It pairs with up to two receivers or four HollyView app users. The system works with L-series batteries for extended runtime. Firmware compatibility extends to previous Mars 400S Pro models.

Production Workflow Enhancements

Mount via integrated cold shoe on gimbals or cages. Novatech supplies antennas for signal boosts in field ops. Visit Novatech Technologies for accessory kits. For studio peripherals, check their computer accessories.

Field performance insights are detailed at CineD wireless reviews.

Technical Specifications

Transmission and Video Details

• Resolution: Up to 1080p60 (HDMI/SDI)
• Latency: 70ms (HD Mode), 56ms (Focus Mode)
• Range: 450ft (150m) line-of-sight
• Data Rate: 12Mbps
• Frequency: 5.1-5.8GHz
• Modulation: OFDM
• Power Output: ≤21dBm (transmitter)
• Sensitivity: -80dBm (receiver)

Interfaces

• Transmitter: HDMI Type-A input, 3G-SDI input, 2x RP-SMA antenna, DC/USB-C power
• Receiver: HDMI Type-A output, 3G-SDI output, 2x RP-SMA antenna, DC/USB-C power
• Audio: Embedded 2-channel (SDI), 8-channel (HDMI)

Power and Environmental

• Input: DC 6-16V, USB-C 5V/2A, L-series battery
• Consumption: Transmitter <11W, Receiver <7W
• Fan Modes: Auto, Low Speed, Off
• Dimensions: 110 x 72 x 33.5 mm (per unit)
• Weight: 206g (per unit)
• Temperature: -10°C to 60°C
• Certifications: CE, FCC, RoHS

Why Choose Novatech for Your Hollyland Mars 400S Pro II Wireless Video System

Novatech Technologies offers authentic video transmission gear for Kenyan professionals. They provide genuine Hollyland systems with a one-year manufacturer’s warranty on components and labor. This includes repairs for signal issues at their Nairobi facility. Support experts deliver pairing guidance via phone or email within 24 hours. Customers receive shipments to Kisumu in 2-3 days. Extended plans cover up to two years for frequent field use. Novatech verifies units against fakes for consistent performance. After-sales features app tutorials and channel optimization tips. For editing setups, browse their laptops category.

Low-latency tech overviews appear at Newsshooter equipment guides.
