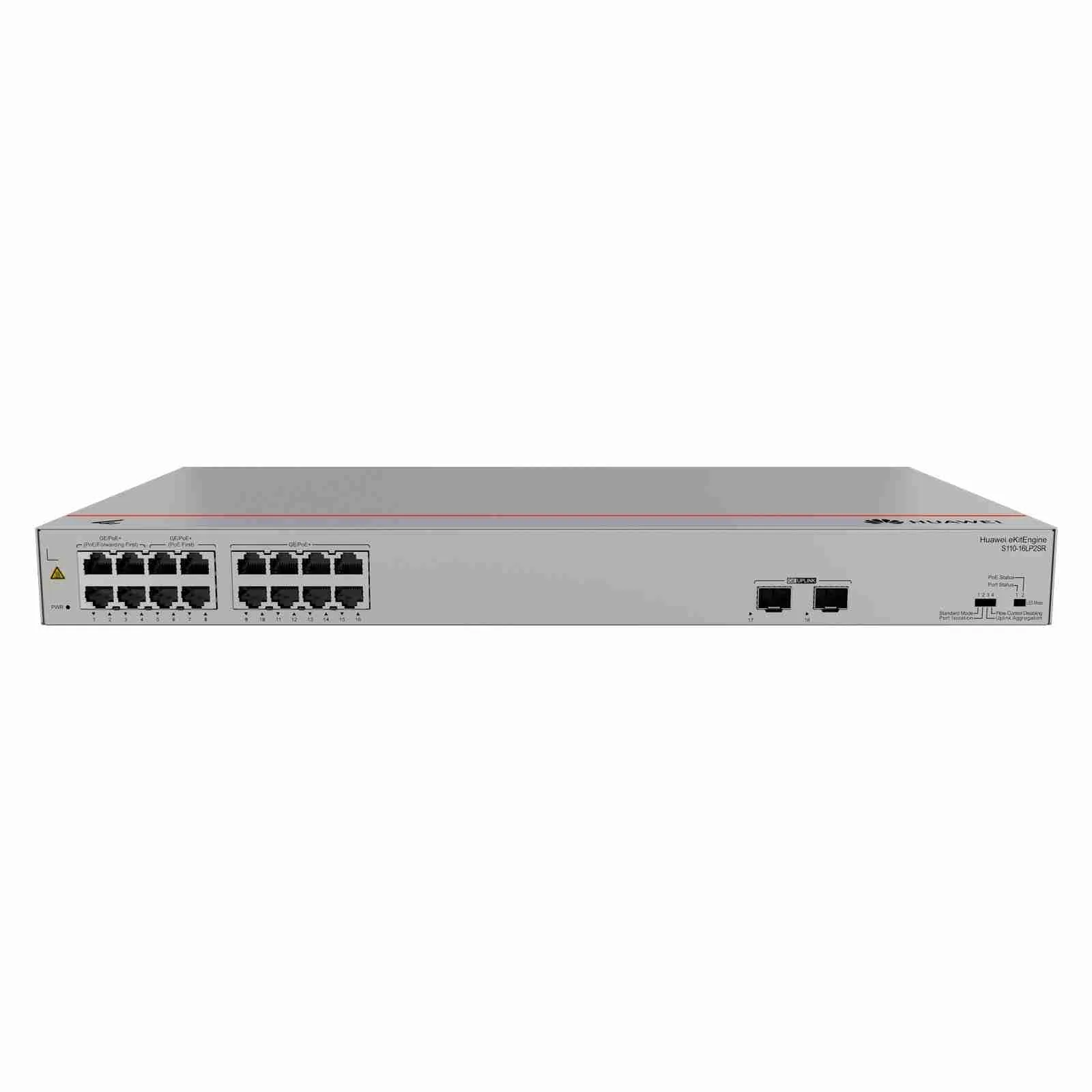

Huawei eKitEngine S110-16LP2SR PoE Switch

Transform your small to medium-sized business network with the Huawei eKitEngine S110-16LP2SR PoE Switch, an unmanaged Gigabit switch designed for simplicity and performance. For instance, this switch features 16 x 10/100/1000BASE-T PoE+ ports and 2 GE SFP uplink ports, delivering a 124W PoE budget for powering devices like IP cameras and VoIP phones. Available at Novatech Technologies, it offers plug-and-play ease, robust connectivity, and energy efficiency for modern networking needs.

Why Choose Huawei eKitEngine S110-16LP2SR PoE Switch?

High-Speed Gigabit Connectivity

To begin with, the switch provides 16 Gigabit Ethernet ports, ensuring fast data transfer for devices like computers and access points. Consequently, its 32 Gbps switching capacity and 23.81 Mpps forwarding rate support high-bandwidth applications such as video streaming and cloud services without bottlenecks.

Efficient PoE+ Power Delivery

Moreover, with a 124W PoE+ budget (802.3af/at), the Huawei eKitEngine S110-16LP2SR PoE Switch powers up to 8 ports at 15.4W or 4 ports at 30W. As a result, it simplifies deployments by eliminating separate power supplies for devices like wireless APs and IP phones.

Flexible Uplink Options

Additionally, the 2 GE SFP ports enable fiber connectivity for long-distance uplinks, enhancing network scalability. For example, businesses can connect to backbone networks or remote offices with minimal latency, ensuring seamless expansion.

Silent and Energy-Efficient Design

Furthermore, the fanless design ensures noiseless operation (below 30 dB), ideal for quiet environments like offices or libraries. Besides, its Energy Efficient Ethernet (EEE) compliance reduces power consumption to 22W without PoE and 160W at full PoE load, lowering operational costs. Learn more about EEE at IEEE Standards Association.

Deployment and Management

Plug-and-Play Simplicity

For instance, as an unmanaged switch, the Huawei eKitEngine S110-16LP2SR PoE Switch requires no configuration, enabling immediate deployment. It supports four working modes—standard, port isolation, uplink aggregation, and flow control disabling—offering flexibility without complexity.

Reliable Network Protection

Moreover, features like storm control and loop prevention minimize downtime risks by mitigating network interruptions. As a result, businesses maintain stable connectivity, even in high-traffic scenarios, ensuring uninterrupted operations.

Use Cases for Huawei eKitEngine S110-16LP2SR PoE Switch

Small to Medium Enterprises

For small businesses, this switch delivers reliable Gigabit connectivity for office devices and PoE-powered equipment. Specifically, its 8K MAC address table supports growing networks. Pair it with a monitor like the HP Series 5 23.8-inch FHD Monitor for efficient network monitoring.

Surveillance Systems

Similarly, in security setups, the PoE+ ports power IP cameras, while the SFP ports enable long-distance fiber uplinks for centralized monitoring. For example, it supports high-resolution video feeds without lag. Explore networking gear at Novatech Technologies’ networking category.

Educational Settings

In classrooms, the switch powers wireless APs and interactive displays, supporting e-learning environments. Its silent operation ensures minimal disruption. Learn about educational networking at Aruba’s education solutions.

Retail and Hospitality

Likewise, retail stores and hotels use the switch to power POS systems and guest Wi-Fi APs. Its port isolation mode enhances guest network security. Enhance setups with accessories from Novatech Technologies’ computer accessories category.

Technical Specifications of Huawei eKitEngine S110-16LP2SR PoE Switch

• Ports: 16 x 10/100/1000BASE-T (PoE+), 2 x GE SFP
• Switching Capacity: 32 Gbps
• Packet Forwarding Rate: 23.81 Mpps
• PoE Power Budget: 124W (802.3af: 8 ports, 802.3at: 4 ports)
• Power Supply: Built-in AC (90-300V, 47-63 Hz, 3A max)
• Maximum Power Consumption: 22W (without PoE), 160W (with PoE)
• MAC Address Table: 8K entries
• Management: Unmanaged, supports standard mode, port isolation, uplink aggregation, flow control disabling
• Security Features: Storm control, loop prevention
• Physical Design: Rack/wall-mountable, 43.6mm x 442mm x 260mm
• Weight: 3.2 kg
• Environmental Conditions: Operating temperature -5°C to 55°C, humidity 5% to 95% non-condensing, IP20 rating
• Additional Features: IEEE 802.3az EEE, auto MDI/MDIX, natural heat dissipation

Advanced Features and Performance

The switch’s store-and-forward architecture ensures error-free packet transmission, supporting jumbo frames up to 10K for efficient data transfer. Moreover, its auto-negotiation optimizes port speeds, enhancing compatibility with diverse devices. For instance, the SFP ports support hot-swappable transceivers, allowing seamless upgrades to fiber connectivity.

Additionally, the switch’s robust metal chassis and natural heat dissipation ensure durability and silent operation. Its ±6 kV surge protection safeguards against electrical spikes, making it reliable in various environments. For technical details on Ethernet standards, visit IEEE’s 802.3 standards.

In terms of efficiency, the switch dynamically allocates PoE power based on device needs, preventing overloads. Furthermore, its compact 1U design fits standard 19-inch racks or wall mounts, offering flexible installation options for space-constrained setups.

Trust and Warranty with Novatech Technologies

When you purchase this switch from Novatech Technologies, you receive a 12-month manufacturer’s warranty, ensuring reliability and peace of mind. Our dedicated support team provides expert assistance with installation and troubleshooting, guaranteeing optimal network performance. Novatech Technologies is committed to delivering trusted, high-quality connectivity solutions tailored to your business needs.
