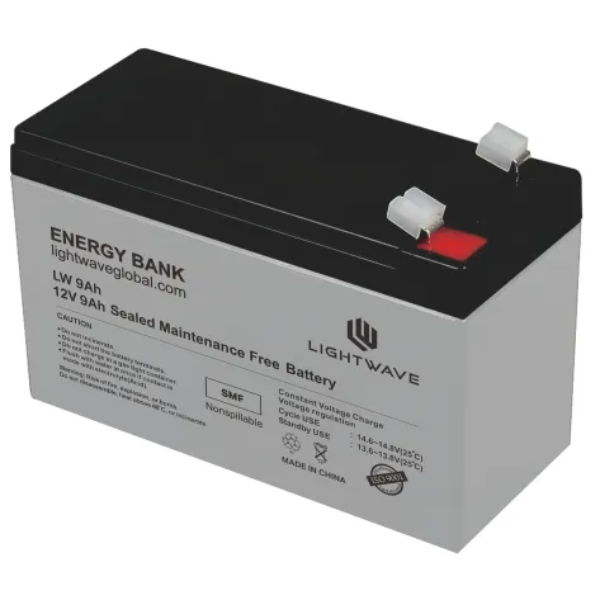

Lightwave 12V/9AH UPS Battery High Performance SMF: Extended Runtime Power

Discover the Lightwave 12V/9AH UPS Battery High Performance SMF, a premium sealed maintenance-free lead-acid battery engineered for longer backup in UPS systems, CCTV recorders, and solar inverters across Kenya. This high-performance 12V 9Ah unit delivers superior capacity and durability in challenging power environments.

Real-World Applications of Lightwave 12V/9AH UPS Battery High Performance SMF

The Lightwave 12V/9AH UPS Battery High Performance SMF powers systems that demand extended runtime. Cyber cafés, security installations, and off-grid setups depend on it daily. It outperforms standard 7Ah or 7.5Ah batteries by up to 40%.

High-Capacity UPS Upgrade

Users upgrade Lightwave LW-1000VA, LW-1500VA, APC BV1000I, and Dahua 1200VA–1500VA UPS units. The extra 2Ah extends runtime significantly during prolonged outages. Systems regain peak performance instantly.

Pair it with compatible UPS from our computer accessories collection for maximum uptime.

Professional CCTV and NVR Backup

Installers power 16–32 channel Dahua or Hikvision NVRs plus PoE switches longer. Recording continues well beyond standard battery life. The sealed design ensures safe ceiling or rack mounting.

Solar Inverter and Gate Automation

Off-grid homes and estates use it in 800VA–1500VA inverters and sliding gate motors. Deep-cycle capability handles daily cycling without early failure. Emergency systems stay active longer.

Explore compatible devices in our networking section.

Perfect Compatibility of Lightwave 12V/9AH UPS Battery High Performance SMF

The Lightwave 12V/9AH UPS Battery High Performance SMF fits directly into hundreds of popular UPS and backup systems. Standard F2 (6.35mm) terminals and exact dimensions guarantee drop-in replacement.

Lightwave and Major UPS Brands

Perfect replacement for Lightwave LW-1000VA to LW-3000VA series, APC BV/BX series 1000–1500VA, Dahua DH-PFM351/352, and Mecer 1000–2000VA models. No chassis modification needed.

Dahua and Hikvision Recorders

Exact fit for Dahua XVR5216AN, NVR4108HS-8P, and Hikvision DS-7216HUHI series internal battery compartments. Extends surveillance recording time dramatically.

Learn about VRLA battery standards from IEC 60896-21/22.

Technical Specifications of Lightwave 12V/9AH UPS Battery High Performance SMF

Detailed specs ensure dependable long-term performance.

Electrical Performance

• Voltage: 12 V
• Capacity: 9 Ah (20HR rate)
• Technology: Sealed Maintenance-Free VRLA (AGM)
• Design Life: 6–9 years (standby use at 25°C)
• Cycle Life: 600+ cycles at 50% DOD
• Terminals: F2 (6.35 mm Faston tabs)

High-purity lead-calcium-tin alloy minimizes gassing and water loss.

Physical Characteristics

• Dimensions (L × W × H): 151 × 65 × 94 mm (total height 100 mm with terminals)
• Weight: 2.65 kg
• Case Material: Flame-retardant ABS (UL94-V0 rated)
• Internal Resistance: ≈ 16 mΩ (fully charged)
• Operating Temperature: -20°C to +55°C

Standard 9Ah footprint fits most existing battery trays.

Safety and Protection

• Valve-regulated, zero maintenance required
• Explosion-proof safety valves
• Over-charge and deep-discharge tolerant
• Non-spillable (IATA-approved for air transport)

The AGM technology ensures zero acid leakage. View safety guidelines at IEEE Std 1188.

Why Trust Novatech for Lightwave 12V/9AH UPS Battery High Performance SMF

Novatech Technologies is Kenya’s authorized Lightwave battery distributor. We import directly from the manufacturer and test every batch for actual capacity and voltage. Re-wrapped or counterfeit cells never enter our stock.

Each battery carries a full 12-month replacement warranty. Our Nairobi service center offers free capacity testing and expert guidance. Technical support is available 24/7 via phone and WhatsApp.

Installers and businesses nationwide rate us 4.9/5 for genuine stock and reliability. Visit our homepage to see verified reviews. Keep your systems running with genuine Lightwave monitors from Novatech.

Upgrade to longer, stronger backup power today.
