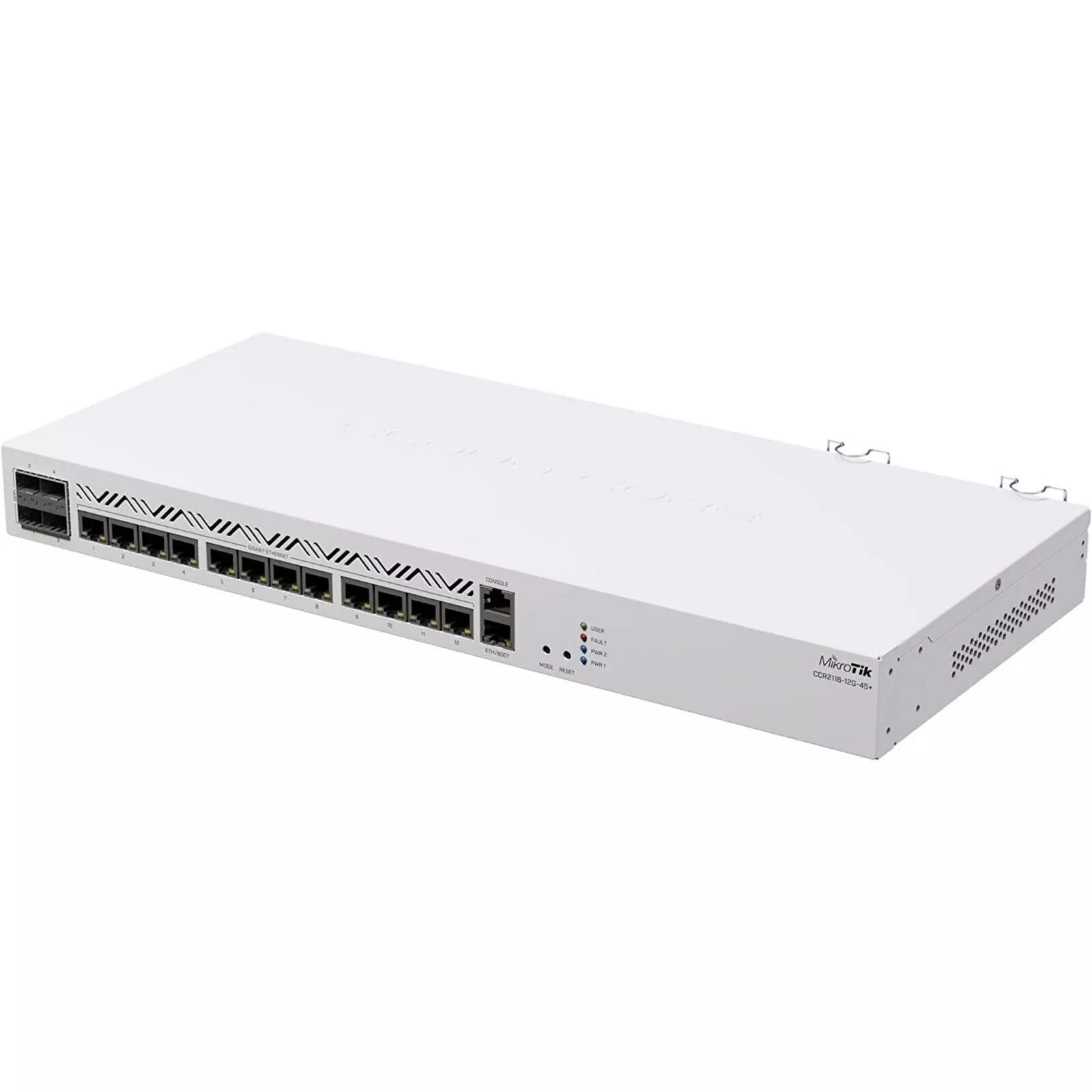

MikroTik CCR2116-12G-4S+ Cloud Core Router

The MikroTik CCR2116-12G-4S+ Cloud Core Router is a flagship device for ultra-high-performance networking. Featuring 12 Gigabit Ethernet ports and 4 10G SFP+ cages, it delivers exceptional throughput in a compact 1U rackmount form. Available at Novatech Technologies, this router supports RouterOS v7 for advanced routing in enterprise and ISP applications.

Why Choose MikroTik CCR2116-12G-4S+ Cloud Core Router?

Flagship Processing Capabilities

The MikroTik CCR2116-12G-4S+ Cloud Core Router is powered by a 16-core ARM CPU at 2.0 GHz and 16GB RAM, providing unmatched performance for core routing tasks. Its 12 Gigabit Ethernet ports support high-density copper connections, while the 4 10G SFP+ cages enable multi-gigabit fiber uplinks. RouterOS v7 includes hardware acceleration for IPsec, BGP, and WireGuard VPNs, ensuring secure, low-latency operations.

• 16-Core Powerhouse: Handles massive workloads efficiently.
• Mixed Port Design: 12 Gigabit Ethernet and 4 10G SFP+.
• Extensive Memory: 16GB RAM for complex configurations.

A limitation is the high power consumption under full load, necessitating robust cooling and power infrastructure in dense deployments.

Use Cases for MikroTik CCR2116-12G-4S+ Cloud Core Router

ISP Core and Edge Routing

The CCR2116-12G-4S+ Cloud Core Router excels as a core router for ISPs, aggregating traffic from multiple Gigabit links via Ethernet ports. The SFP+ cages connect to backbone fiber, supporting dynamic BGP routing for scalable services. Integrate it with HP’s enterprise solutions for enhanced network visualization in service provider setups.

Large Enterprise Data Centers

In data centers, the router manages high-bandwidth traffic for servers and storage, with 10G SFP+ ports for direct server uplinks. RouterOS features like OSPF ensure efficient path selection. Pair it with Ubiquiti’s UniFi infrastructure for comprehensive wired network management in cloud environments.

High-Traffic Branch and Campus Networks

For large branches or campuses, the CCR2116 provides centralized routing with Gigabit ports for access switches and SFP+ for WAN links. Its advanced QoS prioritizes critical traffic like video conferencing. However, its enterprise focus may require skilled administrators for optimal setup.

Compatibility with Advanced Networks

The CCR2116-12G-4S+ Cloud Core Router supports Gigabit Ethernet and 10G SFP+ connectivity, compatible with modern switches, servers, and fiber transceivers. It includes dual M.2 slots for NVMe SSD storage and a USB 3.0 port for peripherals. Integrate it with HP’s networking equipment, but confirm transceiver compatibility to maximize fiber speeds.

Technical Specifications of MikroTik CCR2116-12G-4S+ Cloud Core Router

Hardware Overview

• CPU: AL73400, 16-core, 2.0 GHz
• RAM: 16 GB
• Storage: 128 MB NAND, 2 x M.2 NVMe SSD slots
• Ethernet Ports: 12 x 10/100/1000 Mbps RJ45
• SFP+ Ports: 4 x 10G SFP+ cages
• USB Port: 1 x USB 3.0 Type A
• Console Port: 1 x RJ45
• Power Input: 2 x DC jack (12-57V DC)
• Max Power Consumption: 90W
• PoE: None
• Dimensions: 17.52 x 1.73 x 9.06 inches (445 x 44 x 230 mm)
• Weight: 4.41 lbs (2 kg)
• Operating System: RouterOS v7, License Level 6
• Operating Temperature: -20°C to 60°C (-4°F to 140°F)
• Certifications: CE, EAC, ROHS

Package Contents

• CCR2116-12G-4S+ Cloud Core Router
• 48V 3A Power Supply
• Rackmount Ears
• Quick Start Guide

The 1U rackmount design optimizes space in server rooms, with dual power inputs for redundancy.

Benefits of MikroTik CCR2116-12G-4S+ Cloud Core Router

Unrivaled Routing Performance

RouterOS v7 delivers full L3 features, including hardware IPsec acceleration up to 18 Gbps and support for full BGP tables. The dual M.2 slots allow SSD installation for extensive logging and caching. The USB port facilitates modem or storage integration for enhanced flexibility.

• Ultra-Fast Encryption: Hardware-accelerated VPN throughput.
• Massive Storage Options: Dual NVMe SSD for data-intensive tasks.
• Redundant Powering: Dual DC jacks for high availability.

A drawback is the complexity of advanced RouterOS configurations, which may demand professional expertise.

Versatile High-Speed Connectivity

The mixed port configuration supports diverse connections, with up to 36 Gbps routing throughput for seamless performance. The 4 10G SFP+ ports enable aggregation for 40G effective bandwidth. However, optimal speeds require high-quality Cat6 cabling and compatible optics.

Trust and Support from Novatech Technologies

Purchasing the MikroTik CCR2116-12G-4S+ Cloud Core Router from Novatech Technologies guarantees a premium product with a one-year warranty covering defects. Novatech Technologies offers comprehensive support for RouterOS deployment and optimization, ensuring reliable high-performance networking for customers in Kenya.
