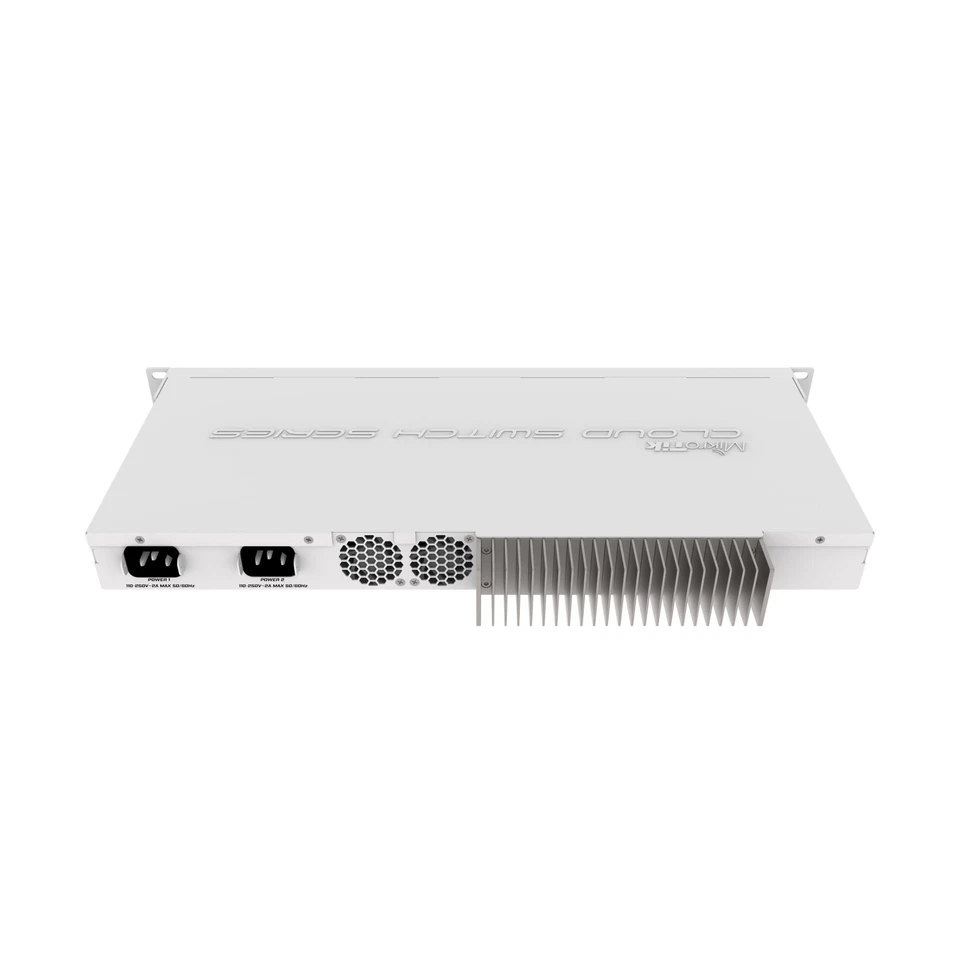

MikroTik CRS317-1G-16S+RM Smart Switch

The MikroTik CRS317-1G-16S+RM Smart Switch provides high-performance networking for enterprise environments. Featuring one Gigabit Ethernet port and sixteen 10G SFP+ ports, it delivers ultra-fast connectivity with advanced switching capabilities. Available at Novatech Technologies, this switch supports RouterOS and SwOS for flexible management in demanding setups.

Why Choose MikroTik CRS317-1G-16S+RM Smart Switch?

High-Capacity Switching Performance

The MikroTik CRS317-1G-16S+RM Smart Switch is powered by a quad-core 1.2 GHz CPU and 256 MB RAM, ensuring efficient handling of high-throughput traffic. Its sixteen 10G SFP+ ports support up to 320 Gbps non-blocking switching capacity, ideal for data centers and high-speed networks. Dual-boot RouterOS and SwOS allow seamless switching between advanced routing and simple switching modes.

• Ultra-Fast Ports: Sixteen 10G SFP+ for multi-gigabit connectivity.
• Powerful Hardware: Quad-core CPU for complex configurations.
• Flexible Management: Dual OS support for routing or switching.

A limitation is the requirement for external power supplies in redundant setups, increasing complexity and cost.

Use Cases for MikroTik CRS317-1G-16S+RM Smart Switch

Data Center Backbone

The CRS317-1G-16S+RM excels as a backbone switch in data centers, interconnecting servers and storage with 10G fiber links. Its high port density supports scalable infrastructure for virtualization and cloud services. Integrate it with HP’s enterprise solutions for comprehensive network monitoring.

Enterprise Network Aggregation

Enterprises use this switch for aggregating traffic from access switches, ensuring low-latency performance for VoIP and video conferencing. The Gigabit Ethernet port connects management devices, while SFP+ ports link to core routers. Pair it with Ubiquiti’s UniFi systems for hybrid deployments in large offices.

ISP and Service Provider Networks

ISPs benefit from the switch’s L3 features in RouterOS mode, including VLAN routing and ACLs for traffic management. Its rackmount design fits telecom racks, supporting high-bandwidth customer connections. However, full utilization requires compatible 10G transceivers, adding to initial expenses.

Compatibility with Network Infrastructure

The CRS317-1G-16S+RM supports 10G SFP+ modules for fiber and DAC connections, compatible with servers, NAS, and other switches. The single Gigabit Ethernet port handles out-of-band management or copper links. It operates with RouterOS for advanced L3 functions and SwOS for L2 switching, integrating with HP’s networking equipment. Users should ensure transceiver compatibility to avoid performance issues.

Technical Specifications of MikroTik CRS317-1G-16S+RM Smart Switch

Hardware Overview

• CPU: AL21200, quad-core, 1.2 GHz
• RAM: 256 MB
• Storage: 16 MB Flash
• Ethernet Ports: 1 x 10/100/1000 Mbps RJ45
• SFP+ Ports: 16 x 10G SFP+
• Switching Capacity: 320 Gbps
• Forwarding Rate: 238 Mpps
• Power Input: 2 x DC jack (12-57V DC)
• Max Power Consumption: 60W (without attachments)
• PoE: None
• Dimensions: 17.32 x 1.73 x 9.84 inches (440 x 44 x 250 mm)
• Weight: 4.41 lbs (2 kg)
• Operating System: Dual-boot RouterOS/SwOS, License Level 5
• Operating Temperature: -20°C to 60°C (-4°F to 140°F)
• Certifications: CE, EAC, ROHS

Package Contents

• CRS317-1G-16S+RM Smart Switch
• 24V 2.5A Power Supply
• Rackmount Ears
• Quick Start Guide

The 1U rackmount enclosure optimizes data center space, but dual power supplies are recommended for redundancy.

Benefits of MikroTik CRS317-1G-16S+RM Smart Switch

Advanced Layer 3 Capabilities

In RouterOS mode, the switch supports full L3 routing, including OSPF and BGP, for dynamic network management. SwOS mode provides efficient L2 features like port mirroring and storm control. The quad-core CPU handles up to 10G per port without bottlenecks, ideal for high-density environments.

• Dual OS Flexibility: Switch between routing and switching modes.
• High Throughput: 320 Gbps capacity for demanding traffic.
• Efficient Management: Web-based interface for quick configurations.

A drawback is the steeper learning curve for RouterOS, which may require training for non-expert users.

Scalable and Reliable Design

The sixteen SFP+ ports enable dense 10G connectivity, supporting future network expansions. Redundant power inputs ensure uptime in critical applications. However, the lack of built-in PoE limits direct powering of access points or cameras.

Trust and Support from Novatech Technologies

Purchasing the MikroTik CRS317-1G-16S+RM Smart Switch from Novatech Technologies ensures a high-quality product with a one-year warranty covering defects. Novatech Technologies offers specialized support for installation and configuration, providing dependable service for your networking needs in Kenya.
