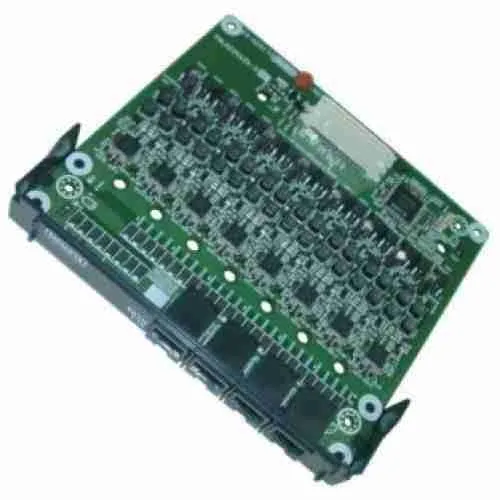

Panasonic KX-NS5170 Hybrid Extension Card

The Panasonic KX-NS5170 Hybrid Extension Card enhances communication flexibility for businesses with a 4-port hybrid design. This DHLC4 module integrates with NS500/NS700 PBX systems, supporting both analog and digital extensions for versatile telephony setups. Ideal for offices transitioning to modern systems while retaining legacy phones, it ensures seamless connectivity and high-quality voice performance. Businesses can expand internal communications efficiently without replacing existing infrastructure.

Why Choose the Panasonic KX-NS5170?

Versatile Hybrid Connectivity

The Panasonic KX-NS5170 Hybrid Extension Card supports a mix of analog and digital phones, making it perfect for businesses with diverse equipment. It accommodates up to four extensions, including single-line telephones (SLT), analog proprietary telephones (APT), and digital proprietary telephones (DPT) like the KX-DT series. This flexibility allows companies to integrate legacy devices while adopting newer digital handsets, reducing upgrade costs. The card connects up to eight digital cameras or DECT wireless systems for added functionality.

Enhanced Office Communication

In small to medium offices, the Panasonic KX-NS5170 Hybrid Extension Card streamlines internal communications. Its four ports (split into four digital and four analog) support up to 12 extensions when configured with extra digital ports (XDP). Features like call waiting, transfer, and intercom enhance team collaboration. The card integrates with voicemail systems, enabling digital voicemail for efficient message management. Pair it with accessories from Novatech Technologies to optimize your setup.

Seamless PBX Integration

The Panasonic KX-NS5170 Hybrid Extension Card installs into universal slots of NS500/NS700 PBX systems, ensuring quick deployment. It uses two RJ45 sockets for simplified wiring, reducing installation complexity. Compatible with Panasonic’s Unified Maintenance Console, administrators can configure settings remotely. Businesses can reference integration guides from Panasonic’s telecom solutions for smooth setup. This card supports hybrid environments, bridging analog and digital telephony.

Reliable Features for Daily Use

The Panasonic KX-NS5170 Hybrid Extension Card offers robust features like caller ID support for both analog and digital lines. It enables XDP for parallel connections, allowing one port to serve multiple devices. The card supports DECT wireless systems, ideal for mobile employees in warehouses or retail spaces. Surge protection safeguards against electrical damage, ensuring longevity in high-traffic environments like call centers or medical offices.

Technical Specifications of the Panasonic KX-NS5170

General Overview

• Product Type: 4-Port Hybrid Extension Card (DHLC4)
• Compatibility: Panasonic NS500, NS700 hybrid IP-PBX systems
• Ports: 4 hybrid ports (4 digital + 4 analog, up to 12 extensions with XDP)
• Installation: Universal slot in PBX chassis
• Power Consumption: 2.8W maximum
• Dimensions: 105 mm (W) x 180 mm (D) x 30 mm (H)
• Weight: 190 g
• Operating Temperature: 0°C to 40°C
• Humidity: 20% to 80% (non-condensing)

Extension Features

• Supported Devices: SLT, APT, DPT (KX-DT300/500/600, KX-NT series)
• Extra Device Port (XDP): Supports parallel connections for digital phones
• DECT Wireless: Connects DECT handsets via PBX integration
• Caller ID: FSK and DTMF support for analog and digital lines
• Signaling: Digital proprietary protocol, analog loop start
• Loop Limit: 1000 meters (digital, 24 AWG), 1200 ohms (analog)

Connectivity and Management

• Connectors: 2 x RJ45 modular jacks
• Cables: Not included; Category 5 or higher recommended
• LED Indicators: Port status (idle, active, fault)
• Management: Configurable via PBX web interface or Unified Maintenance Console
• Voicemail: Supports digital voicemail integration

Compliance and Certifications

• Standards: FCC Part 68, CE, RoHS compliant
• Warranty: 1-year limited manufacturer warranty
• Firmware: Compatible with Panasonic PBX software version 2.0 or later

Pros and Cons of the Panasonic KX-NS5170

Advantages

• Supports both analog and digital phones for flexibility.
• XDP increases extension capacity up to 12 per card.
• DECT wireless compatibility enhances mobility.
• Surge protection ensures hardware reliability.
• Easy integration with NS500/NS700 systems.

Drawbacks

• Limited to four ports, smaller than cards like the Polycom VVX expansion modules.
• Requires specific Panasonic phones for full digital features.
• Additional cabling needed for analog setups.

Trust and Support from Novatech Technologies

Novatech Technologies backs the Panasonic KX-NS5170 Hybrid Extension Card with a 1-year manufacturer’s warranty, covering defects and ensuring reliable performance. Our expert team provides installation support and ongoing maintenance to keep your PBX system optimized. Explore complementary products in our desktops category to enhance your telephony infrastructure. We are dedicated to delivering high-quality solutions and exceptional service for your business needs.
