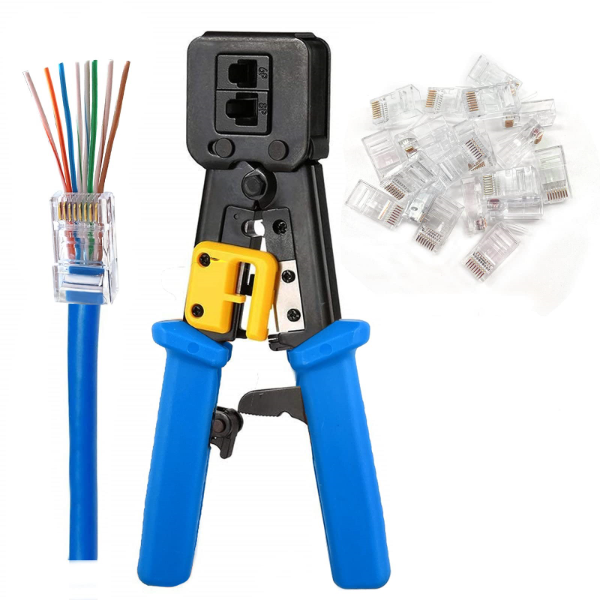

Rj45 pass through crimping tool

Revolutionary Cable Termination Technology

RJ45 Pass Through Crimping Tool is designed to deliver professional-grade results for both seasoned technicians and networking enthusiasts. This innovative tool revolutionizes traditional cable termination methods by allowing you to insert wires completely through the connector before crimping, ensuring perfect wire alignment and eliminating guesswork. The pass-through design provides crystal-clear visibility of wire arrangement, enabling you to verify proper color coding and positioning before committing to the crimp.

Professional installers working with networking infrastructure demand precision and reliability, and this tool delivers both. The ergonomic handle design reduces hand fatigue during extended use, while the precision-engineered crimping mechanism ensures consistent, secure connections every time. Whether you’re terminating Cat5e, Cat6, or Cat6a cables, this tool accommodates various cable types and maintains the integrity of high-speed data transmission requirements.

Key Benefits That Transform Your Workflow

Enhanced Accuracy and Reliability

The pass-through functionality eliminates the most common source of network connectivity issues – improper wire arrangement. Traditional crimping methods require you to estimate wire positioning inside opaque connectors, leading to frequent mistakes and wasted materials. Our tool’s transparent design allows you to visually confirm proper wire sequence before crimping, dramatically reducing rework and ensuring first-time success rates exceed 95%.

Time-Saving Efficiency

Professional network installations demand speed without sacrificing quality. This Rj45 pass through crimping tool streamlines the termination process by eliminating the tedious task of cutting wires to exact lengths before insertion. Simply strip the cable, arrange the wires, insert through the connector, trim excess wire, and crimp. This workflow reduces termination time by approximately 40% compared to traditional methods, allowing you to complete more connections per hour while maintaining superior quality standards.

Cost-Effective Solution

Investing in quality tools pays dividends through reduced material waste and improved productivity. The precision mechanism ensures reliable connections that pass network certification tests, eliminating callbacks and reputation damage. When working with routers and switches, connection reliability directly impacts network performance and customer satisfaction.

Technical Specifications and Features

Advanced Crimping Mechanism

The pass through crimping tool features a precision-engineered ratcheting mechanism that delivers consistent crimping force across all eight conductors. The hardened steel crimping dies are manufactured to exacting tolerances, ensuring uniform compression that maintains electrical continuity while providing mechanical strength. The ratcheting action prevents over-crimping or under-crimping, common issues that compromise connection integrity.

Compatibility and Versatility

This professional-grade tool supports RJ45 pass-through connectors for Cat5e, Cat6, and Cat6a applications. The adjustable crimping chamber accommodates various connector sizes while maintaining proper alignment. The tool also includes integrated wire strippers with gauge markings for 24AWG and 26AWG conductors, plus a sharp cutting blade for trimming excess wire flush with the connector face.

Ergonomic Design Excellence

The non-slip rubberized grip reduces hand fatigue during extended use, while the spring-loaded handle returns to the open position automatically. The tool’s balanced weight distribution minimizes wrist strain, and the compact profile allows access to tight spaces commonly encountered in network installations. A built-in safety lock prevents accidental activation during storage or transport.

Considerations and Limitations

Initial Learning Curve

While the pass-through design ultimately improves accuracy, technicians accustomed to traditional crimping methods may require a brief adjustment period. The workflow differs slightly from conventional approaches, and achieving optimal results requires understanding the proper wire insertion depth and trimming technique. However, most users master the technique within their first few terminations.

Specialized Connector Requirement

This tool requires RJ45 pass-through connectors, which typically cost 10-15% more than standard connectors. For high-volume installations, this cost difference may impact project budgets. Additionally, pass-through connectors may not be readily available in all locations, requiring advance planning for material procurement.

Limited Connector Types

The tool specifically designs for RJ45 pass-through connectors and cannot accommodate standard RJ45 connectors or other connector types like RJ11 or RJ12. Organizations requiring versatility across multiple connector types may need to maintain separate tools for different applications.

Why Choose Our RJ45 Pass Through Crimping Tool

Professional network installers understand that quality crimping tools represent investments in productivity and reputation. This pass through crimping tool delivers the precision and reliability demanded by today’s high-speed networking environments. The pass-through design eliminates guesswork, reduces waste, and ensures consistent results that meet or exceed industry standards.

When sourcing professional networking tools and equipment, partnering with established suppliers ensures access to quality products and reliable support. Novatech Technologies provides comprehensive networking solutions backed by technical expertise and customer service excellence.

The combination of innovative design, robust construction, and proven performance makes this RJ45 Pass Through Crimping Tool an essential addition to any professional toolkit. Whether you’re installing network infrastructure for enterprise clients or maintaining existing systems, this tool delivers the precision and reliability that separate professional installations from amateur attempts.
