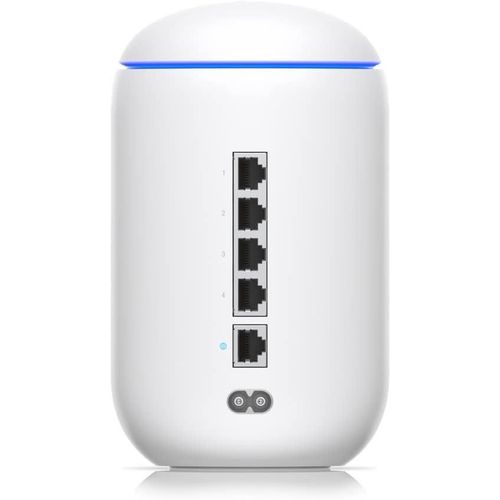

Ubiquiti Dream Machine All-in-one UniFi Gateway and Access Point

The Ubiquiti Dream Machine UniFi Gateway is an all-in-one network solution from Ubiquiti, combining a powerful gateway, WiFi 5 access point, and UniFi Network management in a compact form. Available at Novatech Technologies, this device supports robust LAN and WiFi networks with full Gigabit routing and four GbE RJ45 LAN ports. Ideal for small businesses, home offices, and growing networks, it simplifies deployment while delivering enterprise-grade performance and security.

Why Choose Dream Machine UniFi Gateway?

Integrated All-in-One Design

The Dream Machine UniFi Gateway integrates a security gateway, WiFi 5 access point, and network controller into one unit, reducing hardware needs and simplifying cabling. This all-in-one approach supports up to 50+ UniFi devices and 500+ clients, making it scalable for evolving networks.

Built-in WiFi 5 Access Point

Featuring a dual-band WiFi 5 (802.11ac) access point with 5 GHz speeds up to 1.3 Gbps and 2.4 GHz up to 400 Mbps, the Dream Machine provides seamless wireless coverage for multiple devices. It supports MU-MIMO and beamforming for efficient client handling in busy environments.

Advanced Network Management

Included UniFi Network software enables centralized management through an intuitive web interface or mobile app. Monitor traffic, configure VLANs, and apply firewall rules effortlessly, ensuring easy oversight of LAN and WiFi segments without additional controllers.

Full Gigabit Routing Performance

With a 1 Gbps IPS throughput and full offload capabilities, the Dream Machine handles high-speed routing for Gigabit internet connections. Its quad-core processor and 2 GB RAM ensure smooth operation for bandwidth-intensive tasks like streaming and remote work.

Key Use Cases for Ubiquiti Dream Machine UniFi Gateway

Small Business Networks

The Dream Machine UniFi Gateway is perfect for small offices needing reliable LAN and WiFi connectivity. It supports guest networks, VPN access, and traffic shaping, enabling secure file sharing, VoIP calls, and cloud application access for teams of up to 20 users.

Home Office Setups

For remote workers, this device creates a secure home network with WiFi 5 coverage for multiple devices. Integrate it with UniFi cameras and switches for a complete smart home ecosystem, including surveillance and smart device management.

Retail and Hospitality Environments

In stores or hotels, the Dream Machine manages guest WiFi portals and bandwidth allocation. Its four GbE LAN ports connect POS systems, printers, and IP phones, ensuring stable operations during peak hours.

Expanding Network Infrastructure

As businesses grow, the Dream Machine scales by integrating with additional UniFi access points and switches. Use it as a central hub for VLAN segmentation, enhancing security for IoT devices and sensitive data. Pair with monitors for management at Novatech Technologies’ monitors category.

Technical Specifications of Ubiquiti Dream Machine UniFi Gateway

Hardware Overview

• Processor: Quad-core ARM Cortex-A57 at 1.7 GHz
• Memory: 2 GB DDR3 RAM
• Storage: 128 GB SSD
• Dimensions: 197.6 x 197.6 x 33.5 mm (7.78 x 7.78 x 1.32 inches)
• Weight: 1.2 kg (2.65 lbs)

Networking Interfaces

• WAN Port: 1 x 10/100/1000 RJ45
• LAN Ports: 4 x 10/100/1000 RJ45 GbE
• WiFi: Dual-band WiFi 5 (802.11a/b/g/n/ac), 4×4 MU-MIMO on 5 GHz, 3×3 MIMO on 2.4 GHz
• Throughput: 1 Gbps IPS/IDS, 3.5 Gbps routing

Power and Environmental

• Power Supply: External 60W adapter (included)
• Power Consumption: 30W max
• Operating Temperature: -5 to 45°C (23 to 113°F)
• Operating Humidity: 10 to 90% non-condensing
• Certifications: FCC, CE, IC

Software Features

• Management: UniFi Network Controller (built-in)
• Security: Stateful firewall, VPN support (IPsec, OpenVPN, WireGuard)
• Additional: Hotspot portal, bandwidth analytics, deep packet inspection

Pros and Cons of Ubiquiti Dream Machine UniFi Gateway

Advantages

• Simplified Management: Built-in controller eliminates extra hardware.
• High-Speed WiFi: WiFi 5 with MU-MIMO for multiple devices.
• Gigabit Connectivity: Four LAN ports for wired expansion.
• Robust Security: Integrated firewall and VPN capabilities.
• Scalable Design: Supports up to 50 UniFi devices.

Disadvantages

• Limited WiFi Range: May require additional APs for large areas.
• No PoE Support: LAN ports lack Power over Ethernet.
• Fan Noise: Active cooling can be audible in quiet spaces.

Trust and Reliability with Novatech Technologies

Purchasing the Ubiquiti Dream Machine UniFi Gateway from Novatech Technologies ensures access to genuine Ubiquiti products with a one-year limited warranty covering hardware defects. Novatech’s support team provides expert guidance on setup, configuration, and integration with UniFi ecosystems, helping you achieve optimal network performance. For desktop management stations, explore options at Novatech Technologies’ desktops category.

Comparing Dream Machine to Other UniFi Devices

The UniFi Gateway offers more integrated features than the UniFi Security Gateway (USG), including built-in WiFi and controller, but lacks PoE switching found in the Dream Machine Pro. Compared to the UniFi Dream Router (UDR), it provides higher throughput and storage for advanced analytics. For WiFi 6 upgrades, consider the UDM Pro with an additional AP, as detailed on Ubiquiti’s official site.

Enhancing Your Network with Ubiquiti Dream Machine UniFi Gateway

The Ubiquiti Dream Machine’s UniFi OS unifies management across gateways, switches, and cameras, allowing firmware updates and analytics in one dashboard. Its rack-mountable design fits IT closets, while USB ports enable 4G/5G failover. For best results, position the WiFi AP centrally and use Cat6 cabling for LAN connections to maximize Gigabit speeds.
