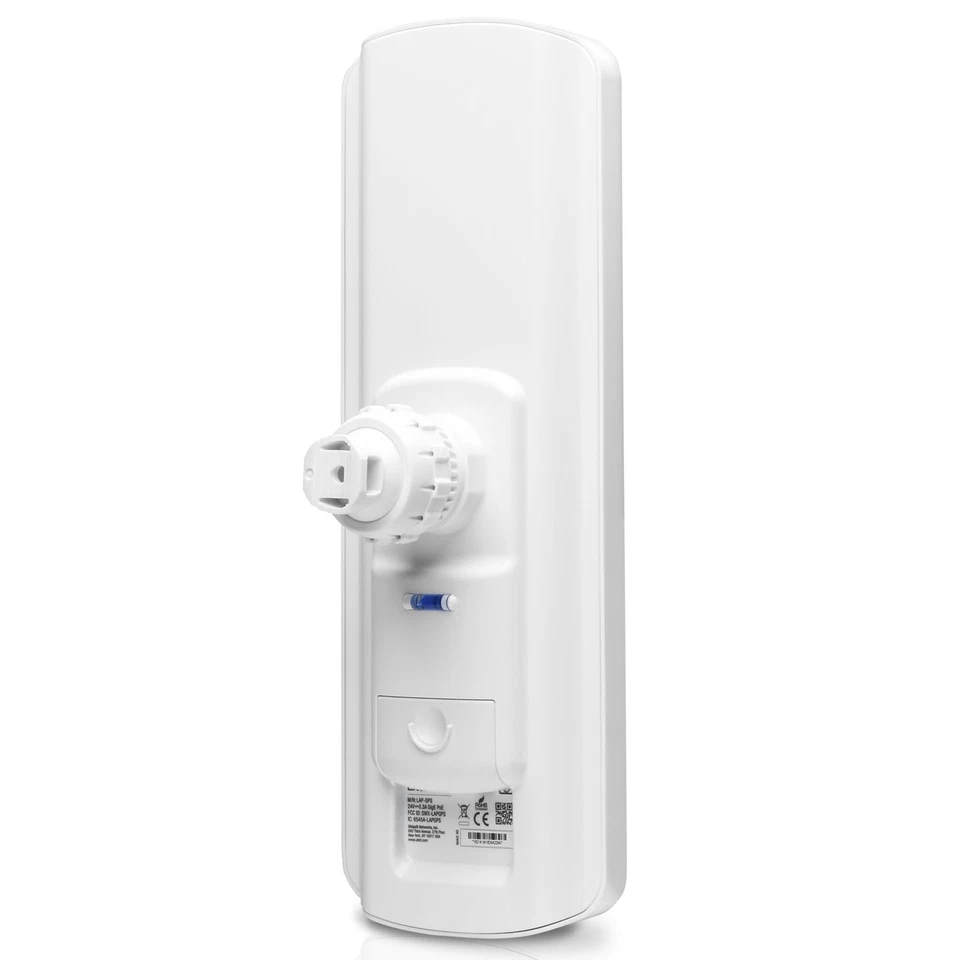

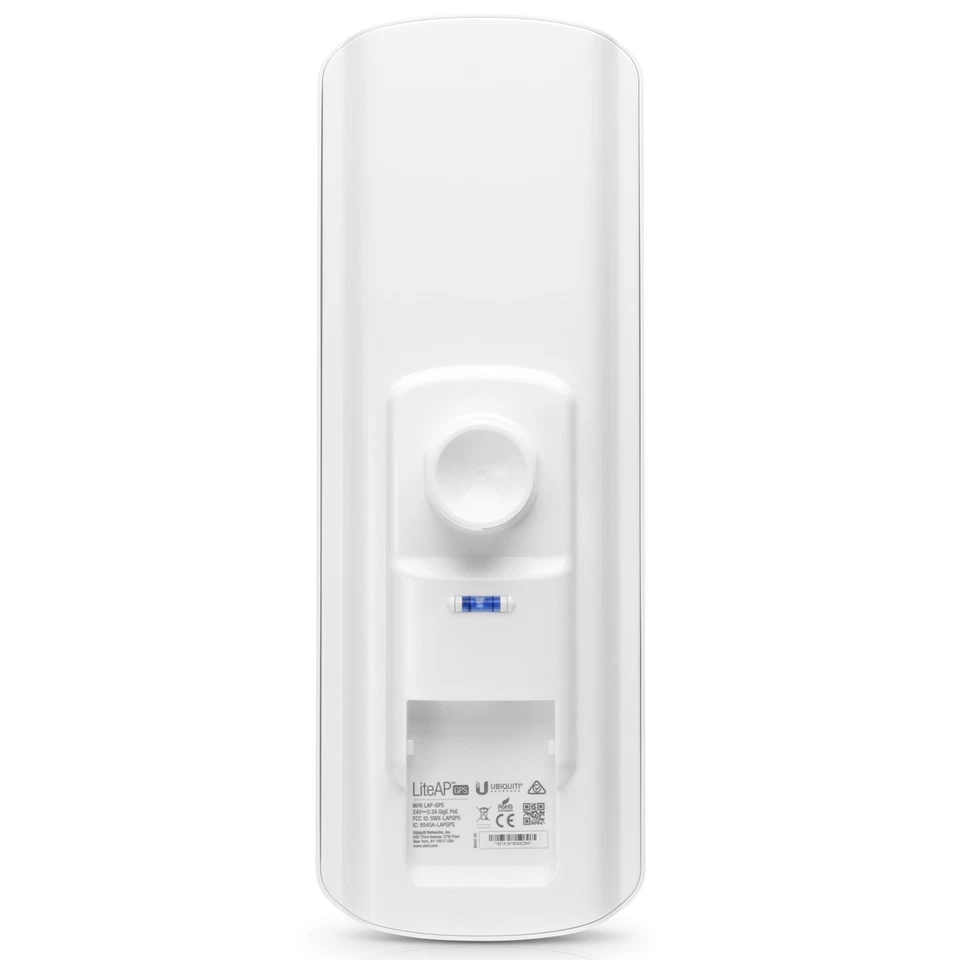

Ubiquiti Lite AP GPS LAP-GPS

Ubiquiti Lite AP GPS LAP-GPS delivers high-performance wireless connectivity. It is ideal for outdoor long-distance broadband bridging. This access point ensures reliable, scalable networks.

Overview of Ubiquiti Lite AP GPS LAP-GPS

This section highlights the standout features of the device. It combines affordability with advanced technology. The lightweight design suits various outdoor setups.

The access point operates on the 5 GHz frequency. It provides up to 450 Mbps throughput. This supports high-speed data transfer over long distances.

GPS synchronization enhances network stability. It prevents interference in dense deployments. A separate Wi-Fi radio simplifies setup via mobile devices.

The 90-degree sector antenna offers focused coverage. It ensures efficient signal distribution. The device is built for harsh outdoor conditions.

However, it lacks dual-band support. This limits compatibility with 2.4 GHz devices. The single Gigabit Ethernet port may restrict complex setups.

Power is delivered via Passive PoE. This simplifies installation in remote areas. The included adapter ensures reliable power supply.

Technical Specifications for Ubiquiti Lite AP GPS LAP-GPS

Below are the detailed specifications. They outline the device’s capabilities.

• Model: LAP-GPS
• Networking Interface: 1 x 10/100/1000 Ethernet Port
• Operating Frequency: 5150 – 5875 MHz (Worldwide)
• Antenna Gain: 17 dBi
• Max Throughput: 450+ Mbps
• Max TX Power: 25 dBm
• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Power Supply: 24V, 0.3A Gigabit PoE Adapter (Included)
• Supported Voltage Range: 20-26V DC
• Max Power Consumption: 7.1W
• Processor: Atheros MIPS 74Kc, 533 MHz
• Memory: DDR2 64 MB
• Dimensions: 360.98 x 124.57 x 71.28 mm
• Weight: 752 g (without mount)
• Wind Survivability: 200 km/h
• Wind Loading: 77 N at 200 km/h
• ESD/EMP Protection: ±24 kV Contact/Air
• Operating Temperature: -40 to 70°C
• Operating Humidity: 5 to 95% Noncondensing
• Shock and Vibration: ETSI300-019-1.4
• Certifications: FCC, IC, CE, RoHS Compliant
• Mounting: Pole Mounting Kit (Included)

These specs ensure robust performance. The antenna gain supports long-range connectivity. Low power consumption enhances efficiency.

The device withstands extreme weather. Its certifications confirm reliability. The compact size aids easy deployment.

Use Cases for Ubiquiti Lite AP GPS LAP-GPS

This access point serves diverse applications. It excels in outdoor environments. Businesses use it for wide-area Wi-Fi coverage.

Rural areas benefit from its range. It bridges internet to remote locations. The GPS sync supports multiple units without interference.

Event organizers deploy it for temporary networks. It handles high device counts effectively. Setup is quick with the mobile app.

Security systems integrate it for surveillance. It streams video feeds reliably. The 5 GHz band reduces congestion from other devices.

Small ISPs use it for cost-effective networks. It scales well for community internet. The high throughput supports multiple users.

A con is the single-band limitation. It may not suit mixed-device environments. The 17 dBi antenna may require precise alignment.

It’s ideal for point-to-multipoint setups. It covers large outdoor spaces efficiently. Schools and campuses use it for outdoor Wi-Fi.

Compatibility with Ubiquiti Lite AP GPS LAP-GPS

The device integrates with various systems. It works with airMAX AC networks. This ensures seamless operation in Ubiquiti ecosystems.

It connects via Gigabit Ethernet. This supports high-speed wired backhauls. Shielded Category 5 cables are recommended.

The mobile app, available on iOS and Android, simplifies configuration. It requires a clear sky view for GPS functionality.

It’s compatible with PoE switches supporting 24V. This allows flexible power options. No additional software is needed for basic setup.

The device supports standard 802.11ac protocols. It connects to compatible client devices. However, it lacks 2.4 GHz for older devices.

It integrates with UISP for network management. This aids large-scale deployments. Firmware updates enhance compatibility over time.

A drawback is no built-in router functionality. Users may need separate routing devices. It’s not ideal for indoor use due to its design.

Warranty and Support for Ubiquiti Lite AP GPS LAP-GPS

Trust comes from reliable support. The device includes a one-year limited warranty from Ubiquiti. This covers manufacturing defects.

Novatech Technologies offers local assistance. Contact them for setup or troubleshooting. Their team ensures quick resolutions.

Ubiquiti provides online resources and forums. These help with advanced configurations. Firmware updates are available for performance improvements.

For warranty claims, reach Ubiquiti support directly. They offer detailed guides online. This ensures smooth issue resolution.

Purchase from authorized distributors like Novatech Technologies for authenticity. Explore related products in their wireless category.

For more details, visit Ubiquiti’s official LAP-GPS page or B&H Photo’s listing. Compare with other models at Baltic Networks.

Regular maintenance ensures longevity. Protect cables from weather exposure. Ensure proper grounding to avoid ESD damage.

Pros and Cons of Ubiquiti Lite AP GPS LAP-GPS

Pros include high performance and scalability. It offers excellent value for outdoor networks.

• High 450+ Mbps throughput
• GPS sync for reduced interference
• Lightweight and durable design
• Easy mobile app setup
• Cost-effective for long-range bridging

Cons include limited frequency options. It may not suit all environments.

• Single-band 5 GHz operation
• Single Ethernet port
• Requires precise antenna alignment
• No built-in routing features
• Limited indoor applicability

These factors help buyers make informed choices. The device excels in targeted scenarios.
