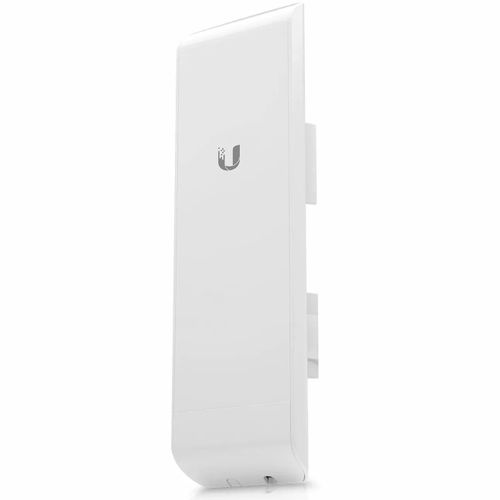

Ubiquiti NanoStation M5 (NSM5)

The NanoStation M5 Wireless CPE is a high-performance 5 GHz wireless bridge from Ubiquiti Networks, engineered for robust point-to-point (PtP) and point-to-multipoint (PtMP) connectivity. Available at Novatech Technologies, this compact device leverages airMAX technology to deliver reliable, high-speed connections up to 15 km. Ideal for businesses, ISPs, and remote deployments, it excels in environments requiring stable, interference-resistant networking solutions.

Why Choose NanoStation M5 Wireless CPE?

Exceptional Long-Range Performance

The NanoStation M5 supports wireless links over distances up to 15 km with clear line-of-sight. Its 16 dBi dual-polarity antenna focuses RF energy for strong, stable connections, making it perfect for linking remote offices, warehouses, or rural sites without expensive cabling.

High-Speed Data Transfer

Delivering throughput exceeding 150 Mbps, the NanoStation M5 handles bandwidth-intensive applications like video conferencing, cloud backups, and VoIP. The airMAX TDMA protocol ensures efficient channel use, minimizing latency and supporting multiple clients in PtMP setups.

Interference-Resistant 5 GHz Band

Operating in the less-congested 5 GHz frequency, the NanoStation M5 Wireless CPE reduces interference in noisy RF environments like urban areas or industrial zones. This ensures consistent performance for critical network operations.

Easy Installation and Management

With a compact design and included pole-mounting kit, the NanoStation M5 is simple to install. The airOS interface provides intuitive configuration tools, while a secondary PoE-enabled Ethernet port powers external devices, streamlining setups for cameras or sensors.

Applications of NanoStation M5 Wireless CPE

Business Network Connectivity

The NanoStation M5 is ideal for businesses needing to connect multiple locations. It enables seamless data transfer between offices or retail sites, supporting applications like inventory management or real-time CRM updates, enhancing operational efficiency.

ISP and WISP Solutions

Wireless Internet Service Providers can deploy the NanoStation M5 to provide broadband in underserved areas. Its PtMP capabilities allow one base station to serve multiple clients, making it a cost-effective solution for expanding network coverage.

Surveillance System Support

For security networks, the NanoStation M5 ensures reliable transmission of high-bandwidth video feeds from IP cameras. Its secondary PoE port powers compatible devices, simplifying outdoor surveillance setups. Find complementary accessories at Novatech Technologies’ computer accessories page.

Rural Internet Access

In remote communities, the NanoStation M5 bridges connectivity gaps, delivering high-speed internet to homes, schools, or clinics. Its durable, weather-resistant design ensures consistent performance in challenging outdoor conditions.

Technical Specifications of NanoStation M5 Wireless CPE

Physical and Environmental

• Dimensions: 294 x 31 x 80 mm (11.57 x 1.22 x 3.15 inches)
• Weight: 400 g (14.11 oz)
• Enclosure: Outdoor UV-stabilized plastic
• Operating Temperature: -30 to 75°C (-22 to 167°F)
• Operating Humidity: 5 to 95% non-condensing
• Certifications: FCC, IC, CE

Power and Connectivity

• Power Supply: 24V, 0.5A PoE adapter (included)
• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Max Power Consumption: 8W

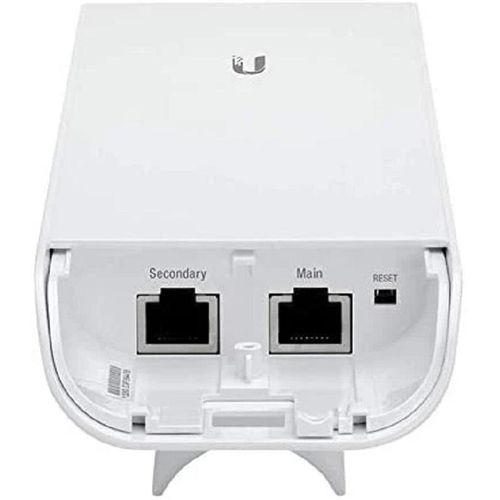

• Networking Interface: 2 x 10/100 Ethernet ports
• Secondary Port: Software-enabled PoE output

Wireless Performance

• Operating Frequency: 5170-5875 MHz (5 GHz, region-dependent)
• Antenna Gain: 14.6-16.1 dBi (dual-polarity)
• Throughput: 150+ Mbps
• Cross-Polarity Isolation: 22 dB minimum
• Wireless Standards: 802.11a/n
• Protocol: airMAX TDMA

System Specifications

• Processor: Atheros MIPS 74Kc, 560 MHz
• Memory: 64 MB DDR2, 8 MB Flash
• LED Indicators: Power, LAN1, LAN2, 4 x Signal Strength

Pros and Cons of NanoStation M5 Wireless CPE

Advantages

• High Throughput: Over 150 Mbps for data-intensive tasks.
• Long-Range Links: Supports connections up to 15 km.
• Noise Immunity: 5 GHz band minimizes interference.
• Dual Ethernet Ports: Secondary PoE port powers external devices.
• Durable Design: Built for harsh outdoor environments.

Disadvantages

• Line-of-Sight Required: Obstructions can reduce performance.
• Limited Penetration: 5 GHz struggles with walls compared to 2.4 GHz devices like the NanoStation M2.
• Setup Complexity: Optimal alignment may require technical skills.

Trust in Novatech Technologies

Purchasing the NanoStation M5 Wireless CPE from Novatech Technologies guarantees quality and support. The device includes a one-year limited warranty against manufacturing defects, and Novatech’s expert team offers assistance with installation and troubleshooting. For network monitoring, consider pairing with the HP Series 5 23.8-inch FHD Monitor or explore high-range options like the Ubiquiti PowerBeam 5AC-620.

Comparison with Other Ubiquiti Devices

Compared to the NanoStation M2, the NanoStation M5 Wireless CPE offers better noise immunity due to its 5 GHz operation but may struggle with obstacle penetration. The PowerBeam 5AC-Gen2 provides higher throughput (450+ Mbps) but is bulkier. For extreme noise environments, the NanoStation 5AC with airMAX ac technology is an alternative, though it’s pricier. Learn more about compatible monitors for network management at HP’s official store.

Optimizing Network Efficiency

The NanoStation M5’s airOS platform includes tools like airView Spectrum Analyzer for real-time RF monitoring, ensuring optimal channel selection. Its compact design and pole-mount kit simplify installation, while optional accessories like Ubiquiti’s TOUGHCable enhance outdoor reliability. For best performance, use a surge protector and ensure precise antenna alignment.
