Ubiquiti POE-24-24W-G-WH PoE Injector

The Ubiquiti POE-24-24W-G-WH PoE Injector delivers reliable power and high-speed data to Ubiquiti PoE devices. Designed for seamless integration, this 24VDC, 24W injector ensures robust performance with advanced surge protection. Available at Novatech Technologies, it’s ideal for powering outdoor network equipment like access points and cameras.

Why Choose Ubiquiti POE-24-24W-G-WH PoE Injector?

Reliable Power Delivery for Ubiquiti Devices

The Ubiquiti POE-24-24W-G-WH PoE Injector provides 24VDC at 1A, delivering 24W of power to Ubiquiti devices like airMAX and UniFi products. Its gigabit LAN port ensures high-speed data transfer without bottlenecks. The injector includes surge, clamping, and peak pulse current protection to safeguard connected devices from electrostatic discharge (ESD) events, a common cause of outdoor device failures.

• Stable Power Supply: Ensures consistent performance for PoE devices.
• High-Speed Connectivity: Supports gigabit Ethernet for fast data transfer.
• Compact Design: Easy to integrate into various network setups.

A potential drawback is that it’s optimized for Ubiquiti devices, so compatibility with non-Ubiquiti PoE equipment may require additional configuration.

Versatile Applications for Ubiquiti POE-24-24W-G-WH PoE Injector

Wireless Access Points

The POE-24-24W-G-WH is perfect for powering Ubiquiti airMAX access points, enabling reliable wireless connectivity for WISPs. It supports long-range setups, ensuring stable power delivery over extended cable runs. Pair it with Ubiquiti’s airFiber products for enhanced performance in outdoor deployments.

IP Surveillance Systems

Outdoor IP cameras, such as those compatible with HP’s Series 5 monitors, benefit from the injector’s robust power delivery and ESD protection. This ensures uninterrupted surveillance in harsh weather conditions, ideal for security applications.

Small Business Networks

Small businesses can use the POE-24-24W-G-WH to power VoIP phones or UniFi access points, simplifying cabling by combining power and data over a single Ethernet cable. Its compact size makes it easy to install in tight spaces, though proper grounding is essential for optimal surge protection.

Compatibility with Ubiquiti and Beyond

The POE-24-24W-G-WH is designed for Ubiquiti PoE devices, including airGateway, UniFi, and airMAX products. It supports 2-pair powering (pins 4, 5 (+) and 7, 8 (-)) and is compatible with gigabit Ethernet networks. While primarily for Ubiquiti ecosystems, it can power other 24V passive PoE devices, though users should verify compatibility. For advanced setups, it pairs well with HP’s networking solutions.

Technical Specifications of Ubiquiti POE-24-24W-G-WH PoE Injector

Hardware Details

• Dimensions: 3.47 x 2.24 x 1.30 inches (88 x 57 x 33 mm)
• Weight: 5.59 oz (158.5 g)
• Output Voltage: 24VDC @ 1.0A
• Output Power: 24W
• Input Voltage: 100-240VAC @ 50/60Hz
• Input Current: 0.6A @ 120VAC, 0.4A @ 240VAC
• Inrush Current: <60A Peak @ 120VAC, <120A Peak @ 230VAC
• Efficiency: 80%+
• Output Ripple: 1% Max
• Switching Frequency: 65 kHz
• Line Regulation: ≤ 3%
• Load Regulation: ≤ 5%
• Surge Protection: 11V Data, 60V Power
• Max Surge Discharge: 1500A (8/20 µs) Power
• Peak Pulse Current: 36A (10/1000 µs) Data
• Shunt Capacitance: <5 pF Data
• Response Time: <1 ns
• Operating Temperature: 0 to 40°C (32 to 104°F)
• Storage Temperature: -30 to 70°C (-22 to 158°F)
• Operating Humidity: 35 to 95% non-condensing
• AC Connector: IEC-320 C6
• Data IN/PoE: RJ45 Shielded Socket
• Certifications: CE, FCC, IC, UL

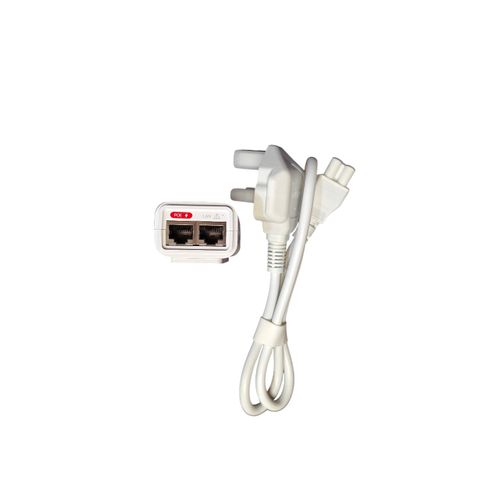

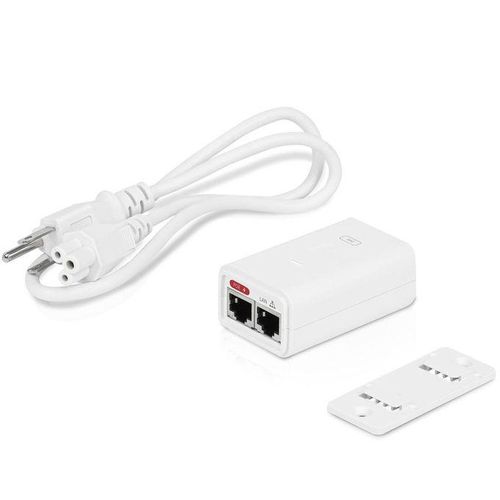

Package Contents

• POE-24-24W-G-WH PoE Injector
• Power Cord
• Quick Start Guide

The injector’s robust build ensures durability, but users must ensure proper grounding to maximize surge protection efficacy.

Benefits of Ubiquiti POE-24-24W-G-WH PoE Injector

Simplified Network Installation

The POE-24-24W-G-WH combines power and data over a single Ethernet cable, reducing cable clutter and installation time. Its wall-mountable design and included power cord make setup straightforward, even in compact environments. The reset button and remote reset capability add convenience for network management.

• Easy Setup: Plug-and-play design requires no software configuration.
• Flexible Placement: Compact and wall-mountable for versatile installation.
• Remote Management: Reset button simplifies device troubleshooting.

A limitation is that it lacks a LAN activity indicator, which may inconvenience users monitoring network status.

Enhanced Device Protection

The injector’s surge protection features, including clamping and maximum surge discharge, safeguard connected devices from ESD and voltage spikes. When used with Ubiquiti TOUGHCable, it provides earth grounding, further enhancing protection. This is critical for outdoor deployments exposed to lightning or power surges.

Trust and Support from Novatech Technologies

When you purchase the Ubiquiti POE-24-24W-G-WH PoE Injector from Novatech Technologies, you receive a reliable product backed by a one-year manufacturer warranty. Novatech Technologies offers expert customer support to assist with setup and troubleshooting, ensuring your network operates smoothly. Shop with confidence from a trusted Kenyan retailer committed to quality networking solutions.
