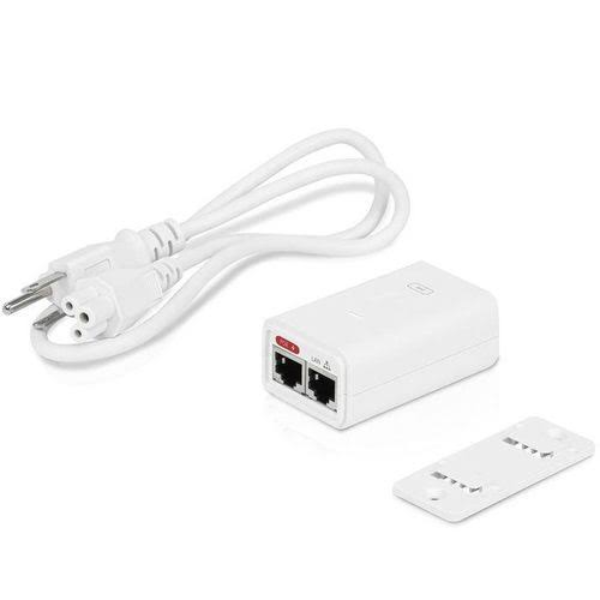

Ubiquiti Networks U-POE-AT PoE+ Adapter 48V DC

The Ubiquiti U-POE-AT PoE+ Adapter delivers robust 30W power and gigabit data to UniFi PoE+ devices. Engineered for reliability, it offers surge protection and seamless integration with Ubiquiti’s ecosystem. Available at Novatech Technologies, this adapter ensures stable performance for access points, cameras, and more.

Why Choose Ubiquiti U-POE-AT PoE+ Adapter?

Powerful Performance for PoE+ Devices

The Ubiquiti U-POE-AT PoE+ Adapter provides 48V DC at 0.65A, delivering up to 30W of PoE+ power compliant with IEEE 802.3at standards. Its gigabit LAN port ensures high-speed data transfer, ideal for bandwidth-intensive applications. Built-in surge, clamping, and peak pulse current protection safeguard devices from electrical surges, ensuring uptime in challenging environments.

• High Power Output: Supports demanding PoE+ devices like U6 access points.
• Gigabit Connectivity: Maintains fast data speeds without bottlenecks.
• Robust Protection: Shields devices from ESD and voltage spikes.

A limitation is the lack of a LAN activity indicator, which may hinder real-time network monitoring.

Applications for Ubiquiti U-POE-AT PoE+ Adapter

Enterprise Wireless Networks

The U-POE-AT powers UniFi access points like the U6-LR, enabling high-performance Wi-Fi for offices and campuses. It reduces reliance on PoE switches, simplifying deployments. Pair it with Ubiquiti’s UniFi solutions for scalable wireless networks.

Advanced Surveillance Systems

Outdoor IP cameras, such as Ubiquiti’s UVC-AI-Pro, benefit from the adapter’s 30W power and surge protection. It ensures reliable operation when integrated with HP’s networked displays. This setup is ideal for security-conscious businesses.

Small Business Connectivity

Small businesses can use the U-POE-AT to power VoIP phones or UniFi mesh devices, streamlining cabling by combining power and data. Its compact design fits tight spaces, though proper grounding is required for optimal surge protection.

Compatibility with Modern Networks

The U-POE-AT is optimized for Ubiquiti UniFi PoE+ devices, including U6-LR, U6-Pro, and UVC-G5-PTZ. It supports 2-pair powering (pins 4, 5 (+) and 7, 8 (-)) and complies with 802.3at standards, making it versatile for other PoE+ devices. For high-speed setups, it pairs well with HP’s networking solutions. Users should confirm compatibility with non-Ubiquiti devices to avoid power mismatches.

Technical Specifications of Ubiquiti U-POE-AT PoE+ Adapter

Hardware Specifications

• Dimensions: 3.66 x 2.44 x 1.38 inches (93 x 62 x 35 mm)
• Weight: 5.5 oz (156 g)
• Output Voltage: 48V DC @ 0.65A
• Output Power: 30W
• Input Voltage: 100-240V AC @ 50/60Hz
• Input Current: 0.75A Max
• Inrush Current: <100A Peak @ 230VAC
• Efficiency: 87%+
• Output Ripple: 1% Max
• Switching Frequency: 70 kHz Max
• Line Regulation: ≤ 3%
• Load Regulation: ≤ 5%
• Surge Protection: Difference and common mode
• Clamping Protection: 11V Data, 60V Power
• Max Surge Discharge: 1500A (8/20 µs) Power
• Peak Pulse Current: 36A (10/1000 µs) Data
• Shunt Capacitance: <5 pF Data
• Response Time: <1 ns
• Operating Temperature: 0 to 40°C (32 to 104°F)
• Storage Temperature: -30 to 70°C (-22 to 158°F)
• Operating Humidity: 10 to 95% non-condensing
• AC Connector: IEC-320 C6
• Data IN/PoE: RJ45 Shielded Socket
• Certifications: CE, FCC, IC, UL

Package Contents

• U-POE-AT PoE+ Adapter
• Power Cord
• Quick Start Guide

The adapter’s compact design simplifies installation, but grounding is critical for surge protection efficacy.

Benefits of Ubiquiti U-POE-AT PoE+ Adapter

Streamlined Installation

The U-POE-AT combines power and data over a single Ethernet cable, reducing cable clutter. Its compact size (3.66 x 2.44 inches) and wall-mountable design allow flexible placement. The LED indicator provides status monitoring, though the absence of a reset button may limit remote management.

• Simplified Cabling: Combines power and data for efficient setups.
• Compact Form Factor: Fits easily in constrained environments.
• Status Monitoring: LED indicator for quick diagnostics.

A drawback is the lack of remote reset capability, which may inconvenience advanced users.

Enhanced Device Protection

The adapter’s surge protection features, including 1500A max surge discharge and 11V data clamping, ensure device longevity. When paired with Ubiquiti TOUGHCable, it provides robust grounding, critical for outdoor deployments exposed to lightning or power surges.

Trust and Support from Novatech Technologies

Purchasing the Ubiquiti U-POE-AT PoE+ Adapter from Novatech Technologies ensures reliability and support. The product includes a one-year manufacturer warranty covering defects. Novatech Technologies offers expert assistance for setup and troubleshooting, making it a trusted choice for networking solutions in Kenya.
