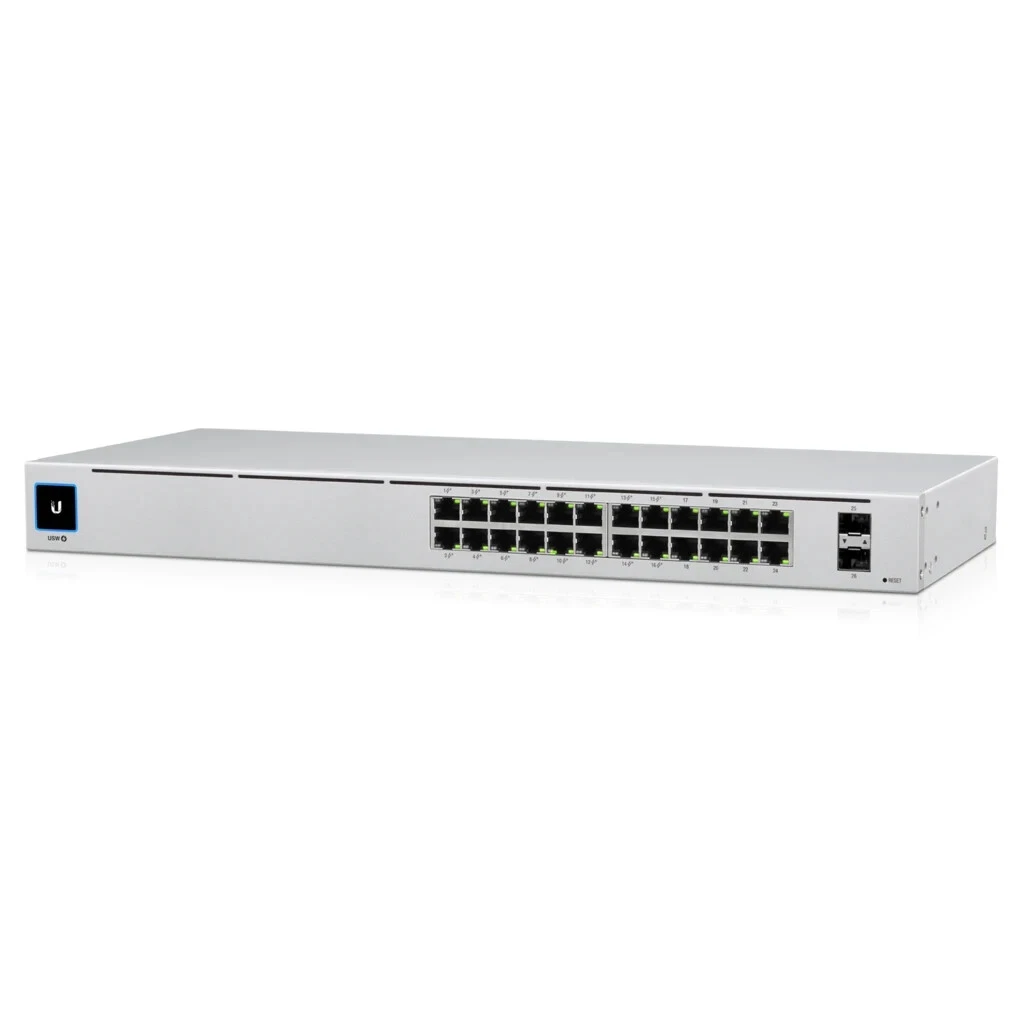

UniFi Switch USW-24-PoE (USW-24-PoE)

The UniFi Switch USW-24-PoE is a versatile, fully managed Layer 2 switch designed for small to medium-sized networks. With 16 Gigabit PoE+ ports, 8 Gigabit RJ45 ports, and a 95W PoE budget, it powers devices like access points and cameras. Its two 1G SFP ports ensure reliable uplinks. Available at Novatech Technologies, this switch delivers performance and flexibility for growing businesses.

Why Choose the UniFi Switch USW-24-PoE?

Efficient Network Performance

The UniFi Switch USW-24-PoE offers a switching capacity of 52 Gbps and a non-blocking throughput of 26 Gbps. Its 38.69 Mpps forwarding rate supports high-bandwidth tasks like video streaming and file transfers. The 24 Gigabit ports provide fast, reliable connectivity for workstations and servers, comparable to setups using the HP Series 5 23.8-inch FHD Monitor.

Power over Ethernet Support

With a 95W PoE budget, this switch powers up to 16 devices via 802.3at PoE+ ports, each delivering up to 32W. It supports UniFi access points, IP cameras, and VoIP phones, reducing cabling needs. The auto-sensing PoE feature ensures compatibility with various devices, making it ideal for small offices or retail spaces.

Streamlined Management

Managed through the UniFi Network platform, the USW-24-PoE offers a user-friendly interface for configuration and monitoring. Features like VLAN, QoS, and port mirroring enhance network efficiency. The 1-inch LCM display provides real-time status updates, simplifying on-site management for IT administrators.

Key Applications of UniFi Switch USW-24-PoE

Small Business Networking

The UniFi Switch USW-24-PoE is ideal for small businesses needing reliable connectivity. Its 16 PoE+ ports power wireless access points and VoIP phones, while the 8 non-PoE ports connect desktops or servers. The two 1G SFP ports support fiber uplinks for extended network reach, as noted in reviews of similar switches on Network Switch Guides.

Surveillance Systems

This switch supports IP surveillance with its 95W PoE budget, powering up to 16 cameras. VLAN and QoS features prioritize video traffic for smooth footage. Its compact, fanless design ensures silent operation, making it suitable for quiet environments like libraries or small offices.

VoIP and Unified Communications

For VoIP setups, the USW-24-PoE ensures clear calls with Voice VLAN support. Its PoE+ ports power phones, simplifying installations in call centers or offices. The switch’s performance handles simultaneous data and voice traffic, ensuring reliable communication.

Compatibility and Deployment Flexibility

Device Compatibility

The UniFi Switch USW-24-PoE supports 802.3at PoE+ devices, including UniFi access points and cameras. It is compatible with third-party devices like Axis or Hikvision cameras. The two 1G SFP ports work with Ubiquiti’s SFP modules, enabling fiber connectivity. Pair it with products from Novatech Technologies’ networking range for seamless integration.

Installation Options

Designed for desktop, wall, or rackmount deployment (kit sold separately), the switch measures 442.4 x 200 x 43.7 mm and weighs 2.79 kg. Its fanless design ensures silent operation, ideal for noise-sensitive environments. The external PSU allows flexible placement but may require additional space planning.

Technical Specifications

• Ports:
  • 16 x GbE RJ45 (PoE+, 32W, 1G/100M/10M)
  • 8 x GbE RJ45 (1G/100M/10M)
  • 2 x 1G SFP ports
• Switching Capacity: 52 Gbps
• Non-Blocking Throughput: 26 Gbps
• Forwarding Rate: 38.69 Mpps
• PoE Budget: 95W
• PoE Standard: 802.3at (PoE+)
• Power Consumption: 25W (excluding PoE), 120W (including PoE)
• Power Method: 100-240VAC/50-60 Hz, Universal Input
• Dimensions: 442.4 x 200 x 43.7 mm (17.42 x 7.87 x 1.72 in)
• Weight: 2.79 kg (6.15 lb)
• Operating Temperature: -5°C to 45°C
• Management: UniFi Network App, 1″ LCM display
• Layer 2 Features: VLAN, QoS, Port Mirroring, STP/RSTP/MSTP
• VLAN Support: 4,096 VLANs
• MAC Address Table: 8,000 entries
• Certifications: CE, FCC, IC

Advantages and Limitations

Key Benefits

The UniFi Switch USW-24-PoE provides reliable Gigabit connectivity for small networks. Its 95W PoE budget powers multiple devices, reducing cabling. The fanless design ensures silent operation, while the UniFi platform simplifies management. The SFP ports offer flexible uplinks, as praised in user reviews on networking forums.

Potential Drawbacks

The 95W PoE budget may limit larger deployments, and the lack of PoE++ support restricts compatibility with high-power devices like WiFi 6E access points. The external PSU and optional rackmount kit add costs, as noted in Reddit discussions. Initial setup may require manual configuration for complex networks.

Trust and Support with UniFi Switch USW-24-PoE

Purchasing from Novatech Technologies includes a one-year warranty and access to Ubiquiti’s support resources. Regular firmware updates via the UniFi Network platform ensure security and performance. Novatech’s expert team provides setup and optimization guidance, ensuring a reliable experience for businesses in Kenya.
