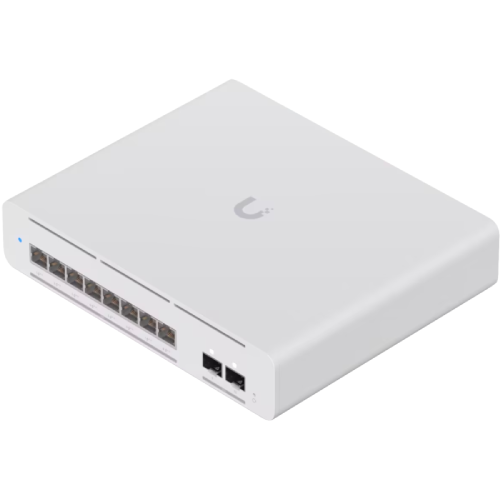

Ubiquiti USW-Pro-8-PoE Switch

The Ubiquiti USW-Pro-8-PoE Switch is a compact, Layer 3 managed switch for high-performance networking. It features 6 GbE PoE+ ports, 2 GbE PoE++ ports, and 2 10G SFP+ ports with a 120W PoE budget. Ideal for small businesses and advanced home setups, it powers demanding devices efficiently. Available at Novatech Technologies, this switch ensures reliable connectivity.

Why Choose the Ubiquiti USW-Pro-8-PoE Switch?

Superior Connectivity Options

The Ubiquiti USW-Pro-8-PoE Switch delivers a switching capacity of 44 Gbps and non-blocking throughput of 22 Gbps. Its forwarding rate of 32.64 Mpps handles intensive tasks like 4K streaming and data backups. The 10G SFP+ ports provide high-speed uplinks for fiber connections, similar to advanced setups in the HP Series 5 23.8-inch FHD Monitor.

Advanced PoE Functionality

With a 120W PoE budget, this switch supports 802.3at PoE+ on 6 ports up to 30W each and 802.3bt PoE++ on 2 ports up to 60W. It powers WiFi access points, PTZ cameras, and VoIP phones without extra adapters. The auto-sensing technology ensures safe power delivery to compatible devices.

Intelligent Layer 3 Management

Managed via the UniFi Network platform, the USW-Pro-8-PoE Switch offers Layer 3 features like inter-VLAN routing and static routing. Its 1.3-inch touchscreen provides on-device monitoring. This setup simplifies network segmentation and optimization for IT teams.

Key Applications

Small Office and Business Networks

The Ubiquiti USW-Pro-8-PoE Switch suits small offices needing robust connectivity. Its PoE ports power multiple access points for WiFi coverage, while SFP+ uplinks connect to core networks. Businesses can use it for VoIP systems with QoS prioritization, ensuring clear communications.

Security and Surveillance Setups

This switch excels in surveillance with PoE++ support for high-power PTZ cameras. The 120W budget powers up to 8 devices, enabling comprehensive monitoring. VLAN features isolate video traffic, reducing latency in retail or home security systems, as discussed in networking best practices.

Home Labs and Prosumers

Tech enthusiasts benefit from Layer 3 capabilities for VLAN testing and routing. The compact design fits home racks, powering NAS drives or switches. SFP+ ports support 10G connections for fast file transfers in development environments.

Compatibility and Deployment Flexibility

Broad Device Support

The Ubiquiti Switch works with 802.3at/at/bt devices, including UniFi APs and third-party cameras from Axis. SFP+ ports accept Ubiquiti modules for multi-mode fiber. It integrates with Novatech Technologies’ accessories for complete solutions.

Versatile Installation

Rackmount or desktop options make deployment easy. Dimensions are 200 x 160 x 43.7 mm, weighing 1.4 kg. Fanless operation ensures silence for offices. External PSU allows flexible power management.

Technical Specifications

• Ports:
  • 6 x GbE RJ45 (PoE+, 30W, 1G/100M/10M)
  • 2 x GbE RJ45 (PoE++, 60W, 1G/100M/10M)
  • 2 x 10G SFP+ (10G/1G)
• Switching Capacity: 44 Gbps
• Non-Blocking Throughput: 22 Gbps
• Forwarding Rate: 32.64 Mpps
• PoE Budget: 120W
• PoE Standards: 802.3at (PoE+), 802.3bt (PoE++)
• Power Consumption: 20W (excluding PoE), 140W (including PoE)
• Power Method: 100-240VAC/50-60 Hz, External PSU
• Dimensions: 200 x 160 x 43.7 mm (7.87 x 6.3 x 1.72 in)
• Weight: 1.4 kg (3.09 lb)
• Operating Temperature: -5°C to 45°C
• Management: UniFi Network App, 1.3″ touchscreen
• Layer 3 Features: Inter-VLAN routing, Static routing, DHCP relay
• Layer 2 Features: VLAN, QoS, LACP, STP/RSTP/MSTP
• VLAN Support: 255 VLANs
• MAC Address Table: 8,000 entries
• Certifications: CE, FCC, IC

Advantages and Limitations

Key Benefits

The Ubiquiti USW-Pro-8-PoE Switch combines compact size with powerful PoE++ output. Its 10G SFP+ ports future-proof networks for high-speed needs. Layer 3 features enable efficient routing without extra hardware. Silent operation suits various environments.

Potential Drawbacks

The 120W PoE budget limits very large deployments. Only two PoE++ ports may constrain high-power device counts. External PSU adds bulk, and rack kit is separate, increasing setup costs.

Trust and Support with Ubiquiti USW-Pro-8-PoE Switch

Buying from Novatech Technologies includes a one-year warranty and Ubiquiti support. Firmware updates maintain security. Novatech offers expert installation advice for Kenyan users.
