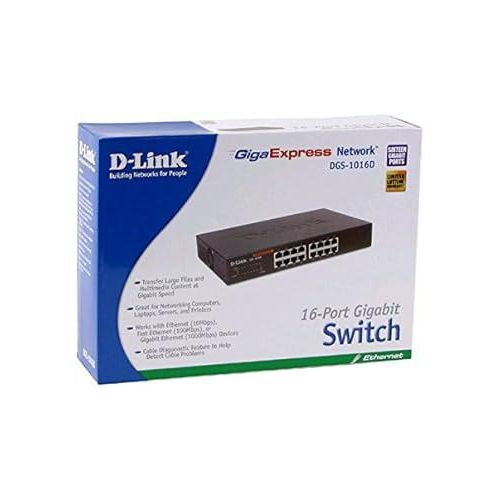

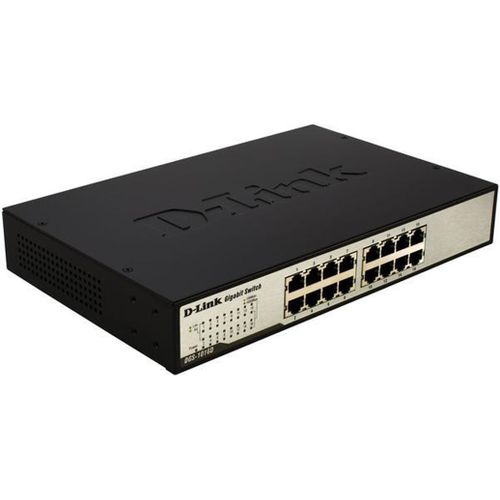

D-Link DGS-1016D/B 16-port 10/100/1000Base-T Unmanaged Switch

The D-Link DGS-1016D/B Gigabit Switch is a high-performance, unmanaged solution for expanding small to medium networks. Featuring 16 10/100/1000 Mbps ports, it delivers reliable Gigabit Ethernet connectivity for homes and offices. Available at Novatech Technologies, this switch ensures seamless data transfer with energy-efficient features and simple setup.

Why Choose D-Link DGS-1016D/B Gigabit Switch?

Reliable Gigabit Performance

The D-Link DGS-1016D/B Gigabit Switch provides 16 Gigabit Ethernet ports, supporting full-duplex speeds up to 2000 Mbps per port for efficient data transfer. Its auto-MDI/MDIX feature eliminates the need for crossover cables, simplifying setup. With a 32 Gbps switching capacity and IEEE 802.3az Energy Efficient Ethernet (EEE), it optimizes performance while reducing power consumption.

• High-Speed Ports: 16 Gigabit Ethernet ports for fast connections.
• Plug-and-Play: No configuration required for instant deployment.
• Energy Efficient: 802.3az EEE lowers power usage during idle times.

A limitation is the lack of PoE support, which may require separate power sources for devices like IP cameras.

Versatile Use Cases for D-Link DGS-1016D/B Gigabit Switch

Small Office Networking

The DGS-1016D/B is ideal for small offices, connecting workstations, servers, and VoIP phones with Gigabit speeds. Its rack-mountable metal housing fits 19-inch racks, and the fanless design ensures quiet operation. Pair it with HP’s Series 5 monitors for efficient network monitoring in professional environments.

Home Network Expansion

In homes, the switch expands connectivity for smart TVs, gaming consoles, and PCs, ensuring stable Gigabit connections for streaming or gaming. It integrates with Ubiquiti’s UniFi solutions for hybrid wired-wireless setups, enhancing bandwidth for multiple devices.

Surveillance Systems

For surveillance setups, the DGS-1016D/B connects up to 16 IP cameras, supporting high-resolution video feeds without bottlenecks. Its flow control minimizes packet loss, ideal for reliable monitoring. However, for PoE cameras, additional injectors are needed. Combine with HP’s networking equipment for streamlined integration.

Compatibility with Network Devices

The DGS-1016D/B supports IEEE 802.3, 802.3ab, 802.3u, and 802.3x standards, ensuring compatibility with 10/100/1000 Mbps devices like computers, routers, and IP cameras. It uses standard Cat5e/Cat6 cables and auto-negotiates speed and duplex modes. While unmanaged, it pairs well with managed switches for larger networks.

Technical Specifications of D-Link DGS-1016D/B Gigabit Switch

Hardware Overview

• Ports: 16 x 10/100/1000 Mbps RJ45
• Standards: IEEE 802.3, 802.3ab, 802.3u, 802.3x, 802.3az
• Switching Fabric: 32 Gbps
• MAC Address Table: 8K entries
• Forwarding Rate: 23.8 Mpps
• LED Indicators: Power, Link/Activity, Speed per port
• Power Input: 100-240V AC, 50/60 Hz
• Max Power Consumption: 10.8W
• Dimensions: 11.02 x 7.09 x 1.73 inches (280 x 180 x 44 mm)
• Weight: 2.87 lbs (1.3 kg)
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Operating Humidity: 10% to 90% non-condensing
• Certifications: FCC, CE, RoHS, NDAA/TAA compliant

Package Contents

• DGS-1016D/B Gigabit Switch
• Power Adapter
• Rackmount Kit
• Quick Installation Guide

The durable metal housing supports desktop or rack mounting, but ensure proper ventilation for optimal performance.

Benefits of D-Link DGS-1016D/B Gigabit Switch

Seamless Gigabit Expansion

The switch’s auto-sensing ports detect network speeds and adjust for full or half-duplex, ensuring reliable data flow. IEEE 802.3x flow control minimizes packet loss, while store-and-forward switching enhances data integrity. Its energy-efficient design reduces costs by powering down idle ports via 802.3az EEE.

• Auto-Sensing Ports: Adjusts for 10/100/1000 Mbps and duplex modes.
• Flow Control: Reduces dropped packets for stable transfers.
• Eco-Friendly: Saves power during low activity.

A drawback is the unmanaged nature, lacking advanced features like VLANs or QoS for complex networks.

Quiet and Durable Operation

The fanless, rack-mountable design ensures silent operation, ideal for noise-sensitive environments. The metal case provides EMI protection and durability, with NDAA/TAA compliance for public sector use. However, it may generate heat under heavy load, requiring adequate airflow.

Trust and Support from Novatech Technologies

Purchasing the D-Link DGS-1016D/B Gigabit Switch from Novatech Technologies guarantees a high-quality product with a limited lifetime warranty against defects. Novatech Technologies offers expert support for setup and troubleshooting, ensuring dependable Gigabit networking for customers in Kenya.
