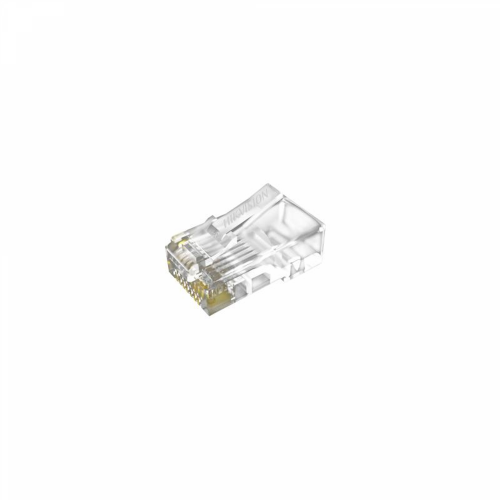

Hikvision DS-1M6AUA Cat6A Unshielded Connector

The Hikvision DS-1M6AUA Cat6A Unshielded Connector provides reliable termination for high-performance Cat6A cabling. This RJ45 plug supports 10 Gigabit Ethernet over 100 meters. It uses a toolless design for fast and easy field installation. The pack of 100 pieces suits large-scale network projects and surveillance deployments.

Explore Hikvision DS-1M6AUA Cat6A Unshielded Connector Features

Cat6A performance meets TIA/EIA-568-C.2-10 standards. Bandwidth up to 500 MHz supports demanding applications.

U/UTP compatible design works with unshielded twisted pair cables. Gold-plated contacts ensure low contact resistance.

23 AWG to 22 AWG solid or stranded conductors accepted. 3-prong pin design grips wires securely.

Toolless IDC termination reduces installation time significantly. Transparent housing allows visual wire verification.

Strain relief boot protects cable bend radius. Color-coded wiring scheme follows T568B configuration.

Practical Applications of Hikvision DS-1M6AUA Cat6A Unshielded Connector

Office networks terminate Cat6A cables at wall plates and patch panels. Fast connections support Gigabit and 10G speeds.

Surveillance installations connect IP cameras to PoE switches. High bandwidth handles multiple 4K video streams.

Data centers create custom patch cords quickly. Toolless design speeds up server room builds.

Home entertainment setups terminate long runs to smart devices. Users enjoy smooth 4K and 8K streaming.

Educational facilities wire computer labs and AV systems. Connectors support reliable high-speed access.

This connector works seamlessly with networking cabling.

Compatibility Details for Hikvision DS-1M6AUA Cat6A Unshielded Connector

Compatible with Cat6A U/UTP cables using 23–22 AWG conductors. Supports both solid and stranded wire types.

Meets requirements for 10GBASE-T over 100 meters. Backward compatible with Cat6 and Cat5e terminations.

Suitable for PoE++ applications up to IEEE 802.3bt (90 W). Gold-plated pins ensure low resistance and durability.

Toolless design requires no crimping tool for termination. Transparent cover allows easy wire pair verification.

T568B wiring scheme standard for most installations. Works with all standard RJ45 jacks and patch panels.

For complete specifications, refer to the official resource at Hikvision.

Technical Specifications

• Product Model: DS-1M6AUA(O-STD)
• Connector Type: RJ45 (8P8C)
• Category: Cat6A
• Shielding: Unshielded (U/UTP)
• Conductor Gauge: 23 AWG to 22 AWG
• Conductor Type: Solid or stranded copper
• Bandwidth: 500 MHz
• Data Rate Support: 10/100/1000/10000 Mbps
• Maximum Channel Length: 100 m (10GBASE-T)
• Contact Material: Gold-plated phosphor bronze
• Contact Plating: 50 µin gold over nickel
• Termination: Toolless IDC (Insulation Displacement Contact)
• Wiring Scheme: T568A/T568B compatible (T568B default)
• Housing Material: Clear polycarbonate
• Boot/Strain Relief: Integrated flexible boot
• Insertion Life: ≥ 750 mating cycles
• Operating Temperature: -40 °C to 70 °C
• Certifications: CE, RoHS, TIA/EIA-568-C.2-10 compliant
• PoE Compatibility: IEEE 802.3af/at/bt (up to 90 W)
• Packaging: 100 pieces per pack

Key Benefits of Hikvision DS-1LN6U-SC0 CAT6 Cable

Toolless termination saves time during large installations. Gold-plated contacts ensure reliable low-resistance connections.

Supports 10 Gigabit Ethernet over full 100 meters. Accepts both solid and stranded Cat6A cables.

Transparent housing allows quick wire verification. Strain relief boot protects cable integrity.

500 MHz bandwidth future-proofs network performance. Cost-effective pack size for professional projects.

It pairs perfectly with computer accessories and Cat6A cabling. Easy and secure termination.

Explore Cat6A connector benefits in this overview at CNET.
