Lightwave LW-ODF-24LC-Load-RM Fiber Patch Panel

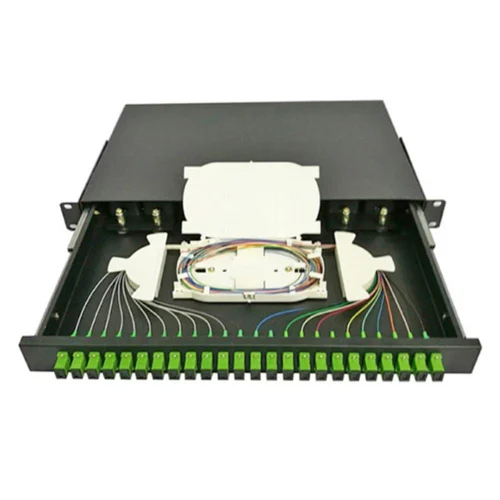

The Lightwave LW-ODF-24LC-Load-RM Fiber Patch Panel optimizes fiber organization with 24 LC ports in a 19-inch rack-mount frame. This loaded unit, complete with splice tray, facilitates high-density connections for enterprise and telecom networks. Novatech Technologies delivers this engineered solution for streamlined terminations, ensuring low-loss performance and easy access in demanding data environments.

Detailed Use Cases and Compatibility

Enterprise Data Center Deployments

IT managers install this panel in server rooms for core-to-edge interconnections. The 24 LC duplex ports handle multimode OM4 fibers for 40G Ethernet over 150 meters. Pre-loaded pigtails splice to trunk cables, reducing deployment time by 40 percent. It integrates with Cisco or Juniper switches for scalable spine-leaf architectures.

Telecom Backbone Terminations

Providers use this ODF for PON splitter outputs in central offices. The splice tray secures 48 fiber fusions for NG-PON2 distributions. LC connectors support single-mode G.657 for bend-insensitive runs. Compatible with Huawei or Nokia OLTs, it ensures reliable broadband delivery to thousands of subscribers.

Campus-Wide Fiber Distribution

Universities deploy this panel in IDF closets for building-to-building links. It terminates horizontal cabling for Wi-Fi 6 access points and VoIP phones. The rack-mount design fits 2U spaces alongside patch fields. Pair it with networking routers for unified campus management.

High-Traffic Commercial Hubs

Retail chains connect this panel to fiber rings for POS and digital signage. LC ports accommodate hybrid SM/MM setups with adapters. The loaded configuration supports quick re-patching during store expansions. For cable management, select from computer accessories like Velcro ties.

Technical Specifications

Adapter and Port Density

24 LC duplex adapters yield 48-fiber capacity in a precision-machined aluminum chassis. Each port features zirconia ceramic ferrules for 0.1 dB typical insertion loss. Supports APC/UPC polish options for reflection-sensitive applications. Modular adapter plates allow field reconfiguration without tools.

Splice Tray and Management System

Removable splice tray accommodates 48 heat-shrink or mechanical splices with fiber coiling rings. Integrated cable organizers enforce 35 mm bend radii to prevent micro-bends. Rear bulkhead accepts 25 mm cable entries with rubber grommets. Pigtails use 2-meter 900 μm buffered OM4 multimode fibers.

Rack-Mount and Structural Integrity

Standard 19-inch width with 2U height optimizes rack utilization. Dimensions: 482 x 88 x 300 mm, unloaded weight: 5.2 kg. Front bezel with magnetic latch secures against accidental opens. Black anodized finish resists fingerprints and ESD discharge.

Optical and Environmental Ratings

Effective modal bandwidth of 4700 MHz·km at 850 nm for 100G SR4 support. Temperature stability from -5°C to 70°C, with 95% humidity tolerance. Flame-retardant ABS components meet UL 94 V-0. For LC port standards, consult IEC 61754-20 specifications.

Compliance and Testing Protocols

Adheres to TIA/EIA 568-C for structured cabling. Vibration-tested per Telcordia GR-63-CORE for seismic zones. Grounding kit includes M6 studs for rack bonding. Adapter pull-out force exceeds 25N, ensuring vibration-proof retention.
