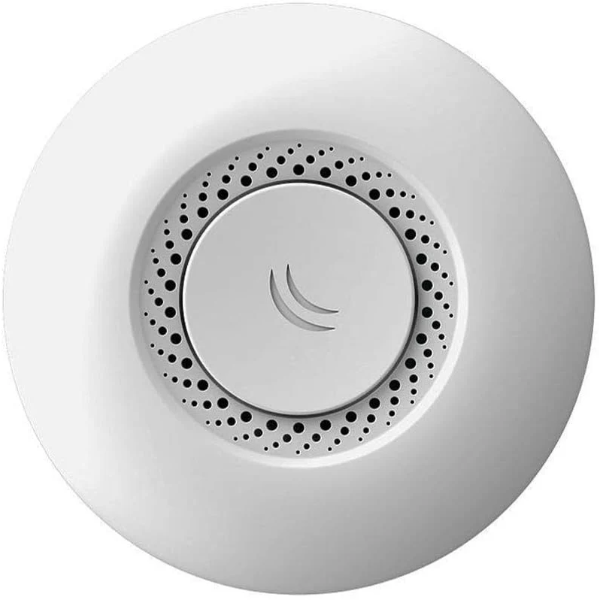

MikroTik RouterBOARD cAP-2nD Ceiling Access Point

The MikroTik RouterBOARD cAP-2nD Ceiling Access Point is a sleek, high-performance 2.4GHz Wi-Fi solution for hospitality and enterprise environments. Featuring dual-chain Wi-Fi 4 and PoE-in support, it blends seamlessly into ceilings or walls. Available at Novatech Technologies, this access point integrates with CAPsMAN for centralized network management.

Why Choose MikroTik cAP-2nD Ceiling Access Point?

Discreet and Efficient Wi-Fi

The MikroTik cAP-2nD Ceiling Access Point delivers 300 Mbps throughput on 2.4GHz with dual-chain 802.11b/g/n support, ideal for small to medium spaces. Its inconspicuous design blends into environments like hotels and offices. Powered by PoE, it simplifies installation with a single cable for power and data. RouterOS and CAPsMAN enable centralized control of multiple APs.

• Fast Wi-Fi: 300 Mbps with dual-chain 2.4GHz.
• Discreet Design: Blends into ceilings or walls.
• Centralized Management: CAPsMAN for easy network control.

A limitation is its 2.4GHz-only operation, which may face interference in crowded Wi-Fi environments compared to dual-band options.

Use Cases for MikroTik cAP-2nD Ceiling Access Point

Hospitality Wi-Fi Solutions

The cAP-2nD is perfect for hotels, airports, and malls, providing reliable Wi-Fi for guests. Its ceiling-mount design ensures 360-degree coverage, while CAPsMAN simplifies management across multiple APs. Pair it with HP’s Series 5 monitors for network dashboards in hospitality settings.

Small Office Wireless

In small offices, the cAP-2nD delivers stable Wi-Fi for employees and devices. Its PoE support reduces cabling needs, and RouterOS enables VLANs for secure guest networks. Integrate it with Ubiquiti’s UniFi switches for a hybrid wired-wireless setup, enhancing office connectivity.

Retail and Public Spaces

For retail stores or cafes, the cAP-2nD provides seamless Wi-Fi with minimal visual impact. Its 10/100 Ethernet port supports wired backhaul, and CAPsMAN allows remote configuration. However, high-density areas may require additional APs for optimal performance.

Compatibility with Network Systems

The cAP-2nD supports 802.11b/g/n Wi-Fi and integrates with MikroTik’s CAPsMAN for centralized management without a separate controller. Its 10/100 Ethernet port with PoE-in (802.3af/at) ensures compatibility with PoE switches. Use it with HP’s networking solutions, but note the Ethernet speed limits wired backhaul to 100 Mbps.

Technical Specifications of MikroTik cAP-2nD Ceiling Access Point

Hardware Overview

• CPU: QCA9533, single-core, 650 MHz
• RAM: 64 MB
• Storage: 16 MB Flash
• Wireless: 2.4GHz, dual-chain, 802.11b/g/n
• Max Data Rate: 300 Mbps
• Ethernet Port: 1 x 10/100 Mbps RJ45
• PoE: PoE-in (802.3af/at, 11-57V)
• Power Input: 24V DC (PoE or DC jack)
• Max Power Consumption: 4W
• Antenna Gain: 2 dBi
• Dimensions: 7.28 x 1.38 inches (185 x 35 mm, diameter x height)
• Weight: 0.44 lbs (200 g)
• Operating System: RouterOS, License Level 4
• Operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Certifications: CE, FCC, IC, EAC, ROHS

Package Contents

• cAP-2nD Ceiling Access Point
• PoE Injector
• 24V 0.38A Power Adapter
• Ceiling/Wall Mount
• Screws and Anchors
• Quick Start Guide

The compact, circular design ensures easy mounting, but ensure proper PoE input for reliable operation.

Benefits of MikroTik cAP-2nD Ceiling Access Point

Seamless Network Management

CAPsMAN integration allows centralized control of multiple MikroTik APs without a dedicated PC, running on any RouterOS device. RouterOS supports multiple SSIDs and VLANs for segmented networks. The PoE-in feature simplifies deployment in areas with limited power outlets.

• Centralized Control: CAPsMAN for multi-AP management.
• Secure Networks: VLANs and SSIDs for segmentation.
• Easy Installation: PoE-in reduces cabling complexity.

A drawback is the need for MikroTik expertise to configure advanced RouterOS features effectively.

Reliable Wireless Coverage

The dual-chain 2.4GHz radio provides 360-degree coverage, suitable for indoor spaces up to 1000 square feet. Its low power consumption ensures efficiency, though outdoor range may be limited due to 2.4GHz interference.

Trust and Support from Novatech Technologies

Purchasing the MikroTik cAP-2nD Ceiling Access Point from Novatech Technologies ensures a quality product with a one-year warranty against defects. Novatech Technologies provides expert support for RouterOS and CAPsMAN setup, delivering reliable Wi-Fi solutions for customers in Kenya.
