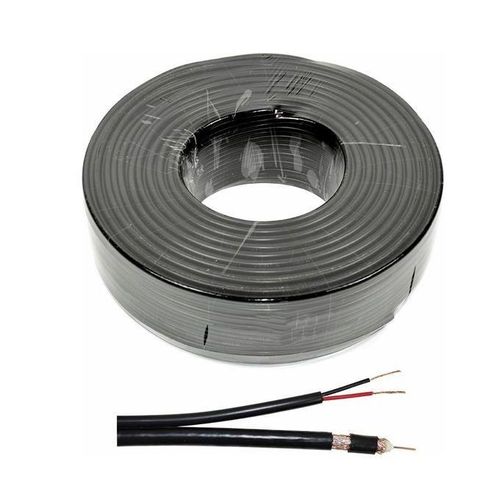

RG59 Coaxial Cable 100 Meter

RG59 coaxial cable 100 meter ensures superior 75 Ohm signal transmission for CCTV and video surveillance in Kenya. This premium 100-meter roll delivers clear analog video over long runs in security systems. Novatech Technologies stocks this reliable coaxial cable for installers seeking durable performance nationwide.

Security professionals value its flexibility for tight bends during installations. The construction minimizes interference in urban environments like Nairobi.

Use Cases and Compatibility

This cable excels in analog CCTV deployments across residential properties. Technicians connect bullet cameras to DVR units in homes for 24/7 monitoring. Small businesses install it for shop entrances and backrooms.

Offices use it to link dome cameras with multiplexers for multi-channel recording. Warehouses route it along ceilings to cover loading docks effectively. Schools deploy it for perimeter surveillance without signal dropouts.

The design supports baseband video up to 300 meters for 720×480 resolution. It handles AHD signals in hybrid systems with compatible DVRs. Pair it with BNC compression connectors for weatherproof seals on outdoor cameras.

In Kenyan climates, the PVC jacket withstands humidity and moderate heat. Indoor runs fit conduits or trunking alongside power lines. Outdoor applications require UV sleeving for direct exposure.

It integrates with Hikvision, Dahua, and generic analog recorders seamlessly. Use baluns for twisted-pair extensions in structured cabling. Test connections with tools like the 4 in 1 remote cable tester from our networking category.

For detailed coaxial standards, refer to Belden’s technical overview on RG59 cable specifications. SLAC provides engineering notes on coaxial cable terminations.

Technical Specifications

RG59 coaxial cable 100 meter meets MIL-C-17 and RG59/U standards for video use.

• Length: 100 meters continuous roll
• Impedance: 75 Ohms ±3
• Center Conductor: 20-23 AWG solid copper-clad steel, 0.58-0.81 mm diameter
• Dielectric: Solid polyethylene or foam PE, 3.66-3.80 mm diameter
• First Shield: Aluminum foil, 100% coverage
• Second Shield: Tinned copper braid, 90-95% coverage
• Outer Jacket: Black PVC, UV-stabilized, 6.0-6.15 mm OD
• Capacitance: 67 pF/m at 1 kHz
• Attenuation: 5.5 dB/100m at 5 MHz; 10.5 dB/100m at 100 MHz; 20 dB/100m at 700 MHz
• Velocity of Propagation: 66-82%
• DC Resistance: Conductor 40-50 Ohms/1000ft; Shield 3 Ohms/1000ft
• Operating Temperature: -30°C to +75°C
• Bend Radius: 4x cable diameter installation; 10x static
• Weight: Approximately 45-55 kg/km
• Standards: Compliant with EN 50290, NEC CM-rated, RoHS

These specs deliver low loss for CCTV frequencies below 1 GHz. Dual shielding rejects EMI from power cables and motors. For CommScope insights on coaxial cable types, see their product guide.

View desktops ideal for DVR hosting in our desktops category. Shop the full range at Novatech Technologies.

Why Trust Novatech

Novatech Technologies sources genuine RG59 coaxial cable 100 meter from certified manufacturers. The team offers local expertise for Kenyan installations. Every roll undergoes quality checks before shipping.

Purchases include a one-year warranty on defects plus 1-day DOA returns. Technical support via phone or email resolves setup issues fast. Nationwide delivery covers all counties with M-Pesa and cash-on-delivery options.

Customer testimonials highlight reliable stock and quick service. Pair with alarm cables like 12 core alarm cable for complete systems. Novatech simplifies tech procurement for businesses and homes.

This cable supports legacy TV antennas in multi-dwelling units. Gate operators use it for PTZ camera control signals. Farms install it for remote barn monitoring with minimal maintenance.

Expand setups with monitors from our monitors category. HDMI cables complement digital upgrades via networking.

Installers crimp BNC ends using standard tools for secure fits. The solid core eases precise stripping. Foam dielectric reduces weight for overhead pulls.

In high-rise buildings, it runs vertical shafts without amplifiers up to 150 meters per camera. Retail chains standardize on it for uniform wiring across branches.

The black jacket blends with conduits for discreet aesthetics. Flame-retardant materials meet safety codes in commercial spaces.

Professionals cut custom lengths from the 100-meter roll to minimize waste. Splicing kits join sections for repairs if needed.

Kenyan contractors pair it with 4G routers for hybrid IP-analog systems. Boosters extend range in large compounds.

Quality shielding preserves color fidelity in NTSC/PAL formats. Low capacitance ensures sharp edges on motion feeds.

For labs, it carries RF test signals reliably. Museums secure artifacts with hidden runs.

Novatech stocks complementary BNC connectors and testers separately. Bulk buys qualify for discounts on large projects.

This investment yields years of stable surveillance footage.
