RJ11 Connector

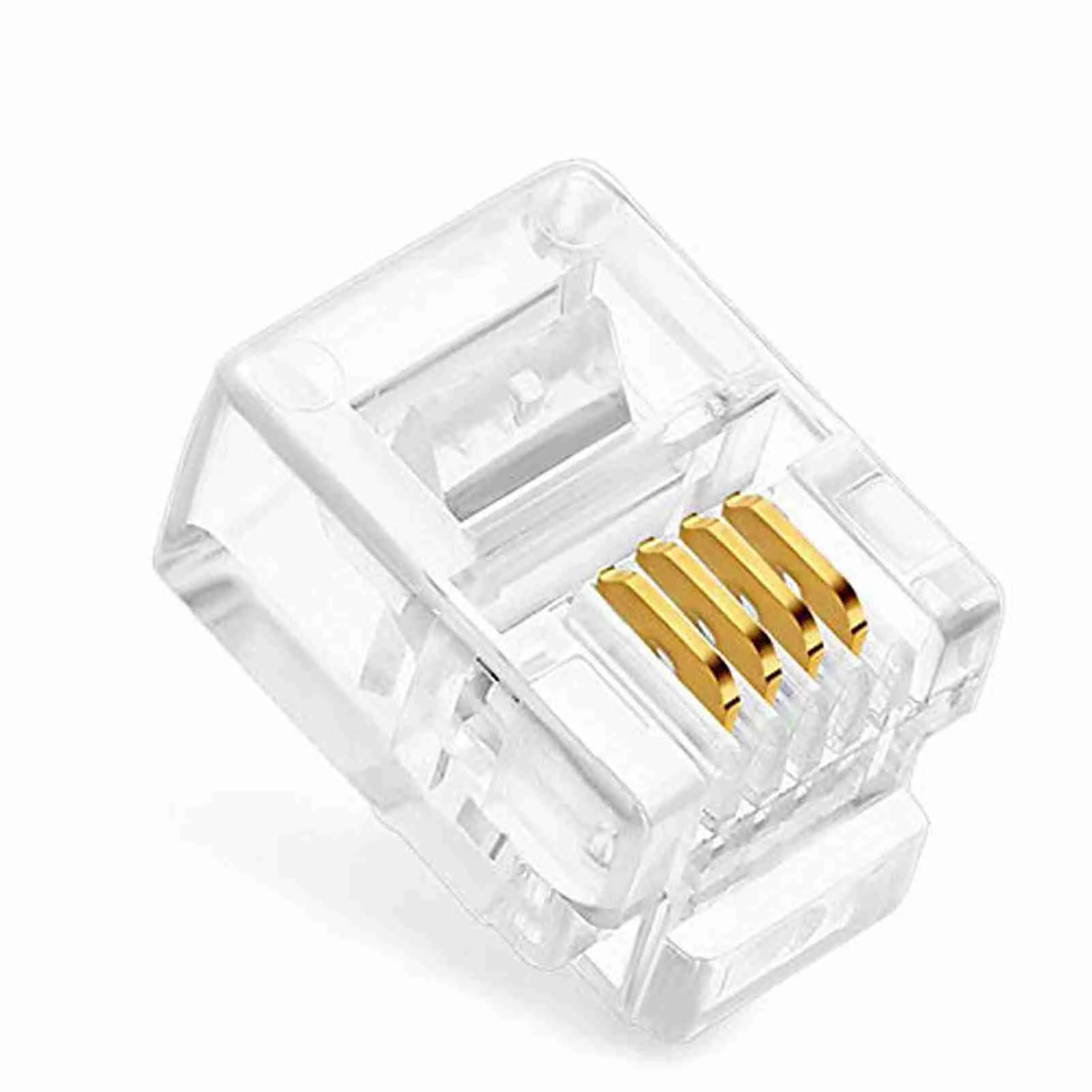

Discover the RJ11 Connector, a standard modular plug for telephone and low-voltage wiring in homes and offices. This 6P2C or 6P4C connector ensures reliable voice and data connections, ideal for terminating phone lines and low-speed networks.

Detailed Use Cases and Compatibility

Residential Phone Wiring

Use this connector to terminate phone lines for landline installations in homes. It supports analog calls and DSL modems for internet access. Compatible with Cat 5e cables for voice drops. Homeowners connect fax machines and cordless phones seamlessly.

The plastic housing fits standard crimping tools. It pairs with APKR 1 Ports Face Plate for wall outlets. Families maintain clear conversations without static.

For residential wiring tips, explore Consumer Technology Association.

This connector fits our networking category for voice setups.

Office VoIP Extensions

Crimp this connector onto Cat 6 UTP cables for VoIP phone drops in cubicles. It handles digital voice signals up to 100 MHz. Works with Siemon Cat 6 UTP Pure Copper Ethernet Cable 305M. Admins extend PBX systems affordably.

The gold-plated contacts reduce noise for crystal-clear calls. It integrates with APKR 2 Ports Face Plate for dual voice/data ports. Offices support remote work with reliable lines.

Browse our computer accessories category for crimpers.

Small Business Fax Lines

Assemble patch cords with this connector for fax machines and modems in retail back offices. It ensures error-free data transmission for receipts. Compatible with low-voltage boxes from Leviton. Owners send documents without interruptions.

The 6P4C configuration supports 2 or 4 wires. It withstands frequent plugging in busy environments. Businesses comply with fax regulations. Operations run smoothly with dependable connections.

Review business telephony at Federal Communications Commission.

Home Security Phone Lines

Terminate alarm system lines with this connector for monitoring services in residences. It connects control panels to phone jacks for alerts. Pairs with surface mounts from Arlington. Security firms install quickly for clients.

The durable build resists environmental stress. It supports DTMF tones for interactive systems. Homeowners receive timely notifications. Properties stay protected with secure wiring.

Technical Specifications

Connector Design

• Type: RJ11 6P2C/6P4C for phone and low-voltage
• Material: Polycarbonate housing, 15-micron gold-plated brass contacts
• Conductors: Fits 24-28 AWG solid or stranded copper
• Wiring: USOC or T568-B compliant for voice
• Certifications: Meets ANSI/TIA-968 for telecom

The two-prong contact secures wires tightly. Transparent body aids alignment. UL 94 V-0 rating for flame safety.

Consult design at International Organization for Standardization.

Explore our desktops category for VoIP phones.

Performance Metrics

• Bandwidth: Up to 100 MHz for voice/DSL
• Insertion Loss: <0.3 dB at 1 MHz
• Return Loss: >18 dB for signal integrity
• Contact Resistance: <30 mΩ for clear audio
• Environment: -20°C to 70°C, 5-95% humidity

It supports analog POTS lines and basic DSL. Crosstalk rejection >35 dB. Durability 500+ mating cycles.

Installation Features

• Termination: Crimp with RJ11 tools
• Cable Fit: Accepts 4-6 mm jacket diameters
• Retention: 15 pounds pull force
• Compliance: RoHS for environmental safety
• Boot: Strain relief for bends

Crimping finishes in 1 minute with guides. Wire pairs maintain to 0.3 cm of contacts. It fits APKR face plates for outlets.

For installation, visit BICSI.

Build Durability

Brass contacts resist corrosion. Gold plating prevents oxidation. The plug withstands 30 pounds shear force. Insulation displacement for gas-tight seals.
