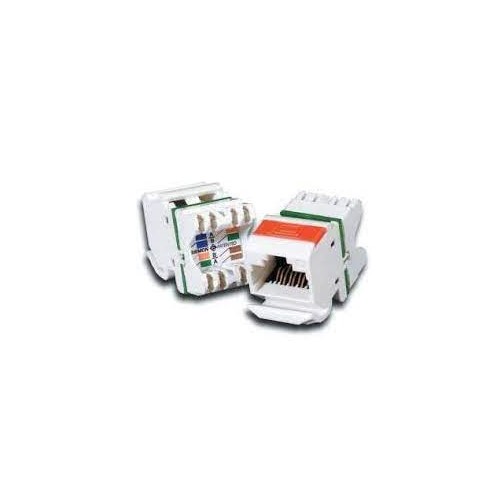

Siemon Cat 6 Modules

The Siemon Cat 6 Modules deliver high-performance networking connectivity for modern data infrastructures. These shielded RJ45 modules support up to 250 MHz bandwidth for reliable Gigabit Ethernet transmission. Ideal for enterprise cabling and office setups, they ensure future-proof performance in demanding environments.

Detailed Use Cases and Compatibility

Enterprise Network Deployments

IT managers install these modules in server rooms for backbone connections. They handle high-density patching efficiently. Data centers use them for switch-to-device links. The shielded design minimizes crosstalk in dense configurations.

Businesses benefit from quick reconfiguration during expansions. These modules support PoE applications for powered devices. Compatibility with fiber optics extends reach capabilities. This setup optimizes overall network throughput.

Office and Commercial Applications

Corporate offices deploy them in wall outlets for desktop connectivity. Employees access shared resources without latency issues. Conference rooms integrate them for AV distribution. The modules withstand daily plug-unplug cycles reliably.

Hotels apply them in guest room Ethernet ports. Guests enjoy stable internet without Wi-Fi interference. Retail spaces use them for POS systems. These installations enhance customer experiences seamlessly.

Compatibility and System Integration

Siemon Cat 6 Modules fit MAX and Z-MAX modular systems. They comply with ISO/IEC 11801 standards for Category 6 cabling. Pair with patch panels for organized terminations. Use in copper-based LANs up to 100 meters.

Integrate with networking equipment from Novatech for complete solutions. Backward compatibility supports legacy Cat 5e networks. This versatility accommodates mixed-media environments.

Technical Specifications

Performance Characteristics

Bandwidth reaches 250 MHz for 1000BASE-T applications. Insertion loss stays below 22 dB at 100 MHz. Return loss exceeds 20 dB across frequencies. NEXT performance surpasses 44 dB at 100 MHz.

Construction Details

Housing uses high-impact thermoplastic for durability. Gold-plated contacts ensure low resistance connections. Shielding employs metalized foil for EMI protection. IDC terminations accept 23-24 AWG solid cable.

Operating temperature ranges from -40°C to 60°C. Humidity tolerance up to 95% non-condensing. Flame rating meets UL 94 V-0 standards.

Physical Dimensions

Module size follows T568A/B wiring schemes. Height measures 20.3 mm, width 14.8 mm, depth 35.6 mm. Weight is 10 grams per module. For cabling standards, refer to TIA/EIA-568 specifications.

Supports 110 and Krone tool terminations.

Advanced Features

Color-coded labels aid installation accuracy. Integrated dust caps protect unused ports. Exceeds ANSI/TIA-568-C.2 performance requirements. PS_CR and PS_ACR metrics ensure alien crosstalk resistance.

Why Trust Novatech for Siemon Cat 6 Modules

Novatech Technologies sources premium connectivity solutions with expert assistance. These modules carry a limited lifetime warranty from the manufacturer. Coverage includes performance guarantees and defect protection. Bulk purchases qualify for enhanced support packages.

Network specialists offer free design consultations. Access 24/7 technical help for deployment issues. Installation guides and videos facilitate quick setups. Visit Novatech Technologies for comprehensive services.

Rigorous testing verifies compliance pre-shipment. Siemon partnerships deliver authentic components. This dedication ensures operational excellence.

Installation and Termination Tips

Strip cable jackets to 50 mm for clean IDC punches. Follow color codes for consistent wiring. Use impact tools for secure connections. Test links with certification testers post-installation.

Professional cabling crews handle large projects. Novatech provides certified technicians on request. Maintain bend radii during routing to preserve integrity.

Complementary Networking Components

Enhance systems with matching patch cords. Add fiber modules for hybrid setups. These additions support scalable architectures.

Explore computer accessories at Novatech for endpoint devices. For module innovations, see Belden’s connectivity solutions.

Modular designs enable easy upgrades.

Maintenance Practices

Inspect terminations annually for corrosion signs. Clean contacts with isopropyl alcohol sparingly. Recertify links after modifications. Document changes for audit trails.

Monitoring software detects performance drifts early. Novatech support troubleshoots connectivity faults swiftly. Routine checks sustain peak efficiency.

For management stations, view desktops. Review CommScope’s cabling best practices.

Enduring Performance of Siemon Cat 6 Modules

These modules support evolving network demands reliably. Superior shielding reduces interference over time. Lifetime warranty underscores quality commitment. Select them for sustained connectivity.
