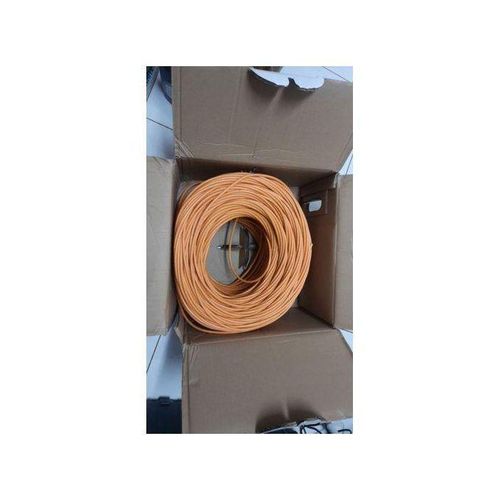

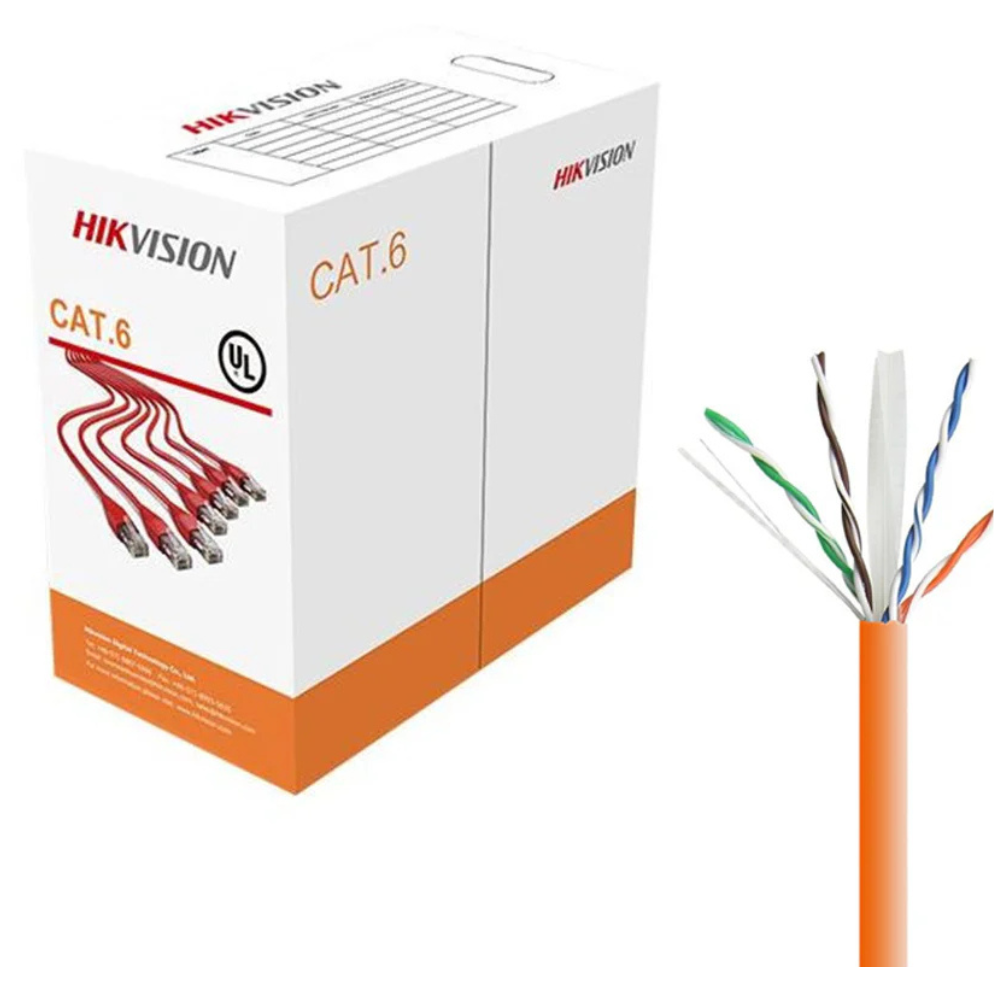

Hikvision DS-1LN6UZC0 Orange 305m CAT6 Cable

The Hikvision DS-1LN6UZC0 Orange 305m CAT6 Cable provides dependable high-speed networking for structured cabling systems. This unshielded twisted pair cable supports Gigabit Ethernet reliably. The bright orange PVC jacket improves visibility and organization. The 305-meter reel suits large-scale installations in offices, data centers, and surveillance environments.

Explore Hikvision DS-1LN6UZC0 Orange 305m CAT6 Cable Features

CAT6 specification meets TIA/EIA-568-C.2 requirements. Bandwidth reaches 250 MHz for high-performance applications.

Pure solid copper conductors deliver excellent signal quality. Four twisted pairs reduce crosstalk effectively.

23 AWG gauge minimizes attenuation over distance. U/UTP design keeps the cable flexible and lightweight.

Flame-retardant PVC jacket enhances safety in buildings. Rip cord facilitates easy outer jacket removal.

Sequential length marking printed on the cable simplifies accurate cutting and measurement.

Practical Applications of Hikvision DS-1LN6UZC0 Orange 305m CAT6 Cable

Office buildings wire workstations for fast Ethernet connections. Employees experience quick file transfers and internet access.

Surveillance networks connect IP cameras to recorders efficiently. High bandwidth supports multiple high-definition streams.

Data centers link servers and switches over long distances. Signal integrity remains strong throughout the run.

Home networks support smart devices and entertainment systems. Gigabit speeds enable smooth 4K streaming.

Educational institutions equip computer labs and classrooms. Students access online resources without delays.

This cable works well with networking equipment.

Compatibility Details for Hikvision DS-1LN6UZC0 Orange 305m CAT6 Cable

It supports 10BASE-T, 100BASE-TX, and 1000BASE-T standards. RJ45 connectors terminate using standard tools.

Backward compatibility with CAT5e and CAT5 installations. Suitable for PoE applications up to IEEE 802.3at.

Horizontal cabling meets structured wiring requirements. Maximum length of 100 meters per segment.

Compatible with most switches, routers, patch panels, and wall plates. Orange color aids in cable identification.

No special adapters needed for typical deployments. Meets TIA/EIA and ISO/IEC cabling standards.

For detailed technical data, refer to the official resource at Hikvision.

Technical Specifications

• Product Model: DS-1LN6UZC0(O-STD)
• Cable Category: CAT6
• Cable Type: U/UTP (Unshielded Twisted Pair)
• Conductor Material: Solid bare copper
• Conductor Gauge: 23 AWG
• Number of Pairs: 4 twisted pairs
• Bandwidth: 250 MHz
• Data Rate Support: 10/100/1000 Mbps
• Maximum Channel Length: 100 m (for Gigabit Ethernet)
• Jacket Material: PVC (Polyvinyl Chloride)
• Jacket Color: Orange
• Outer Diameter: Approximately 6.0–6.3 mm
• Rip Cord: Yes, included
• Length Marking: Sequential meters on jacket
• Flame Rating: CM or CMG (Communications)
• Installation Temperature: 0 °C to 50 °C
• Operating Temperature: -20 °C to 60 °C
• Certifications: CE, RoHS, TIA/EIA-568-C.2 compliant
• PoE Compatibility: IEEE 802.3af/at support
• Reel Length: 305 m (1000 ft)
• Reel Weight: Approximately 10–12 kg

Key Benefits of Hikvision DS-1LN6UZC0 Orange 305m CAT6 Cable

250 MHz bandwidth supports Gigabit and future applications. Pure copper conductors reduce signal degradation.

Orange jacket enhances visibility during installation. Solid core suits permanent in-wall cabling.

Flame-retardant material improves building safety. Rip cord and length marking speed up work.

Cost-effective choice for large projects. Reliable performance meets strict standards.

It pairs effectively with computer accessories and networking gear. Easy management for structured cabling.

Explore CAT6 cabling advantages in this overview at CNET.
