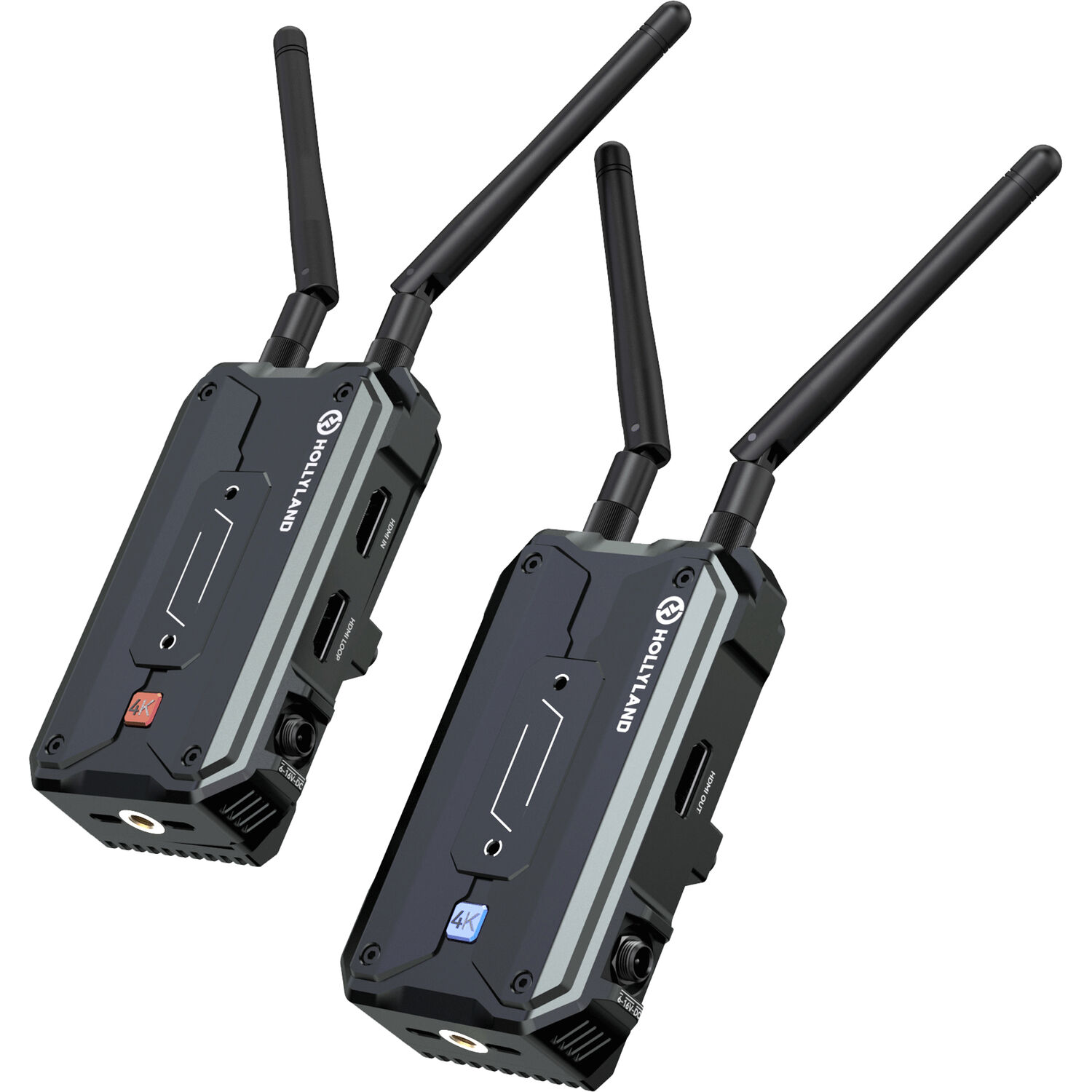

Hollyland Pyro H HDMI Wireless Transmission System

Discover the Hollyland Pyro H HDMI Wireless Transmission System, a professional HDMI-only solution for transmitting 4K30 video with ultra-low latency. This innovative kit supports up to four receivers for enhanced monitoring in collaborative production environments.

Versatile Use Cases for Hollyland Pyro H HDMI Wireless Transmission System

Filmmaking and Commercial Shoots

Directors capture detailed 4K footage in dynamic scenes. Attach the transmitter to mirrorless cameras for real-time feeds across sets. Teams monitor compositions on multiple receivers up to 1300 feet away. This setup allows instant adjustments during product ads. Clients preview clips via app without cable constraints. The dual-band stability ensures clear images in crowded locations.

Live Events and Broadcasts

Producers relay video from stages to control areas seamlessly. Transmit 1080p60 signals to four monitors for angle switching. Operators sync audio tracks with 60ms latency precision. Event crews cover conferences with reliable feeds. The broadcast mode handles interference through smart scanning. Viewers experience smooth coverage without drops.

Documentary and Field Productions

Videographers track subjects in remote terrains. Mount the lightweight transmitter on gimbals for fluid motion. Receivers feed tablets for on-site reviews during wildlife shoots. This flexibility captures authentic narratives over distances. Crews collaborate via HollyView app for four-device monitoring. The HDMI loop-out enables local camera checks.

For video transmission standards, explore SMPTE’s technical resources.

Compatibility and Integration Options

Camera and Monitoring Device Pairing

The transmitter accepts HDMI 1.4 from DSLRs like Canon EOS or Sony A series. It outputs to receivers with HDMI for monitors or switchers. Supports UVC plug-and-play for streaming to PCs via OBS. Pair up to four receivers in broadcast mode for multi-view. The system integrates with L-series batteries for extended field use. App monitoring works on iOS and Android for mobile oversight.

Production Kit Expansion

Enhance with external antennas for signal boosts in urban shoots. Novatech provides mounting accessories for rigs. Visit Novatech Technologies for complete bundles. For networking in post-production, check their networking category.

Workflow insights are available at CineD’s production guides.

Technical Specifications

Transmission and Video Capabilities

• Resolution: Up to 4K30 (3840×2160), 1080p60
• Latency: 60ms (HD mode), lower in Smooth mode
• Range: 1300ft (400m) LOS standard, 650ft in broadcast mode
• Frequency Bands: 2.4GHz and 5GHz dual-band with ADH
• Bit Rate: Up to 12Mbps (HD mode)
• Modulation: WiFiBroadcast technology

Interfaces and Connectivity

• Transmitter: HDMI input, HDMI loop-out, 2x RP-SMA antennas
• Receiver: HDMI output, 2x RP-SMA antennas
• Monitoring: Up to 4 receivers + 2 app devices (non-broadcast)
• Power: DC 6-16V, L-series battery, USB-C 5V/2A
• Consumption: Transmitter <8W, Receiver <5W

Physical and Environmental

• Dimensions: 115 x 65 x 32 mm per unit
• Weight: 223g per unit (without antennas)
• Display: Bright LCD touchscreen
• Operating Temperature: -10°C to 60°C
• Certifications: CE, FCC, RoHS
• Features: Smart channel scan, preset grouping, UVC streaming

Why Choose Novatech for Your Hollyland Pyro H HDMI Wireless Transmission System

Novatech Technologies supplies premium video transmission tools for Kenyan creators. They offer authentic Hollyland kits with a one-year manufacturer’s warranty on hardware and firmware. This covers repairs for latency issues at their Nairobi center. Specialists provide pairing assistance via phone or email within 24 hours. Deliveries reach Mombasa in 2-3 days for coastal shoots. Extended warranties add a second year for intensive productions. Novatech authenticates products to prevent fakes. After-sales includes channel scan tutorials and app setups. For editing workstations, browse their desktops category.

Transmission tech details appear in Newsshooter’s equipment reviews.
