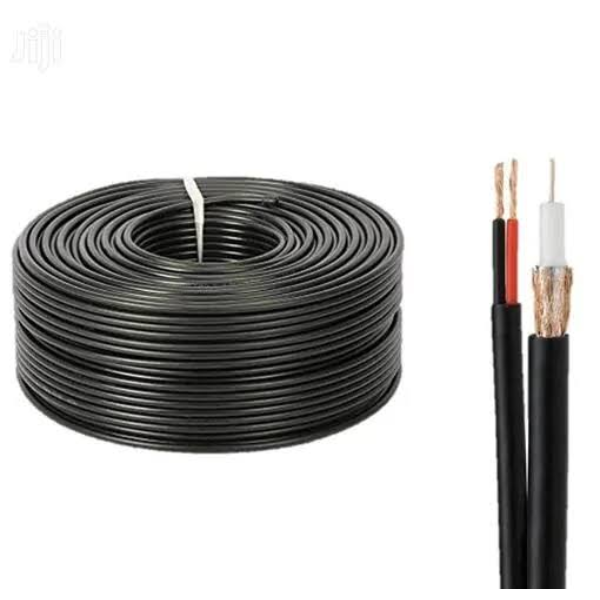

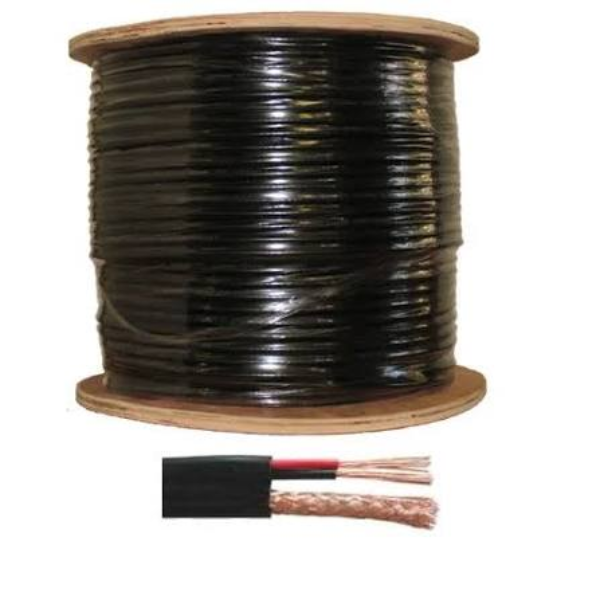

RG59 Cable With Power 200M

Discover the RG59 Cable With Power 200M, a durable coaxial solution for extended video and power transmission in surveillance applications. This 200-meter RG59 cable with integrated power conductors facilitates reliable analog CCTV systems, merging BNC signals with DC power for efficient, single-cable installations over greater distances.

Detailed Use Cases and Compatibility

Extended Property Surveillance

Utilize this cable to connect distant analog cameras to central recorders across expansive estates or farms. It maintains video integrity and supplies consistent 12V DC power without intermediate boosters for runs up to 200 meters. Compatible with standard analog cameras from brands like Dahua. Security teams oversee remote gates and barns with sharp, real-time visuals.

The combined design cuts installation time by eliminating separate power lines in rural settings. It adapts to baluns for hybrid digital conversions at endpoints. Operators configure motion alerts based on stable feeds. Property owners secure vast areas cost-effectively with minimal wiring complexity.

For extended CCTV guidelines, explore Security Industry Association.

This cable bolsters our networking category for long-haul setups.

Multi-Building Commercial Networks

Route this cable between structures in shopping centers for unified video monitoring. It delivers HD-TVI signals alongside power to lobby cameras from basement hubs. Works with multi-channel DVRs from Swann. Managers track foot traffic and incidents across floors without signal fading.

The robust shielding combats interference from HVAC systems in conduits. It supports daisy-chaining for phased expansions. Businesses integrate it with access controls for layered security. Facilities achieve compliance with retention policies through dependable recordings.

Browse our computer accessories category for balun adapters.

Warehouse and Storage Monitoring

Install this cable along high-bay racks in distribution centers for inventory oversight. It powers PTZ cameras and transmits pan-tilt commands over warehouse spans. Pairs with Hikvision analog series. Supervisors detect discrepancies in real time from control offices.

The PVC jacket withstands dust and minor impacts in industrial paths. It fits armored conduits for overhead drops. Operations teams reduce shrinkage through vigilant coverage. Logisticians optimize layouts with clear aisle views.

Review industrial video standards at International Electrotechnical Commission.

Campus Perimeter Defense

Deploy this cable around school grounds to link boundary sensors to security rooms. It carries multiplexed video from multiple points with steady DC supply. Compatible with Pelco analog systems. Administrators protect playgrounds and parking lots proactively.

Buried or elevated routing options suit landscaped areas. The power integration powers IR illuminators for night vision. Campuses enhance safety protocols with archived footage. Staff respond to alerts with accurate context.

Technical Specifications

Integrated Build Details

This RG59 cable incorporates a solid bare copper center at 22 AWG for reduced attenuation in video paths up to 200 meters. Bonded foam polyethylene dielectric achieves 78% velocity for precise timing. Double aluminum foil and 95% copper braid yield 110 dB shielding against noise. The dual 16 AWG power conductors enable 500W handling at low voltages.

Parallel power lines include insulation for cross-talk isolation. The black PVC sheath diameters 7.0 mm for conduit compatibility. Ripcord and footage legends streamline field preparation. Adherence to UL 444 and NEC Article 800 validates structured use.

Consult coaxial integration at Society of Cable Telecommunications Engineers.

Explore our desktops category for DVR workstations.

Video and Power Metrics

It preserves PAL/NTSC signals with under 18 dB loss at 6 MHz over full length. DC voltage drop limits to 3V at 2A load for camera stability. Capacitance caps at 55 pF/m for 75-ohm matching. Temperature tolerance spans -30°C to 80°C for attic or exterior exposures.

Shield transfer impedance stays below 20 mOhm/m at 100 MHz. Power pair resistance measures 0.01 ohms per meter. These ensure ghost-free images in multiplexed systems. Analog HD support extends to 1080p equivalents.

Handling and Safety Protocols

Bend radius requires 12x diameter to protect braid continuity. Tensile capacity supports 70 pounds in vertical pulls. Delivered on 200-meter drums for site efficiency. It satisfies CMX ratings for outdoor horizontal applications.

F-type or BNC compression fittings secure video ends. Power terminals use insulated rings for junction boxes. Installers sweep frequencies post-termination for verification. Shield grounding mitigates ground loop hum effectively.

For safety protocols, visit BICSI.

Longevity and Protection Features

Copper purity combats signal drift over decades. Braid adhesion prevents separation under flex. Low-halogen variants reduce smoke in fires. The assembly resists 600+ environmental exposures intact.

Gel-infused dielectric blocks humidity ingress. Impact rating absorbs 5J strikes without dents. Projected durability hits 20 years in buried conduits. Certifications encompass RoHS and ETL for global assurance.

Why Trust Novatech for Your Extended Cabling

At Novatech Technologies, we validate cables like the RG59 Cable With Power 200M using time-domain reflectometers for fault isolation. Our portfolio highlights reach and unification for surveillance evolution. We align with precision manufacturers for spec fidelity.

Drums carry serialized test data for confidence. Our experts furnish drop calculators and impedance charts. Clients attend sessions on analog-to-IP migrations. We architect pathways that anticipate growth.

This cable extends surveillance horizons. Sync with HP Series 5 23.8-inch FHD Monitor for review screens. Our printers category outputs incident logs.
