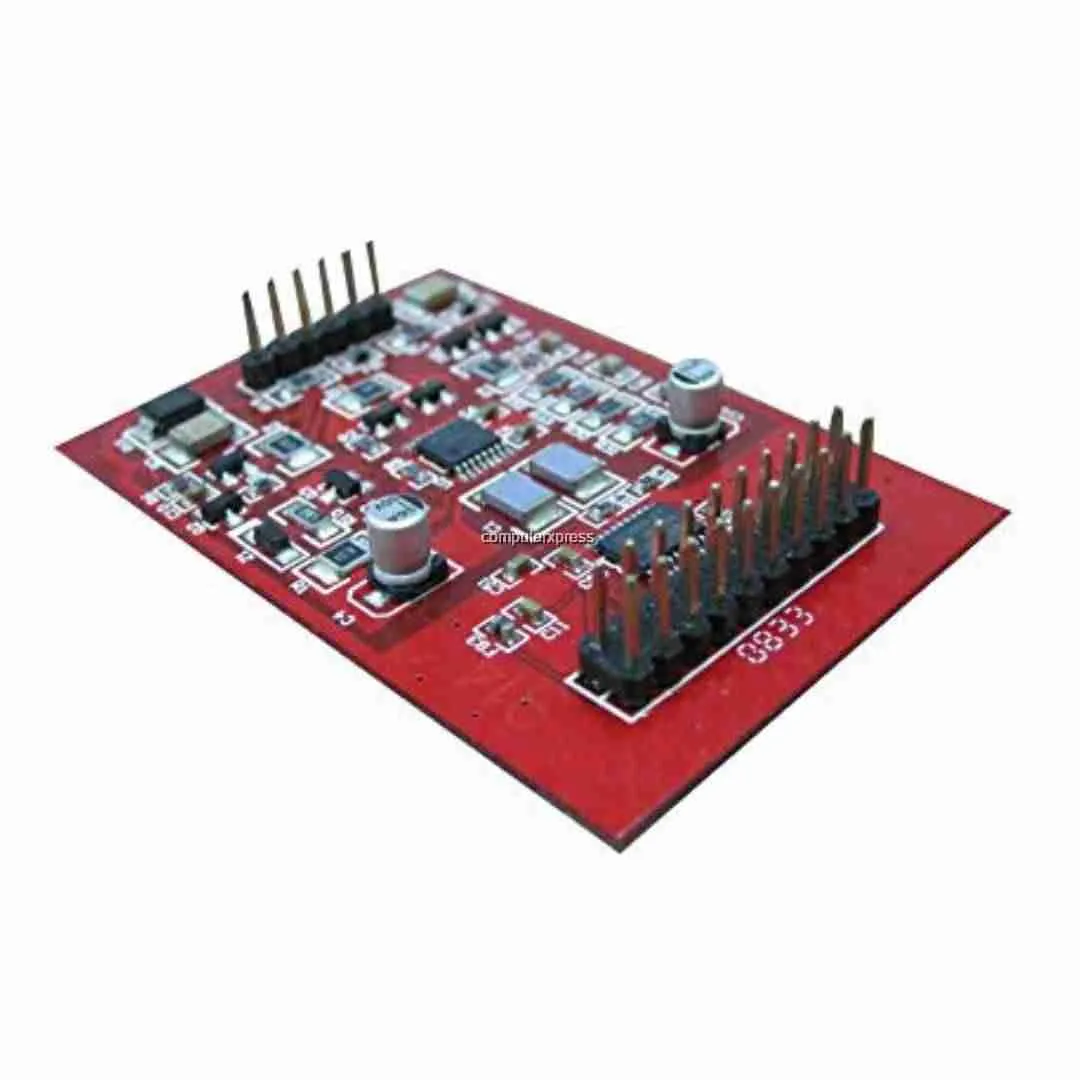

Yeastar O2 Module 2FXO YST-O2

The Yeastar O2 Module 2FXO YST-O2 serves as an essential expansion for Yeastar VoIP systems, enabling seamless integration of analog lines. This module adds two FXO ports to compatible gateways and PBX units, facilitating direct connection to PSTN networks. Organizations benefit from enhanced telephony capabilities without complex overhauls.

Detailed Use Cases for Yeastar O2 Module 2FXO YST-O2

Expanding Analog Connectivity in Small Offices

Small businesses often rely on existing analog lines for cost reasons. The Yeastar O2 Module 2FXO YST-O2 installs into Yeastar TG series gateways, adding two FXO ports for incoming calls. This setup allows reception of external calls via traditional phone lines alongside VoIP. Staff handle client inquiries efficiently, blending old and new tech.

Hybrid Telephony for Retail Environments

Retail outlets face high call volumes during peak hours. By slotting the module into a Yeastar P-Series PBX, managers route PSTN calls to IP extensions. It supports failover mechanisms, ensuring communication continuity during internet outages. This reliability boosts customer satisfaction and operational flow.

Integration in Educational Institutions

Schools and universities use analog systems for emergency lines. The Yeastar O2 Module 2FXO YST-O2 expands S-Series PBX units, connecting to campus phone lines. Administrators manage announcements and parent calls through unified platforms. It scales with growing enrollment without full system replacements.

For more on Yeastar-compatible PBX options, visit Novatech Technologies’ desktops category to explore supporting hardware.

Compatibility of Yeastar O2 Module 2FXO YST-O2

Seamless Fit with Yeastar Ecosystems

The Yeastar O2 Module 2FXO YST-O2 designs specifically for Yeastar hardware, ensuring plug-and-play installation. It fits TG200, TG400, and TG800 gateways, expanding FXO capacity by two ports each. Users add modules without downtime, maintaining service levels.

Support for Standard Analog Lines

This module handles standard PSTN lines with impedance matching for clear audio. It complies with loop-start signaling, common in Kenya and global regions. Integration with SIP trunks allows hybrid routing, directing calls based on cost or availability.

Third-Party PBX Compatibility

Beyond Yeastar, the module works with open-source systems like Asterisk. Developers configure it via E1/T1 interfaces if needed, though FXO focus remains primary. For detailed setup guides, refer to Yeastar’s technical documentation.

In call centers, it pairs with softphones for agent monitoring. Compatibility extends to IP-PBX software, enabling feature-rich extensions like call recording.

Technical Specifications of Yeastar O2 Module 2FXO YST-O2

Physical and Installation Details

The Yeastar O2 Module 2FXO YST-O2 measures 100 x 80 x 20 mm, weighing 0.2 kg for easy handling. It uses a mini-PCIe form factor, sliding into dedicated slots on host devices. No external power required; it draws from the gateway’s supply.

Port and Signaling Features

Two FXO ports use RJ11 connectors, supporting polarity reversal and caller ID detection. It operates on 48V DC for ring detection, with ring voltage up to 90V RMS. Impedance options include 600 Ohm for broad line compatibility.

Performance and Audio Quality

The module supports G.711 codec for uncompressed audio, ensuring toll-quality calls. It handles up to two simultaneous channels with echo cancellation. DTMF signaling via in-band or RFC2833 methods prevents misdials. For signaling standards, see ITU-T recommendations.

Environmental and Safety Standards

Operating temperature ranges from -10°C to 60°C, with 5-95% humidity tolerance. It meets CE, FCC, and UL certifications for electromagnetic compliance. LEDs indicate port status, aiding troubleshooting.

Advanced Applications of Yeastar O2 Module 2FXO YST-O2

Failover and Redundancy Strategies

In mission-critical setups, the Yeastar O2 Module 2FXO YST-O2 provides PSTN backup for VoIP failures. Configure auto-switch in PBX software to reroute calls seamlessly. This approach minimizes disruptions in healthcare or finance sectors.

Cost Optimization in Multi-Site Deployments

Multi-branch companies leverage the module for centralized management. Install in headquarter gateways to pool analog lines, reducing per-site costs. VoIP trunking handles inter-branch traffic efficiently. Explore related accessories at Novatech Technologies’ computer accessories.

Customization for VoIP Service Providers

Providers use the module to offer analog termination services. It supports bulk call routing with billing integration. Scalable design accommodates traffic spikes during promotions.

For expansion ideas, check RFC 2833 for DTMF.

Why Trust Novatech for Your Yeastar O2 Module 2FXO YST-O2

Novatech Technologies stands as Kenya’s premier distributor for Yeastar products, ensuring authenticity and performance. Every Yeastar O2 Module 2FXO YST-O2 arrives pre-tested for immediate deployment. We provide a two-year warranty covering hardware defects, with options for on-site repairs.

Our certified technicians offer 24/7 support via phone or remote access, resolving issues swiftly. Training sessions help teams maximize the module’s potential. As a Yealink partner, we guarantee compatibility. Shop confidently at Novatech Technologies. For VoIP gateways to pair with, see Novatech Technologies’ networking category.
