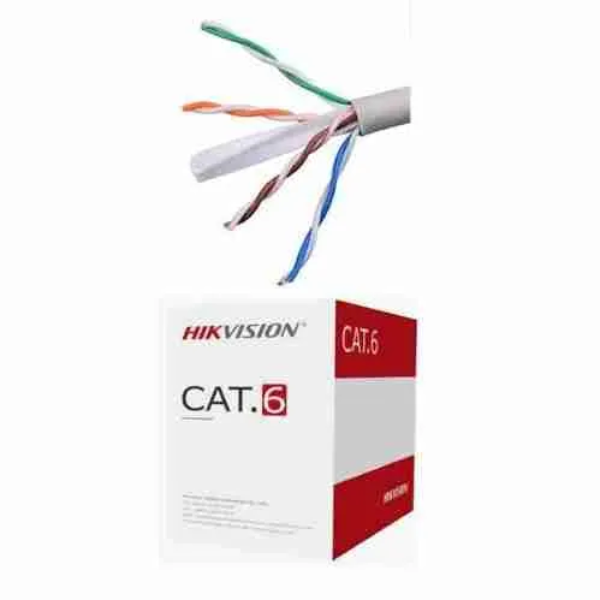

Hikvision Cat 6 Cable

Discover the Hikvision Cat 6 Cable, a high-performance Ethernet solution for seamless networking in surveillance and data environments. This unshielded twisted pair cable with pure copper conductors supports gigabit speeds up to 100 meters, ensuring reliable connectivity for modern IP systems.

Detailed Use Cases and Compatibility

IP Camera Networks

Integrate this cable into CCTV installations to connect high-resolution cameras to NVRs over long distances. It transmits uncompressed 4K video streams without packet loss in multi-camera setups. Compatible with Hikvision DS-2CD series IP cameras. Security operators monitor multiple feeds simultaneously with crisp clarity.

The flexible jacket allows easy routing through conduits in building walls. It powers PoE devices like dome cameras efficiently. Installers complete large-scale deployments faster with consistent signal quality. Facilities achieve comprehensive coverage for entrances and hallways.

For IP networking in security, explore Security Industry Association.

This cable pairs ideally with our networking category for full surveillance kits.

Office LAN Infrastructure

Wire office desktops and access points with this cable for robust internal networks. It handles high-bandwidth applications like video calls and file transfers smoothly. Works with PoE switches from Hikvision. Employees collaborate via cloud platforms without interruptions.

The UTP design reduces installation complexity in raised floors. It supports VLAN segmentation for guest networks. Businesses scale connectivity as teams expand. IT departments minimize troubleshooting in dynamic workspaces.

Browse our computer accessories category for patch panels.

Data Center Patch Runs

Use this cable for short interconnects between servers and storage arrays in racks. It delivers 10 Gbps performance for quick backups and virtual machine migrations. Pairs with Hikvision network video recorders. Data managers optimize throughput in compact environments.

The pure copper core ensures low latency in high-density bundles. It fits standard keystone jacks for modular upgrades. Centers handle growing storage demands effectively. Engineers integrate it into hybrid cloud architectures.

Review data transmission standards at Telecommunications Industry Association.

Retail Point-of-Sale Systems

Connect POS terminals to central servers with this cable for secure transaction processing. It carries encrypted data flows reliably in busy stores. Compatible with Hikvision access control systems. Retailers process payments swiftly during peak hours.

The flame-retardant sheath suits commercial plenum spaces. It integrates with inventory management software seamlessly. Merchants reduce downtime in checkout lines. Operations run efficiently with stable backend links.

Technical Specifications

Cable Composition

This Cat 6 cable employs solid bare copper conductors at 23 AWG for superior conductivity and minimal resistance. High-density polyethylene insulation preserves signal shape over distances. A PVC outer jacket provides flame resistance for indoor use. The diameter stands at 5.8 mm for straightforward pulling.

Unshielded twisted pairs follow precise lay lengths to eliminate crosstalk. Color-coded jackets aid identification in bundles. The ripcord enables clean stripping without tools. Compliance with ANSI/TIA-568-C.2 guarantees category performance.

Consult Ethernet cabling norms at Institute of Electrical and Electronics Engineers.

Explore our desktops category for networked workstations.

Performance Characteristics

It achieves 250 MHz bandwidth for 1 Gbps Ethernet up to 100 meters and 10 Gbps to 55 meters. Insertion loss remains under 20 dB per 100 meters at 100 MHz. Near-end crosstalk exceeds 40 dB for noise rejection. Operating range covers -20°C to 60°C for typical environments.

Power over Ethernet supports up to 30W for IP endpoints. Return loss measures over 18 dB across frequencies. The impedance holds steady at 100 ohms. These specs enable smooth VoIP and streaming in surveillance networks.

Installation Guidelines

Bend radius limits to four times the diameter to avoid pair distortion. Pull tension caps at 25 pounds for safe handling. Available in 305-meter reels for bulk projects. It meets CMR ratings for riser applications in multi-story buildings.

Sequential print legends track footage during deployment. Technicians terminate with RJ45 plugs for modular flexibility. The smooth exterior reduces friction in raceways. Proper untwist length at ends optimizes return loss.

For wiring protocols, visit BICSI.

Durability and Safety Features

Copper purity resists corrosion for extended service life. Flame propagation tests confirm low smoke output. RoHS materials exclude toxins for green builds. The cable withstands 1,000+ mating cycles reliably.

Moisture-resistant insulation suits occasional damp areas. Vibration tolerance fits light commercial vibrations. Projected lifespan reaches 20 years under normal loads. Certifications include UL for electrical safety.

Why Trust Novatech for Your Ethernet Solutions

At Novatech Technologies, we scrutinize cables like the Hikvision Cat 6 Cable via frequency domain reflectometry for flaw detection. Our collection prioritizes speed and compatibility for IP ecosystems. We source from authorized distributors to ensure authenticity.

Reels include performance certification labels for verification. Our support team delivers termination tutorials and layout planners. Customers benefit from compatibility assessments for mixed systems. We nurture connections that power secure operations.

This cable bolsters network foundations solidly. Link it with HP Series 5 23.8-inch FHD Monitor for monitoring stations. Our printers category connects print servers.

We provide ongoing audits to sustain optimal bandwidth. Our commitment secures data flows. Choose us for trustworthy cabling excellence.
